What is vacuum forming?

Vacuum forming is a thermoforming process where a thermoplastic sheet is heated to a pliable forming temperature, stretched over a mold, and shaped using vacuum pressure. It is one of the most cost-effective methods for producing large plastic parts with relatively low tooling costs compared to injection molding.

What is the difference between vacuum forming and thermoforming?

Thermoforming is the broad category of plastic forming processes that use heat. Vacuum forming is a specific type of thermoforming that uses vacuum pressure to shape heated plastic sheets over a mold. Other thermoforming methods include pressure forming and twin-sheet forming.

What materials can be vacuum formed?

Common vacuum forming materials include ABS, PMMA (acrylic), Polycarbonate (PC), TPO, HDPE, Polystyrene (PS), PET, Polypropylene (PP), PVC, and PLA.

What is heavy gauge vs light gauge thermoforming?

Heavy gauge thermoforming processes cut sheets typically 2-12mm thick for structural parts. Light gauge thermoforming uses thin roll-fed film under 2mm for high-volume packaging. Machinecraft manufactures machines for both.

What industries use vacuum forming machines?

Vacuum forming machines are used across automotive, aerospace, medical, packaging, sanitary, agriculture, signage, and many more industries.

What sizes of vacuum forming machines does Machinecraft manufacture?

Machinecraft manufactures custom vacuum forming machines ranging from 1000x1200mm forming area up to 6000x2200mm (XL).

What is a closed chamber vacuum forming machine?

A closed chamber vacuum forming machine features an air-sealed forming chamber that enables pre-blow bubble formation and zero sag control. This European-concept design is standard on all Machinecraft PF1-X Series machines.

What are the AM-V and AM-P thin gauge roll-fed forming machines?

The Machinecraft AM-V (vacuum forming) and AM-P (pressure forming) are continuous roll-fed forming machines designed for thin gauge packaging, medical trays, and deep draw containers.

The PF1-BL is Machinecraft's application-centric thermoforming machine purpose-built for pickup truck bedliner production. It is based on the proven PF1-X servo-driven platform with an extra-large forming area and deep-draw capability optimized specifically for bedliner geometry.

What forming area sizes are available?

The PF1-BL is available in forming areas from 2500×1500mm up to 3500×2000mm, covering all standard pickup truck bed sizes from mid-size (Hilux, Navara) to full-size (F-150, Ram 1500, Silverado). Custom sizes are available on request.

What is the maximum draw depth?

The PF1-BL supports draw depths up to 800–1000mm, which is critical for forming the deep sidewalls and wheel arch contours of full-size bedliners in a single forming cycle without thinning.

What materials can the PF1-BL process?

The PF1-BL is optimized for HDPE (the industry standard for bedliners) but also processes TPO, ABS, PP, and HMWPE. Sheet thickness typically ranges from 3–8mm depending on the application and vehicle model.

Can the PF1-BL produce liners for different truck models?

Yes. The servo-driven platform with quick tool change allows switching between different truck model molds efficiently. One PF1-BL machine can serve multiple vehicle platforms (e.g., Ford, Toyota, Isuzu, Mitsubishi) with minimal changeover time.

What production volume can the PF1-BL achieve?

Depending on the bedliner size and material thickness, typical cycle times are 3–5 minutes per liner. With an 8-hour shift, a single PF1-BL can produce 100–150 bedliners per day, scalable with additional shifts and automation.

Does the PF1-BL include an autoloader?

Yes, an automatic sheet loader is available as a standard option. The autoloader feeds pre-cut HDPE sheets from a stack, reducing manual handling and enabling semi-automated production with minimal operator intervention.

What is the lead time for a PF1-BL machine?

Standard lead time is 20–28 weeks from order confirmation, depending on the forming area size and configuration options. Contact sales@machinecraft.org for a detailed timeline.

Application-CentricBedliner Specialist

Built for
Bedliners.

The PF1-BL is Machinecraft's purpose-built thermoforming machine for pickup truck bedliner production. Based on the proven PF1-X servo-driven platform, it delivers the forming area, draw depth, and cycle consistency that OEM and aftermarket bedliner manufacturers demand — producing full-size drop-in liners in a single forming cycle.

3500mm

Max Forming Width

1000mm

Max Draw Depth

150/day

Production Rate

Request BL Quote See PF1-X Platform

Machinecraft factory with freshly formed HDPE bedliners in foreground and PF1-BL machine in background

Deep-drawn HDPE bedliner with Machinecraft XL-class machine in production facility

Overhead view of bedliner inside thermoforming machine with clamping frame visible

Deep draw vacuum forming machine configured for bedliner and large-part production

PF1-BL — Bedliner Production at Machinecraft Factory

The Product

Thermoformed Bedliners

Deep-drawn HDPE bedliners produced on the PF1-BL — from raw sheet to finished product ready for vehicle fitment. Each liner features precise contour fit, textured anti-slip surface, and consistent wall thickness.

Thermoformed HDPE bedliner for L200 pickup truck with tailgate protector

Drop-In Bedliner — L200 Fitment

Bedliner installed in pickup truck bed showing precise contour fit

Installed — Precise Contour Fit

Drop-in bedliner product showing textured surface and wheel arch detail

OEM-Grade Drop-In Liner

HDPE bedliner formed on Machinecraft PF1-XL machine

Deep-Drawn HDPE Bedliner

Machinecraft Bedliner Application

Bedliner case study — production quality thermoformed liner

Production-Quality Finish

Applications

What You Can Produce

The PF1-BL covers the full range of pickup truck bed protection products — from OEM drop-in liners to aftermarket accessories and heavy-duty commercial inserts.

OEM Drop-In Bedliners

HDPE4–6 mm

Full-size drop-in bedliners for Ford F-150, Toyota Hilux, Isuzu D-Max, Mitsubishi L200, Nissan Navara, and other popular pickup trucks. Deep-drawn in a single cycle with consistent wall thickness across complex 3D geometry.

Aftermarket Bed Protection

HDPE / TPO3–5 mm

Aftermarket bedliners and cargo liners for the truck accessories market. The PF1-BL produces liners with textured anti-slip surfaces, integrated tie-down points, and precise wheel arch contours that snap into place without drilling.

Tailgate & Cargo Accessories

ABS / PP3–4 mm

Tailgate protectors, over-rail liners, tonneau cover inner panels, and cargo management inserts. The machine's programmable forming profiles allow multiple SKUs on the same platform with quick tool changes.

Utility & Commercial Vehicles

HDPE / HMWPE5–8 mm

Heavy-duty bed inserts for commercial fleet vehicles, service trucks, and utility vehicles. Thicker gauge HMWPE for maximum impact and chemical resistance in demanding work environments.

Engineered for Bedliner Production

Deep-Draw Forming

Up to 1000mm draw depth with servo-controlled platen speed profiles. The PF1-BL produces full-depth bedliner sidewalls and wheel arch contours in a single forming cycle — no secondary bonding or welding required.

All-Electric Servo Drives

Programmable speed and force profiles ensure optimal sheet-to-mold contact during deep draws. Servo precision eliminates the thinning and blow-through issues common with hydraulic machines on bedliner geometry.

Consistent Wall Thickness

Zone-controlled heaters with sag detection maintain uniform sheet temperature across the full forming area. Critical for bedliners where thin spots lead to premature cracking under impact loads.

Quick Tool Change

Switch between different truck model molds in under 30 minutes. One PF1-BL machine can serve Ford, Toyota, Isuzu, Mitsubishi, and other platforms with minimal downtime between production runs.

Compatible Materials

HDPETPOABSPPHMWPEPE

Request PF1-BL Quote

Why Choose the PF1-BL?

Single-cycle deep-draw forming — no multi-piece bonding

Servo-driven precision eliminates thinning on complex geometry

100–150 bedliners per 8-hour shift

Quick tool change for multi-model production

Automatic sheet loader reduces manual handling

Zone-controlled heaters with sag detection

Based on proven PF1-X platform — 3rd generation technology

60–80% lower tooling cost vs injection moulding

Based on the PF1-X Platform

The PF1-BL shares the PF1-X's proven servo-driven architecture, universal clamping frame, and HMI control system. It adds bedliner-specific optimizations: extended draw depth, HDPE heating profiles, and production-line integration features for high-volume bedliner manufacturing.

PF1-X platform machine with autoloader — the base for PF1-BL

PF1-X Platform with Autoloader — Base Architecture for PF1-BL

Typical Specifications

The PF1-BL is configured to match your bedliner dimensions and production volume. Below are typical ranges — contact our team for a specification tailored to your truck models.

Parameter	Specification
Forming Area	2500×1500mm to 3500×2000mm
Max Draw Depth	800–1000mm
Sheet Thickness	3–8mm (HDPE standard: 4–6mm)
Heater Type	Ceramic / Quartz / Halogen (zone-controlled)
Heater Power	Up to 288 kW (model dependent)
Drive System	All-electric servo (platen + clamp frame)
Clamping Force	Up to 50 tons
Cycle Time	3–5 min per bedliner (material dependent)
Autoloader	Standard option — automatic sheet feeding
Tool Change	Quick-change system, <30 min changeover
Control System	Siemens HMI with recipe management
Vacuum System	High-flow pumps with surge tank
Lead Time	20–28 weeks from order confirmation

Specifications are typical ranges — each PF1-BL is configured to your specific bedliner dimensions

Video

See the PF1-BL in Action

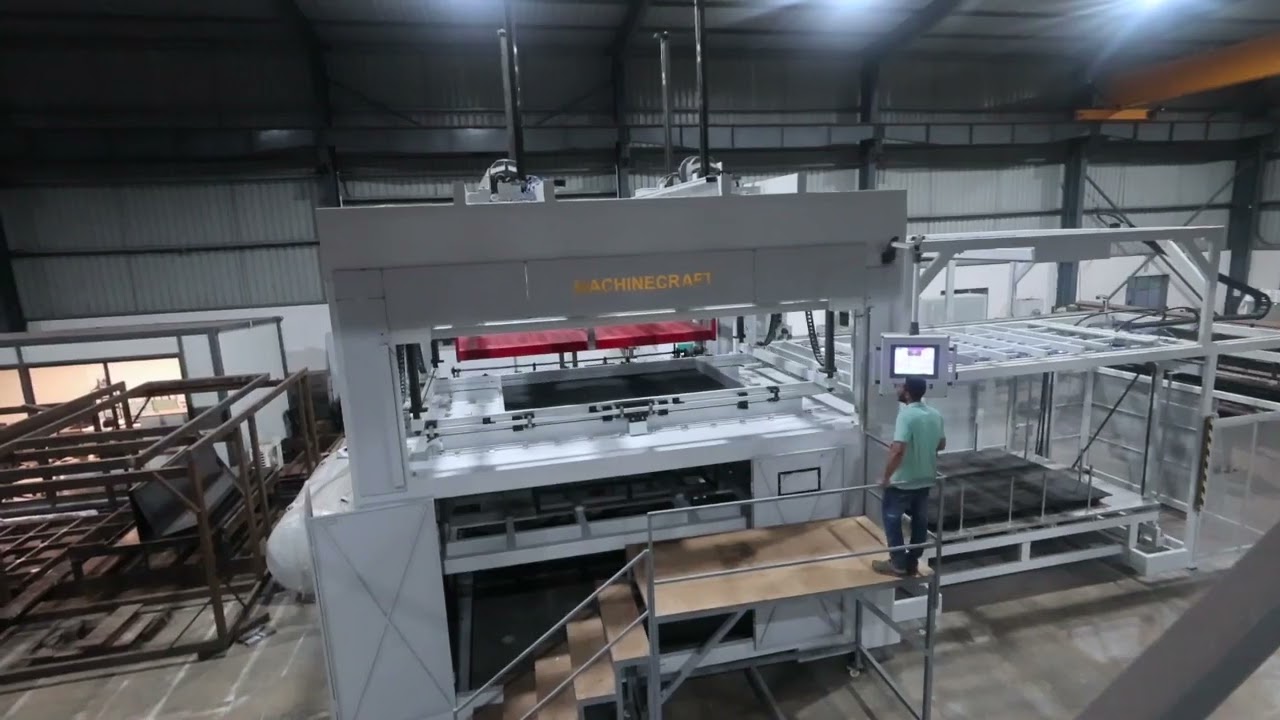

Watch deep-draw bedliner production on a Machinecraft machine — 3500×2000mm forming area with 1000mm draw depth.

Deep Draw Bedliner & SPA Machine — 3500×2000mm

Frequently Asked Questions

Ready to produce bedliners?

Our engineers will help you specify the right PF1-BL configuration for your truck models, production volume, and material requirements. From single-model startups to multi-platform OEM lines.

Get a Quote View Case Studies See PF1-X Platform

Gujarat Factory · Free Trial

Request a Forming Trial

Not sure if the PF1-BL Bedliner is right for your application? Bring your material to our factory in Ahmedabad and we'll form your actual parts — so you can see wall thickness, surface quality, and cycle time before you buy.

No cost — free forming trial for serious buyers
Your material, your part geometry, our machine
Full technical report: wall thickness, cycle time, material waste
Includes factory tour and engineering consultation
Available for all machine series

Book Your Forming Trial

Fill in your material and part details and we'll schedule a trial at our Gujarat factory.

Response within 24 hours · No commitment required

Built forBedliners.
