Thermoforming Machine Manufacturer Since 1976
Machinecraft Technologies is a 3rd generation family business and thermoforming machine manufacturer since 1976. Based in India with a factory in Umargam, Gujarat, we export custom automatic vacuum forming machines and thermoforming machines to 35+ countries across 6 continents. Every machine is custom-built to exact specifications using international components from Mitsubishi, SEW, Festo, and Busch/Becker. We manufacture heavy gauge thermoforming machines, light gauge thermoforming machines, roll-fed pressure forming machines, form-cut-stack machines, IMG thermoforming machines, and TOM method machines.

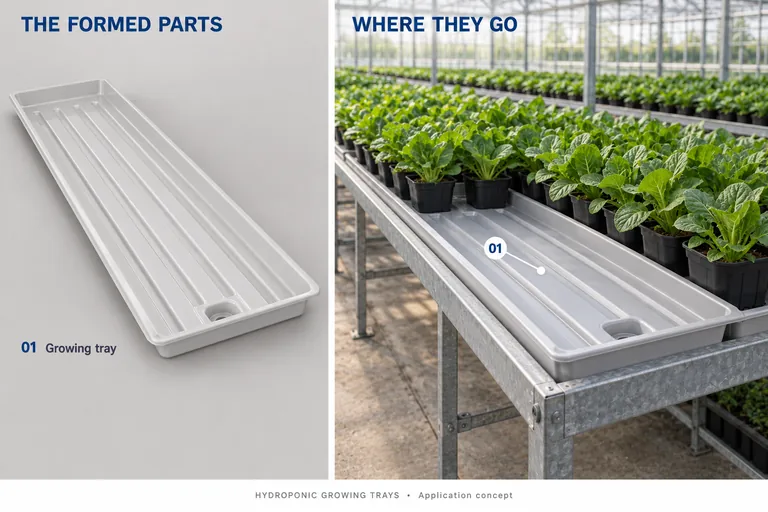

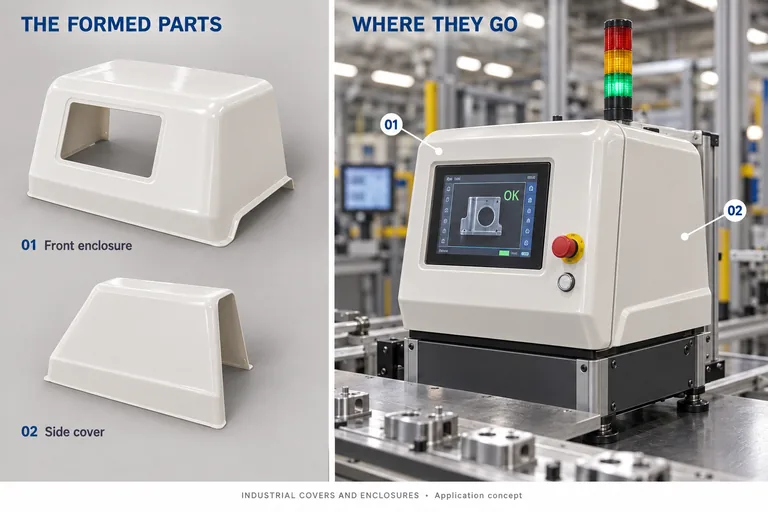

Machinecraft is a leading thermoforming machine manufacturer in India, competing with global brands like GEISS, ILLIG, MAAC Machinery, Formech, and WM Thermoforming. Our machines are used for packaging, automotive, medical, sanitary, agriculture, and industrial applications.
Our Machines

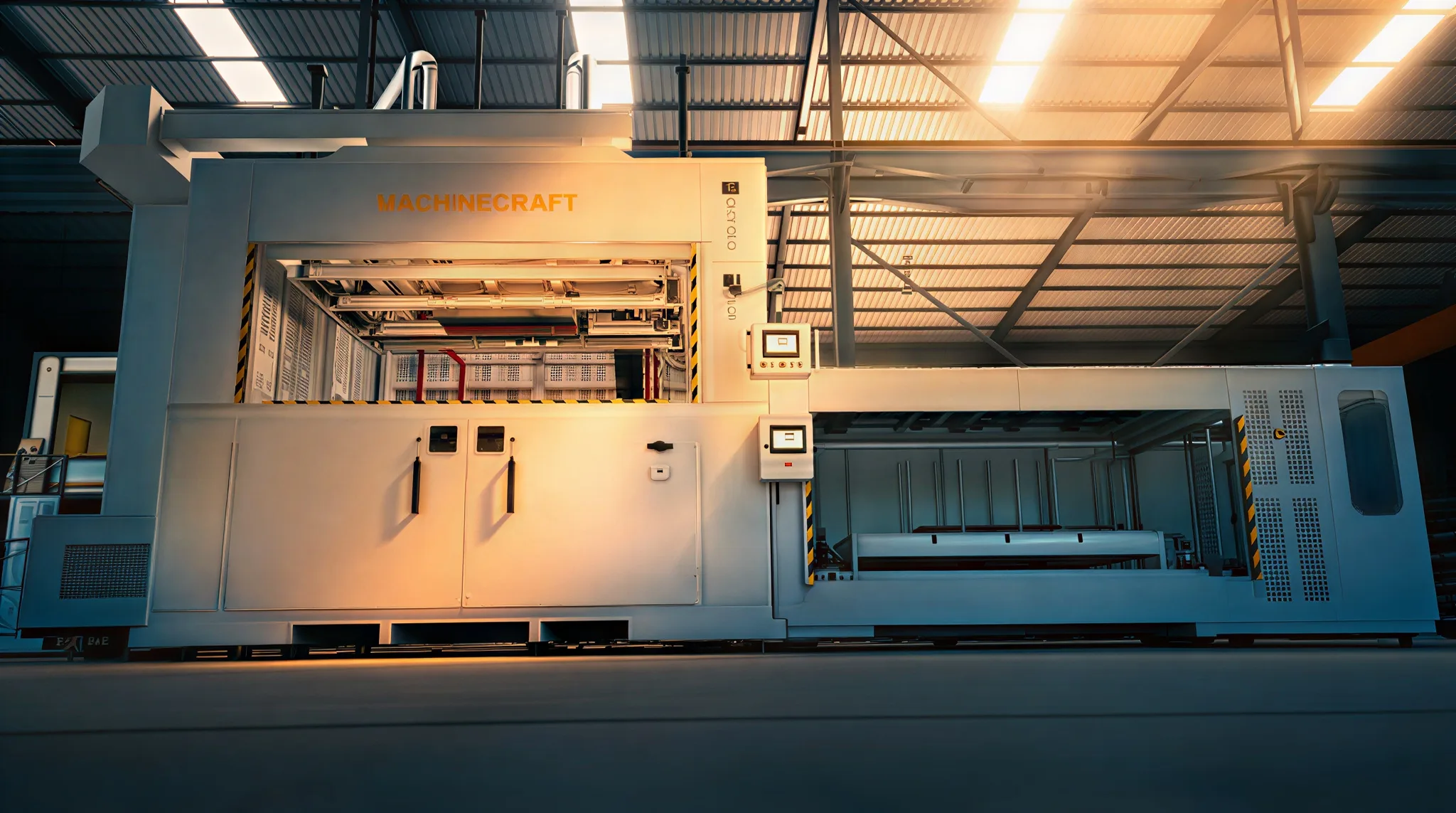

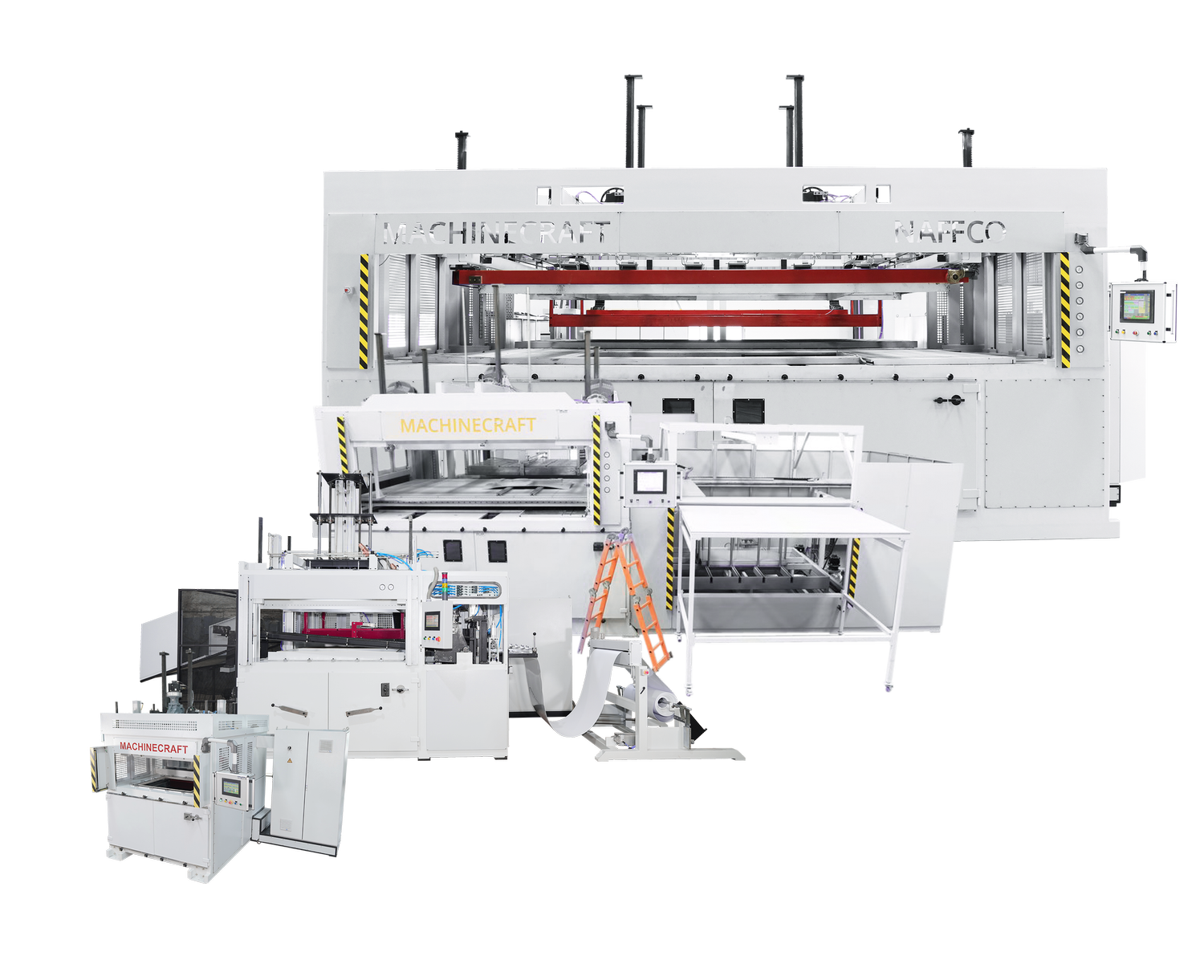

PF1-X Pro Series — Servo-Driven Vacuum Forming
Our flagship heavy gauge vacuum forming machine. Closed chamber design with pre-blow bubble and zero sag control. Forming areas from 1000x1200mm to 6000x2200mm. Sheet thickness: 2-12mm. Mitsubishi PLC controls with servo-driven clamping frames.

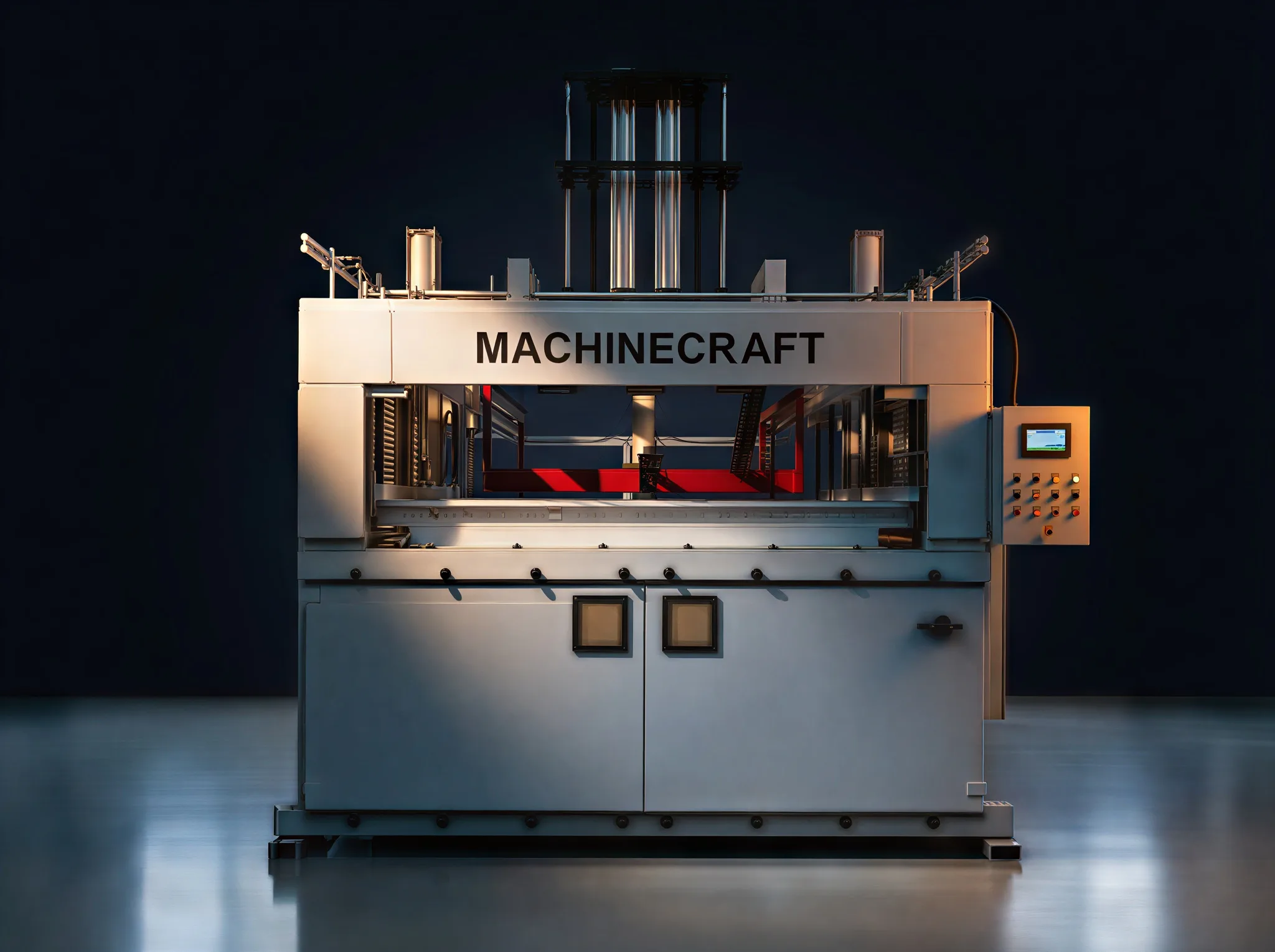

PF1-C Classic Series — Pneumatic Vacuum Forming
Cost-effective pneumatic vacuum forming machines for standard applications. Available in forming areas from 600x400mm to 3500x2500mm. Ideal for startups, prototyping, and medium-volume production.
PF1-R Series — Rotary Vacuum Forming
Multi-station rotary vacuum forming machines for high-volume production. 2-4 station configurations with continuous cycle operation. Sheet thickness: 2-12mm.

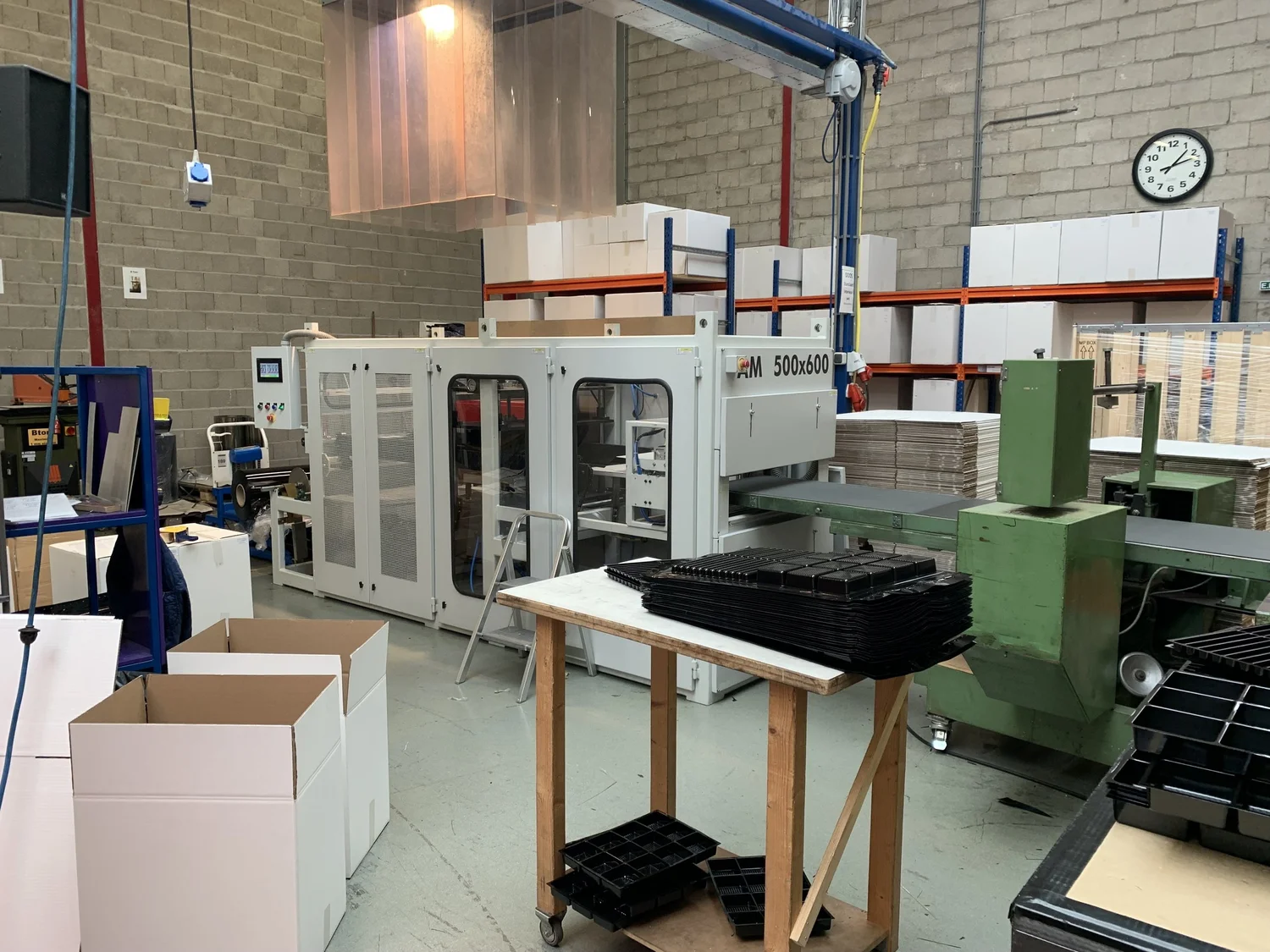

AM-V / AM-P — Thin Gauge Roll-Fed Forming
AM-V (vacuum forming) and AM-P (pressure forming) are continuous roll-fed forming machines for thin gauge packaging and medical trays. Servo-driven spike chain indexing with sandwich heating system.
UNO — Single-Station Compact Forming

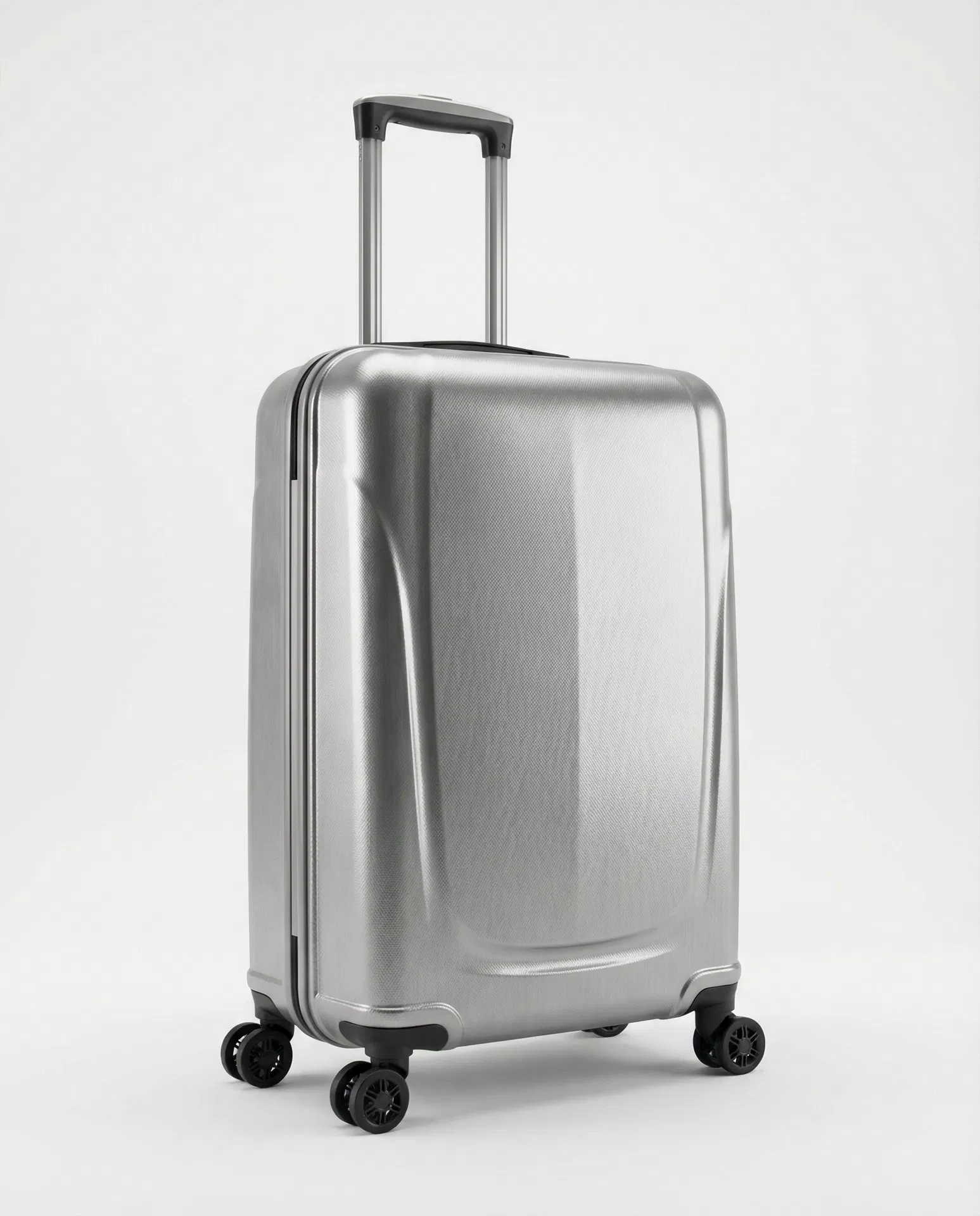

Single-station vacuum forming machine with single top-side heating oven. Ideal for luggage shells and versatile applications up to 4mm sheet thickness.

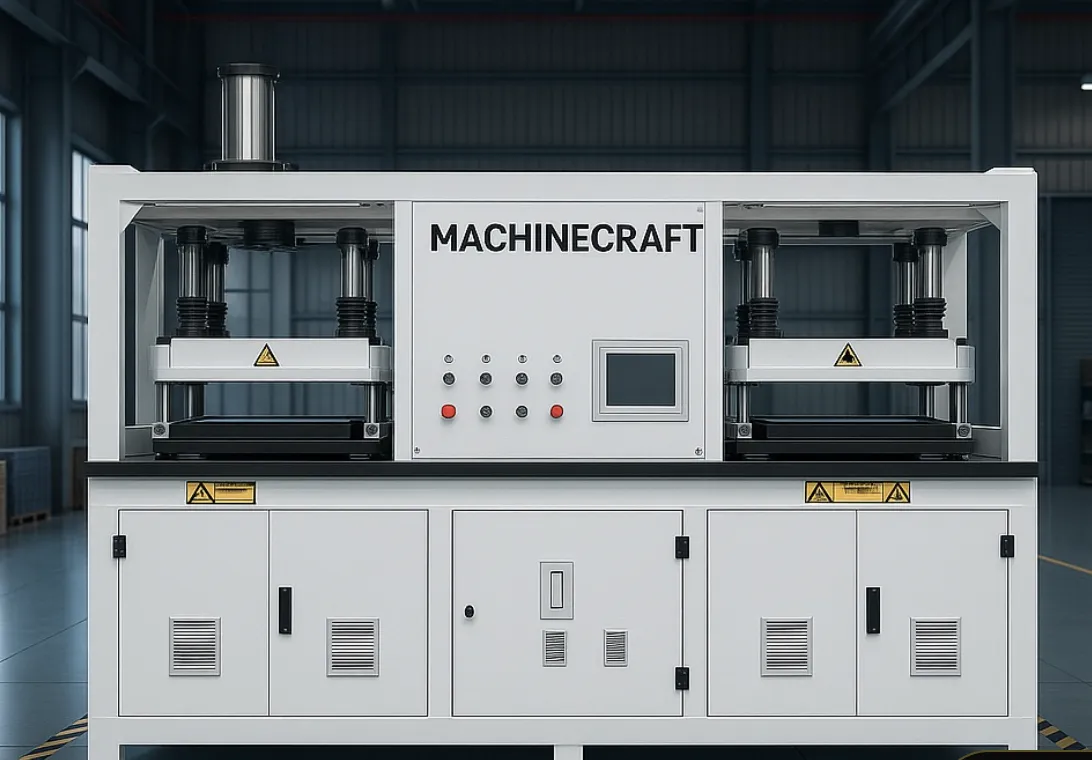

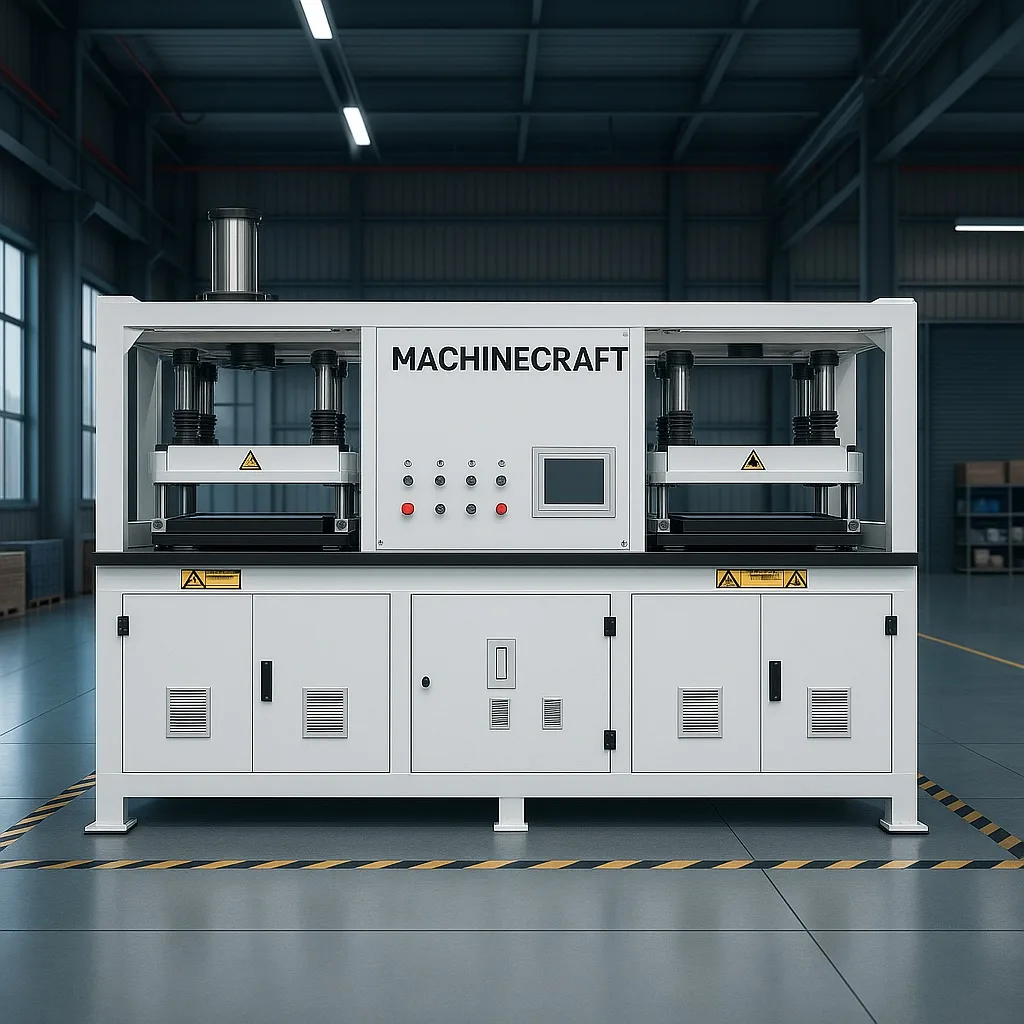

DUO — Dual-Station Forming
Dual-station configuration with static double heater for energy-efficient high-volume production. The dedicated luggage production machine.

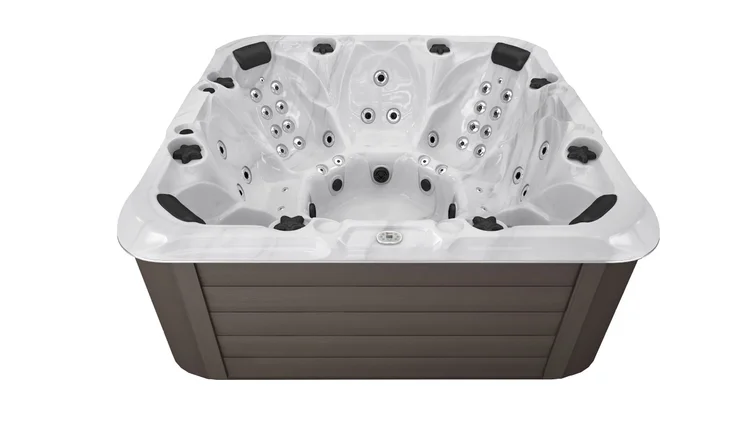

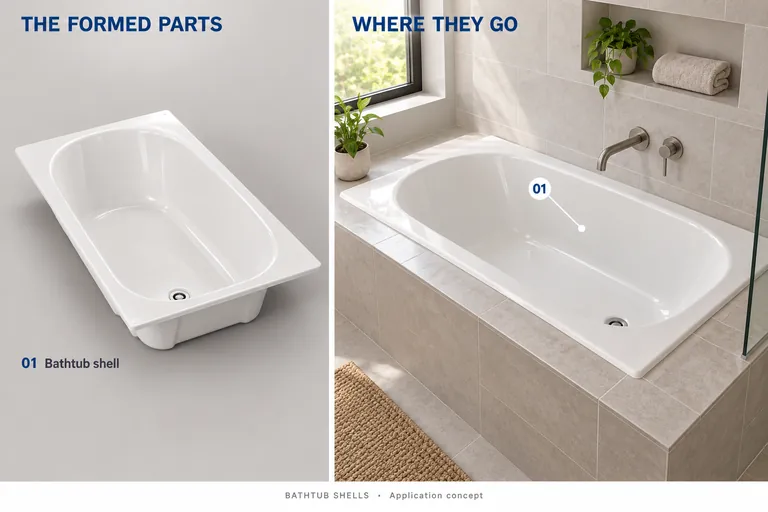

PF2 — Bathtub & Spa Machine
Cost-effective pneumatic vacuum forming machine for bathtub and spa shell manufacturing. Natural sag process into negative cavity molds.

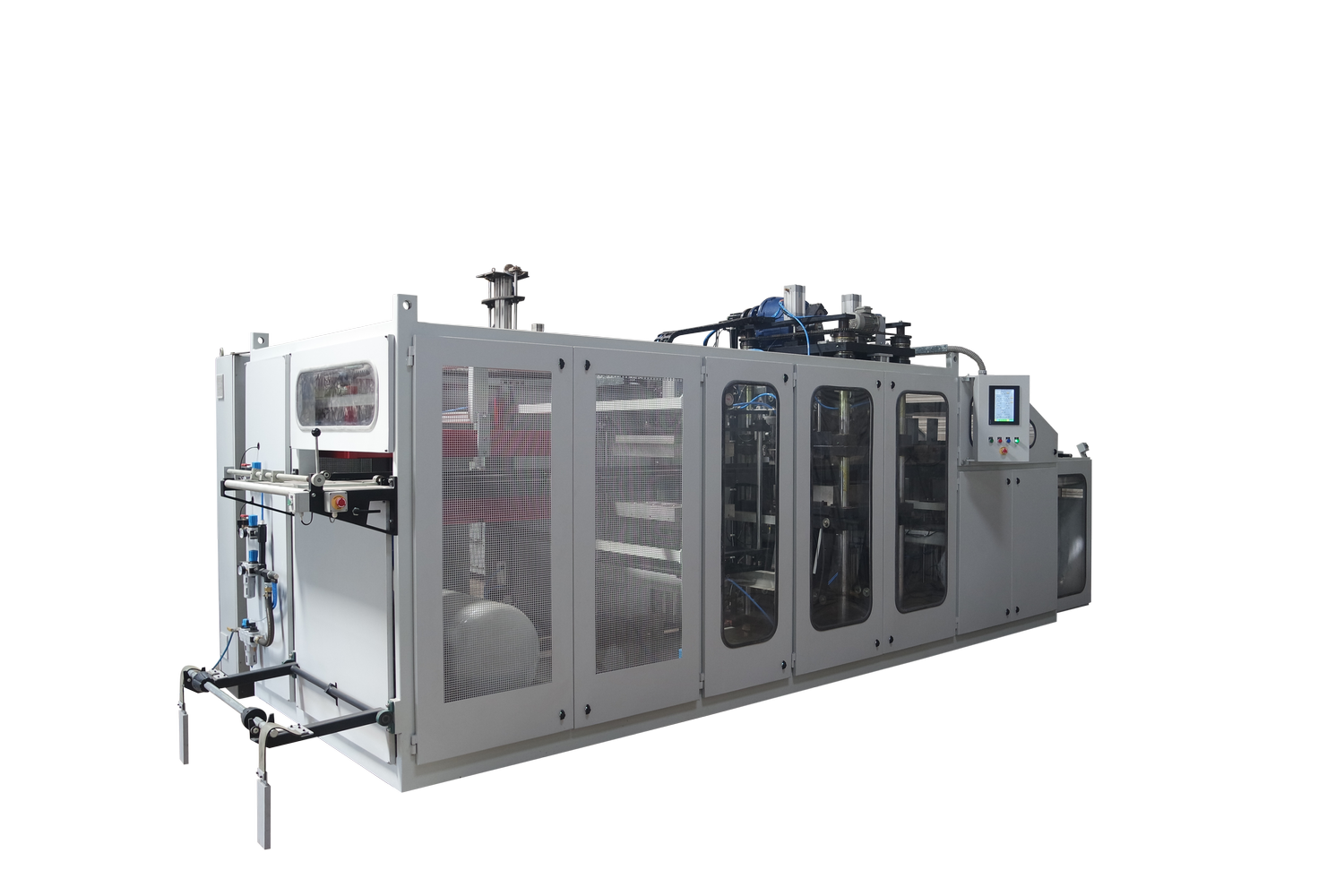

FCS Series — Form-Cut-Stack Pressure Forming (Eco / Pro / XL)
Roll-fed continuous pressure forming with integrated forming, punching, and stacking stations. Available in three variants: Eco (pneumatic), Pro (servo, up to 60 tonne), and XL (high-speed servo, up to 60 tonne). Forming areas from 500x600mm to 630x900mm. Servo-driven spike chain indexing with ±0.3mm accuracy for high-volume packaging production.
Technologies
Vacuum Forming
Vacuum forming is a thermoforming process where a thermoplastic sheet is heated and shaped over a mold using vacuum pressure. Machinecraft's PF1-X and PF1-C series handle heavy gauge sheets from 2-12mm for automotive, sanitary, and industrial applications.
Pressure Forming
Pressure forming uses both vacuum and positive air pressure (up to 6 bar) to achieve injection-mold quality surface detail at a fraction of the tooling cost. Machinecraft's AM and FCS series are designed for high-volume pressure forming applications.
TOM Method (Three-dimensional Overlay Method)
The TOM method is an advanced vacuum forming technique that applies decorative films to 3D surfaces in a single process. Used for automotive interiors, electronics housings, and consumer products requiring premium surface finishes.

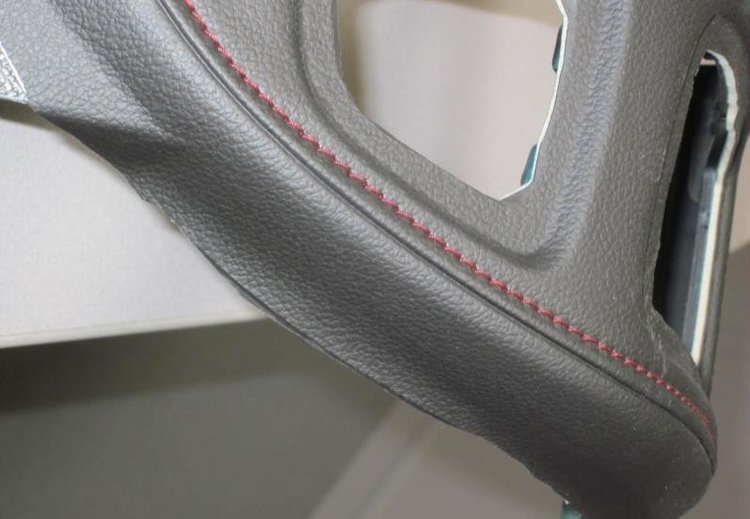

IMG Thermoforming (In-Mold Graining / Vacuum Lamination)
IMG thermoforming wraps artificial leather, textiles, or decorative films around 3D substrates using vacuum lamination. Machinecraft's MC-IMG series is India's first made-in-India IMG thermoforming machine, used for automotive door panels, dashboards, and interior trim.
Active Regions
Machinecraft machines are operating in India, Japan, Canada, Netherlands, Denmark, Sweden, United Kingdom, United Arab Emirates, Russia, South Africa, France, and Italy. Local agents provide sales support and after-sales service in key markets.
Frequently Asked Questions
What is vacuum forming?
Vacuum forming is a thermoforming process where a thermoplastic sheet is heated to a pliable forming temperature, stretched over a mold, and shaped using vacuum pressure. It is one of the most cost-effective methods for producing large plastic parts.
What materials can be vacuum formed?
Common vacuum forming materials include ABS, PMMA (acrylic), Polycarbonate (PC), TPO, HDPE, Polystyrene (PS), PET, Polypropylene (PP), PVC, and PLA.
What is the delivery time for a Machinecraft machine?
Typical lead time is 3-6 months depending on machine size and customization requirements. Lab-sized machines may be available sooner.
Does Machinecraft provide after-sales support?
Yes. Machinecraft provides remote support via video call, spare parts supply, annual maintenance contracts, and on-site commissioning by our engineers worldwide.
What sizes of vacuum forming machines does Machinecraft manufacture?
Machinecraft manufactures custom vacuum forming machines ranging from 600x400mm forming area up to 6000x2200mm (XL). Every machine is built to customer specifications.
Can Machinecraft machines process ABS and HDPE?
Yes. Machinecraft machines can process a wide range of thermoplastics including ABS, HDPE, PP, PS, PET, PMMA, PC, TPO, PVC, and PLA, with sheet thickness from 2-12mm.
