Servo-Driven Precision.
The PF1-X is Machinecraft's advanced servo-driven thermoforming machine with the European concept of closed chamber design to allow pre-blow bubble & zero sag control. Equipped with servo motor driven forming table, universal motorised aperture setting, IR heating (ceramic infrared elements, quartz elements, or halogen elements) with pyrometer, rotary vane vacuum with proportional servo valve, and programmable speed profiles. Optional automatic sheet loading and unloading for fully automated production cycles. Standard sizes range from 1000x600mm to 4000x2000mm, with XL models up to 6000x2200mm.
Universal Aperture Frame System.
Servo-motor driven sheet size adjustment with modular frame design
Modular Design
Quick-change aperture frames for different sheet sizes without tool changes.
Servo-Driven Adjustment
Motorised window plate adjustment in both axes via touchscreen control.
Rapid Changeover
Sheet size changeover in under 5 minutes with no manual adjustment required.
Quick Tool Change.
Liftable BTUs & Pneumatic Clamp System
Reduce setup time with our innovative quick tool change mechanism. The liftable Ball Transfer Units combined with pneumatic clamping allows you to swap molds in minutes without complex adjustments.
- Rapid mold changeover
- Pneumatic clamping for precision
- Minimizes production downtime
Independent IR Heater Control.
Independently controlled top and bottom heaters
IR Ceramic
Long-wave infrared with consistent heat distribution. Ideal for general-purpose thermoforming.
IR Quartz
Medium-wave infrared for faster heating and better control. Perfect for precise temperature management.
IR Halogen Flash
Short-wave infrared for rapid heating. Best for thick-gauge materials and high-speed production.
Automatic Sheet Loading.
Loading & Unloading System
Vacuum Pad Loading
Automatic sheet loading with precision vacuum pads. Reduces operator intervention and ensures consistent part placement.
Auto-Unloader
Optional automatic part removal system. Safely ejects finished parts from the mold for increased productivity.
Cycle Consistency
Synchronized loading and unloading improves cycle times and reduces manual handling requirements.
Servo-Driven Platen Movements.
Independent control of bottom and upper platen motion for precise forming
Bottom Platen Movement
Servo-driven bottom platen with precision control. Programmable acceleration profiles for optimal forming results.
Upper Platen Movement
Independent upper platen servo control with variable speed settings. Synchronized motion for consistent part quality.
Everything You Need to Know.
Servo-Driven Forming Table
Variable speed profiles4x servo motors with gearbox provide variable speed, acceleration, and deceleration profiles. The forming table can stop at any position for precise forming control — unlike pneumatic systems that only go full stroke.
Universal Motorised Aperture
< 5 min changeoverMotorised window plate adjustment in both axes via touchscreen. Sheet size changeover in under 5 minutes with no manual adjustment. Includes 2 sets of universal frames (max to min range).
IR Ceramic Heating + Pyrometer
Real-time temperatureLong-wave IR ceramic heaters (500W top / 400W bottom) with SSR solid-state control. Integrated pyrometer for real-time sheet temperature monitoring — ensures consistent forming quality.
Rotary Vane Vacuum + Servo Valve
Multi-step vacuumOil-lubricated rotary vane vacuum pumps with proportional servo valve for multi-step vacuuming. Integrated vacuum tank and automatic air-ejection for demoulding.
Air-Locked Front Door
Automated safetyAir cylinder locked doors for safety and consistent chamber sealing during closed-chamber forming. No manual turn-able locks — fully automated for operator safety.
Centralized Ducted Cooling
Uniform coolingHigh-CFM blower with ducting manifold, flexible hoses, and fixed nozzles for uniform cooling across the entire forming area. Significantly faster cycle times.
12 Standard Models.
From 1200x800mm to 6000x2200mm XL. Custom sizes available on request.
| Model | Forming Area | Max Tool Height | Heater Power |
|---|---|---|---|
| PF1-X-1012 | 1200 x 1000 mm | 400 mm | 35 kW |
| PF1-X-1015 | 1500 x 1000 mm | 400 mm | 45 kW |
| PF1-X-1215 | 1500 x 1200 mm | 500 mm | 55 kW |
| PF1-X-1520 | 2000 x 1500 mm | 500 mm | 75 kW |
| PF1-X-1525 | 2500 x 1500 mm | 550 mm | 95 kW |
| PF1-X-1528 | 2800 x 1500 mm | 550 mm | 110 kW |
| PF1-X-3020 | 3000 x 2000 mm | 650 mm | 135 kW |
| PF1-X-3520 | 3500 x 2000 mm | 650 mm | 160 kW |
| PF1-X-4020 | 4000 x 2000 mm | 700 mm | 185 kW |
* XL models highlighted. Custom sizes available. Contact [email protected] for specific requirements.
What Can You Make?
Automotive & EV
Bumpers, fenders, dashboards, battery enclosures, and interior panels for automotive and electric vehicle manufacturers

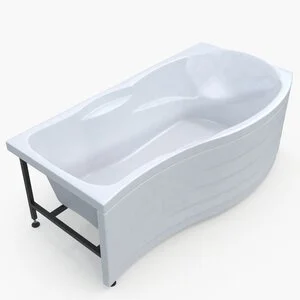

Bathtubs & Wellness
Acrylic bathtubs, shower trays, spa shells, and wellness products. Deep draw capability up to 1000mm.
Luggage & Cases
Hard-shell luggage, equipment cases, and protective enclosures from ABS and PC materials
Agricultural Equipment
Tractor hoods, fenders, panels, and enclosures for agricultural machinery and equipment
Medical Equipment
CT/MRI scanner covers, medical device housings, sterile trays, and equipment enclosures in ABS and PMMA
Public Transport
Bus panels, metro interior linings, seat backs, and exterior body panels for public transport vehicles
Truck Bedliners
Heavy-duty pickup truck bedliners formed with autoloader for continuous production. Compatible with HDPE and TPO materials.
Frequently Asked Questions.
Machines Built in Our Factory.
See the PF1-X and other Machinecraft machines at various stages of assembly and testing in our state-of-the-art manufacturing facility.
_8200d3cb.JPG)
Ready to Configure Your PF1-X?
Every PF1-X machine is custom built to your exact specifications. Choose your model, select your options, and we'll engineer the perfect solution.
