Thermoformed ABS PMMA Engine Hood for JCB Equipment: Durability Meets Design

Overview: The Power of Thermoforming for Heavy Equipment

In the demanding world of heavy equipment, components must withstand harsh conditions while maintaining structural integrity and aesthetic appeal. This is where advanced plastic fabrication techniques like thermoforming excel. Specifically, the production of an ABS PMMA engine hood for machinery such as JCB equipment demonstrates the versatility and strength achievable through precise manufacturing processes.

Our expertise in custom thermoforming allows us to create robust, lightweight, and visually appealing industrial components designed to meet the rigorous standards of the construction, agriculture, and automotive industries. This page delves into the specifics of producing an engine hood using vacuum forming and deep draw forming techniques, highlighting the benefits of ABS PMMA material and the capabilities of specialized machinery like the PF1 Series.

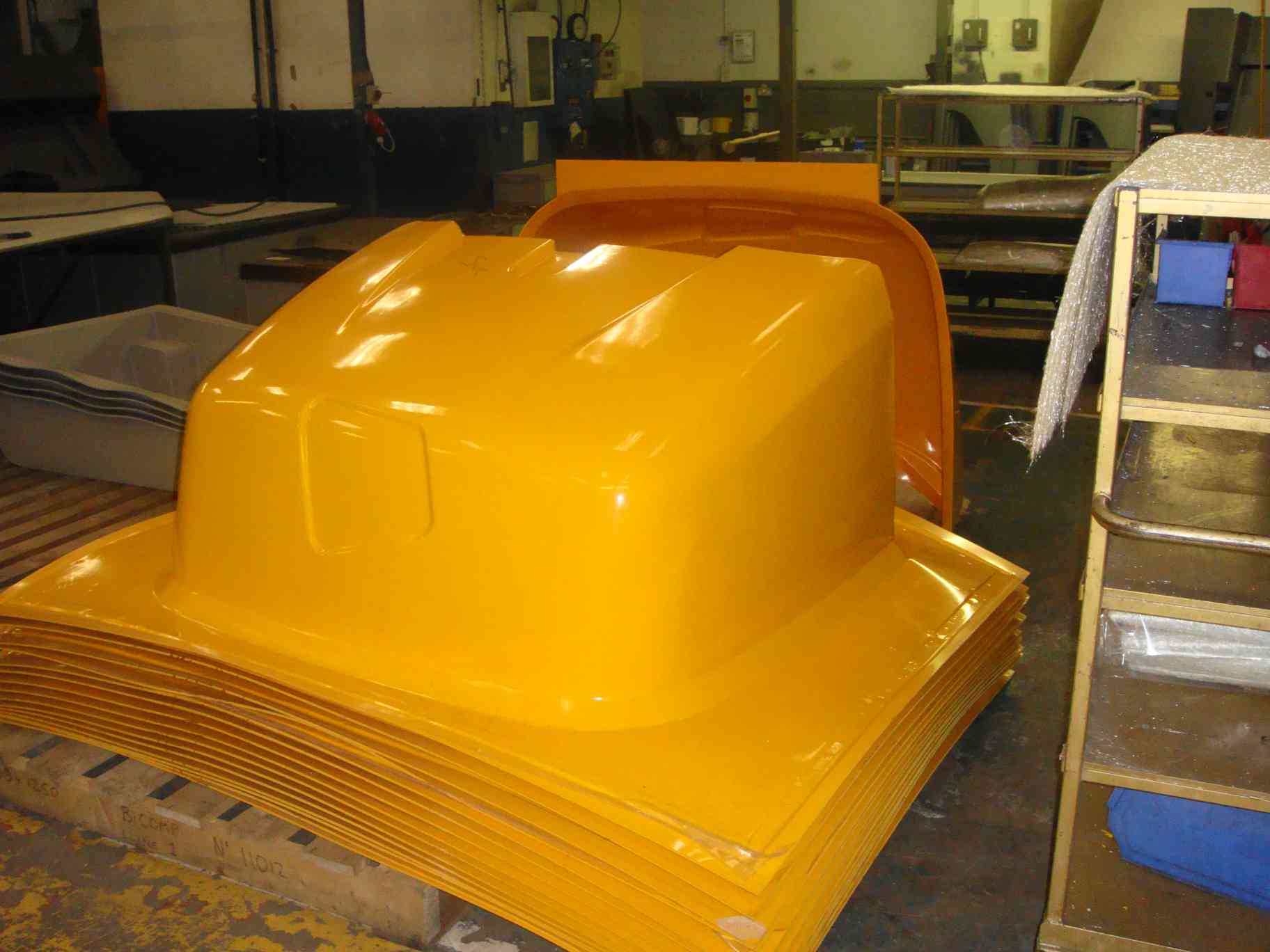

Figure 1: Example of a thermoformed ABS PMMA engine hood for heavy equipment.

Application Details: Engine Hoods for Industrial Workhorses

Engine hoods for heavy equipment are more than just covers; they are critical protective components that shield vital engine parts from environmental elements, impacts, and operational debris. For brands like JCB, known for their robust construction and agricultural machinery, these components must integrate seamlessly with the equipment's design and functionality.

Our thermoformed engine hoods are engineered to provide:

• Superior Protection: Guarding against dirt, moisture, UV radiation, and minor impacts.
• Reduced Weight: Contributing to overall equipment efficiency and fuel economy compared to metal alternatives.
• Design Flexibility: Allowing for complex contours, integrated features, and brand-specific aesthetics.
• Corrosion Resistance: Unlike metal, plastic components do not rust, ensuring longevity in varied climates.

This specific application focuses on creating a large-format, deeply drawn engine hood, suitable for various tractor parts and other heavy equipment components.

Materials Used: The Strength of ABS PMMA

The choice of material is paramount in thermoforming, especially for demanding applications. For this engine hood, ABS PMMA (Acrylonitrile Butadiene Styrene with Polymethyl Methacrylate cap) is the ideal selection. This co-extruded sheet combines the best properties of both polymers:

ABS (Acrylonitrile Butadiene Styrene)

Known for its excellent impact resistance, rigidity, and ease of processing. ABS provides the core strength and structural integrity required for an engine hood.

PMMA (Polymethyl Methacrylate)

Often referred to as acrylic, PMMA forms a protective cap layer. It offers superior UV resistance, weatherability, and a high-gloss, scratch-resistant surface. This cap layer is crucial for maintaining the aesthetic quality and color stability of the engine hood over its lifespan, even when exposed to harsh outdoor conditions.

The combination results in a material that is not only tough and durable but also maintains its appearance, making it perfect for exterior automotive plastics and industrial applications.

Process Description: Vacuum Forming and Deep Draw Forming

The creation of these complex engine hoods relies on advanced thermoforming techniques, specifically vacuum forming and deep draw forming.

Vacuum Forming

This process involves heating a sheet of ABS PMMA plastic until it is pliable, then draping it over a mold. A vacuum is then applied, drawing the softened plastic tightly against the mold's surface to form the desired shape. This method is highly efficient for producing large, intricate parts with consistent quality.

Deep Draw Forming

A specialized type of vacuum forming, deep draw forming is employed when parts have significant depth relative to their width. It requires careful control of heating and vacuum pressure to ensure the material stretches evenly into deep cavities without thinning or tearing. This technique is essential for creating the complex, three-dimensional contours of an engine hood.

Our state-of-the-art PF1 Series machine is specifically designed for such large-format, deep draw thermoforming, ensuring precision and repeatability for every plastic fabrication project.

Benefits of Thermoformed ABS PMMA Engine Hoods

Opting for thermoformed ABS PMMA engine hoods offers numerous advantages over traditional materials and manufacturing methods:

• Cost-Effectiveness: Lower tooling costs compared to injection molding, especially for large parts and shorter production runs.
• Lightweight: Significantly lighter than metal counterparts, leading to improved fuel efficiency and reduced strain on equipment.
• Durability: Excellent impact strength, chemical resistance, and UV stability from the ABS PMMA blend.
• Design Freedom: Allows for complex geometries, integrated features, and smooth, aesthetically pleasing surfaces.
• Faster Prototyping & Production: Quicker turnaround times from design to final product.
• Corrosion Proof: Plastics do not rust, making them ideal for outdoor and harsh environments.
• Reduced Maintenance: The inherent properties of ABS PMMA contribute to a longer service life with less need for repair or replacement.

Technical Specifications for Thermoformed Engine Hoods

When considering a thermoformed engine hood, key specifications include:

• Material: ABS PMMA (co-extruded sheet)
• Typical Sheet Thickness: 3mm - 10mm (0.125" - 0.375")
• Maximum Part Dimensions: Up to 3000mm x 2000mm (120" x 80") for large format applications.
• Process: Vacuum Forming, Deep Draw Forming
• Surface Finish: High gloss, UV stable, scratch-resistant (from PMMA cap)
• Color Options: Wide range of custom colors available, molded-in color eliminates painting.
• Tolerances: Typically +/- 0.5mm to 1.5mm depending on part size and complexity.
• Machine Series Used: PF1 Series (for large format, deep draw)

Related Applications & Industries

The principles and benefits of thermoforming ABS PMMA extend far beyond engine hoods. Our capabilities in large format thermoforming and custom thermoforming serve a wide array of industries:

• Industrial: Machine housings, protective covers, control panel enclosures, material handling trays.
• Automotive: Interior trim, exterior body panels, truck bed liners, specialty vehicle components.
• Construction: Equipment cabs, external panels, heavy-duty protective components.
• Agriculture: Tractor parts, combine harvester components, agricultural machinery enclosures.
• Medical: Equipment shrouds, diagnostic machine housings.
• Recreational Vehicles: RV components, ATV body parts, marine accessories.

If you require durable, custom plastic fabrication for any demanding application, thermoforming with materials like ABS PMMA offers a compelling solution.

Frequently Asked Questions about Thermoforming Engine Hoods

Q: What is ABS PMMA and why is it used for engine hoods?

A: ABS PMMA is a co-extruded plastic sheet combining ABS (for strength and impact resistance) with a PMMA cap layer (for UV resistance, scratch resistance, and high-gloss finish). This combination makes it ideal for exterior engine hoods on heavy equipment, offering durability and aesthetic longevity.

Q: What is deep draw forming?

A: Deep draw forming is a specialized thermoforming technique used to create parts with significant depth relative to their width. It involves heating a plastic sheet and then using vacuum pressure to pull it deeply into a mold, ensuring uniform material distribution for complex, three-dimensional shapes like engine hoods.

Q: Can thermoformed engine hoods be customized for different equipment brands?

A: Absolutely. Custom thermoforming allows for complete design flexibility. We can engineer and produce engine hoods tailored to the specific dimensions, aesthetic requirements, and branding of various heavy equipment manufacturers, including custom JCB parts.

Q: What are the main benefits of thermoforming over other manufacturing methods for engine hoods?

A: Thermoforming offers several benefits, including lower tooling costs (especially for large parts), faster production cycles, lightweight yet durable components, excellent design flexibility, and inherent corrosion resistance compared to metal fabrication. It's particularly well-suited for large, complex parts like engine hoods.

Q: What is the PF1 Series machine?

A: The PF1 Series machine refers to a line of advanced thermoforming machines specifically designed for large-format, deep draw applications. These machines provide the precision heating and vacuum control necessary to produce high-quality, complex plastic components like heavy equipment engine hoods.
