ABS Vacuum Formed Agriculture Equipment Headliner: Durable & Custom Solutions

In the demanding world of agriculture, equipment must withstand harsh conditions while providing a comfortable and functional environment for operators. The interior components, especially those in the cab, play a crucial role in both durability and user experience. This is where ABS vacuum forming shines, offering an ideal solution for robust and aesthetically pleasing agriculture equipment headliners and other interior panels.

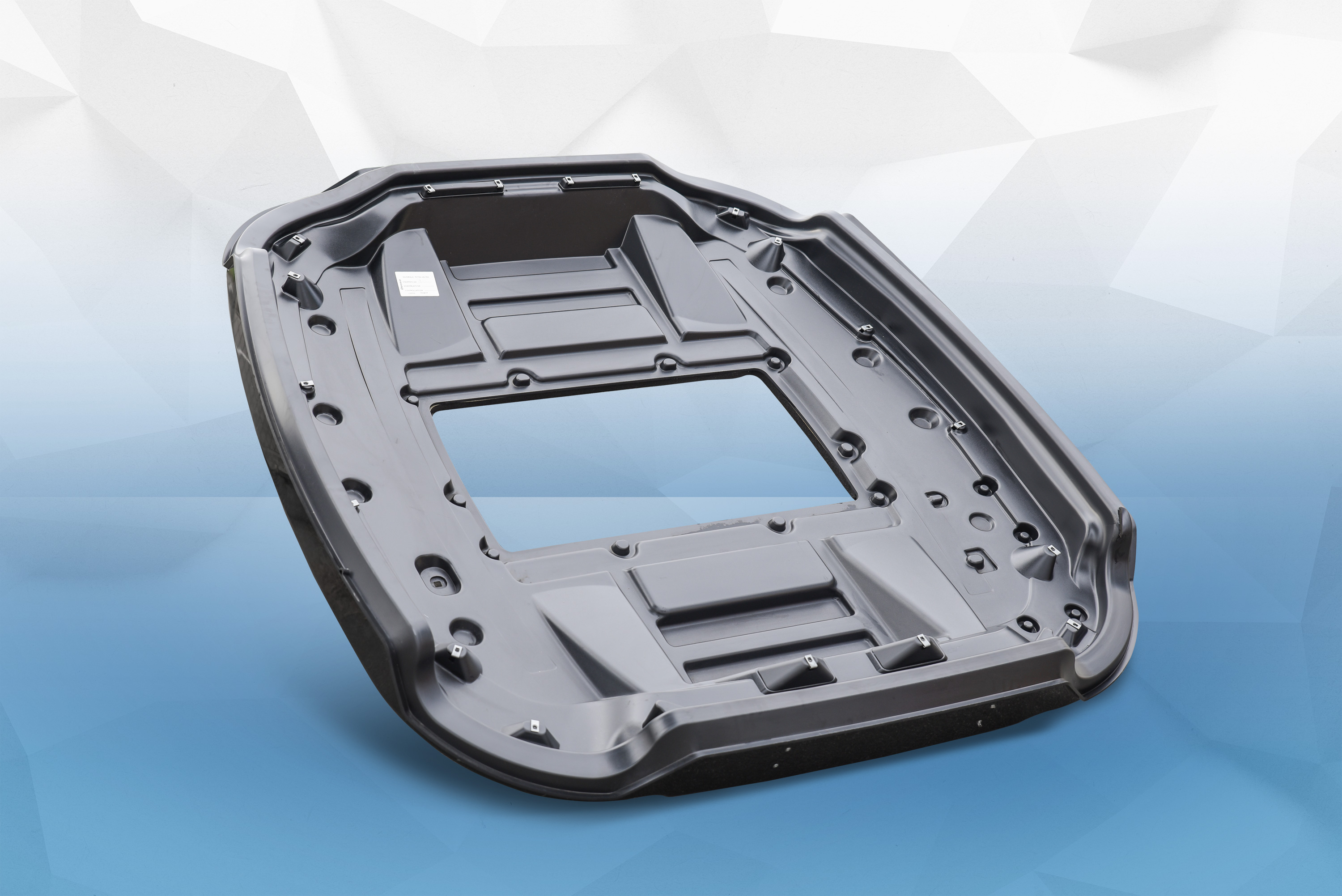

Figure 1: A precisely engineered ABS vacuum formed headliner, ready for integration into agriculture equipment.

Overview of ABS Vacuum Formed Headliners for Agriculture Equipment

Our focus here is on a specific, high-performance application: the B-surface headliner part for agriculture equipment, meticulously crafted using the ABS vacuum forming process. This method allows for the creation of complex, custom-fit components that meet the stringent requirements of heavy machinery. By utilizing the PF1 series of ABS, we ensure exceptional material properties tailored for the agricultural sector.

Custom thermoforming provides manufacturers with the flexibility to design interior components that perfectly integrate into various tractor and heavy equipment cab interiors. From ergonomic shapes to integrated features, plastic fabrication through vacuum forming offers a cost-effective and efficient manufacturing solution for these critical parts.

Application Details: Enhancing Cab Interiors

The headliner is more than just a ceiling panel; it's an integral part of the operator's environment. An ABS vacuum formed headliner contributes significantly to:

• Operator Comfort: Providing insulation against noise and temperature fluctuations.
• Aesthetics: Offering a clean, finished look to the cab interior.
• Functionality: Often incorporating cutouts for lighting, HVAC vents, speakers, and wiring harnesses.
• Durability: Protecting the underlying structure from wear and tear, and resisting impacts.

The term "B-surface" refers to the non-visible or secondary surface of a part, which in this case, would be the side facing the structural elements of the cab. While less visible, the quality and precision of the B-surface are critical for proper fit, mounting, and overall structural integrity of the cab interior. Our expertise in industrial thermoforming ensures both A-surface aesthetics and B-surface functionality are optimized.

Materials Used: The Power of ABS

Acrylonitrile Butadiene Styrene, or ABS, is the material of choice for this application due to its exceptional balance of properties. Specifically, the PF1 series of ABS is often selected for its enhanced characteristics suitable for demanding environments.

Key Characteristics of ABS for Agriculture Equipment:

• High Impact Strength: Essential for components in heavy equipment, resisting bumps and vibrations.
• Good Chemical Resistance: Withstands exposure to common agricultural chemicals, oils, and cleaning agents.
• Temperature Stability: Maintains structural integrity across a wide range of operating temperatures, from cold mornings to hot afternoons.
• Excellent Formability: Ideal for the vacuum forming process, allowing for intricate designs and tight tolerances.
• Aesthetic Versatility: Can be colored, textured, and finished to match specific brand requirements for tractor interior components.
• Lightweight: Contributes to overall equipment efficiency without compromising strength.

Process Description: Precision Vacuum Forming

Vacuum forming is a highly efficient and cost-effective method for producing large, complex plastic parts with consistent quality. The process for creating an ABS vacuum formed headliner typically involves:

1. Material Clamping: A sheet of ABS plastic (e.g., PF1 series) is securely clamped into a frame.
2. Heating: The plastic sheet is heated to its forming temperature, becoming pliable.
3. Forming: The heated sheet is lowered over a mold, and a vacuum is applied, drawing the plastic tightly against the mold's surface to replicate its shape.
4. Cooling: The plastic is allowed to cool and solidify in the mold.
5. Trimming & Finishing: The formed part is removed from the mold, and excess material is trimmed. Secondary operations like drilling, routing, or assembly may be performed to create the final headliner part.

This process is particularly well-suited for producing the large, often curved interior panels required for heavy equipment components.

Benefits of Thermoformed ABS Headliners

Choosing ABS thermoforming for agriculture equipment headliners offers numerous advantages over alternative manufacturing methods or materials:

• Cost-Effectiveness: Lower tooling costs compared to injection molding, especially for medium-volume production.
• Design Flexibility: Allows for complex geometries, integrated features, and custom designs without significant cost increases.
• Durability & Longevity: ABS provides a tough, long-lasting solution that can endure the rigors of agricultural use.
• Weight Reduction: Lighter than metal alternatives, contributing to fuel efficiency and reduced wear on equipment.
• Faster Prototyping & Production: Quick turnaround times from design to finished product, ideal for new equipment development or upgrades.
• Seamless Integration: Custom-fit parts ensure easy installation and a professional finish in the cab interior.

Technical Specifications

When considering an ABS vacuum formed headliner or other thermoformed plastics for your agriculture equipment, key specifications often include:

• Material: ABS (e.g., PF1 series, UV stabilized grades available)
• Process: Vacuum Forming
• Typical Thickness: 0.060" to 0.250" (1.5mm to 6.35mm), depending on structural requirements.
• Tolerances: Generally ±0.030" to ±0.060" (±0.76mm to ±1.52mm) for formed features.
• Finish: Smooth, textured (e.g., hair cell, matte), or painted.
• Custom Features: Cutouts for lights, vents, speakers, mounting points, integrated wire channels.
• Color Matching: Available to meet OEM specifications.

Related Applications in Agriculture & Heavy Equipment

The versatility of industrial thermoforming extends beyond headliners to a wide range of heavy equipment components and agriculture equipment parts. Other common thermoformed plastics applications include:

• Dashboards and instrument panels
• Door panels and armrests
• Fender flares and exterior body panels
• Seat backs and bases
• Engine covers and shrouds
• Storage compartments and trays
• HVAC ducts and housings

These applications leverage the same benefits of durability, customization, and cost-effectiveness offered by ABS thermoforming.

Frequently Asked Questions (FAQ)

Q1: What is ABS vacuum forming?

A1: ABS vacuum forming is a plastic manufacturing process where a sheet of ABS plastic is heated until pliable, then draped over a mold. A vacuum is applied to draw the plastic tightly against the mold's surface, creating a precisely shaped part. It's ideal for producing durable and complex components like agriculture equipment headliners.

Q2: Why is ABS a good material for agriculture equipment interiors?

A2: ABS is chosen for agriculture equipment due to its excellent impact strength, resistance to chemicals and temperature fluctuations, good formability, and versatility in aesthetics. These properties ensure long-lasting and functional tractor interior components.

Q3: What is a B-surface part in thermoforming?

A3: A B-surface part refers to the non-visible or secondary side of a thermoformed component. While not seen, its quality is crucial for proper fit, mounting, and structural integrity, especially for complex cab interior elements like headliners.

Q4: Can thermoformed headliners be customized for specific equipment models?

A4: Yes, custom thermoforming allows for complete customization of headliners to fit specific agriculture equipment models. This includes unique shapes, cutouts for various features, and integration with existing designs, ensuring a perfect fit for any heavy equipment components.

Q5: What are the advantages of vacuum forming over injection molding for these parts?

A5: For large interior panels and medium production volumes, vacuum forming often offers lower tooling costs and faster lead times compared to injection molding. It provides excellent design flexibility and is well-suited for producing the intricate shapes of agriculture equipment headliner parts.

Partner with Us for Your Thermoforming Needs

Whether you're developing new agriculture equipment or looking to upgrade existing models, our expertise in ABS thermoforming and plastic fabrication can provide the durable, high-quality headliner part and other heavy equipment components you need. Contact us today to discuss your custom thermoforming project and discover the benefits of our industrial thermoforming solutions, including the use of specialized materials like the PF1 series.
