Revolutionizing EV Front Grills & Commercial Vehicle Parts with Vacuum Forming
Explore how advanced thermoforming techniques, particularly vacuum forming on Machinecraft PF1 series machines, are shaping the future of electric vehicle components and last-mile delivery vehicle parts.
Overview: The Power of Thermoforming for Automotive Innovation
The automotive industry, especially the rapidly evolving electric vehicle (EV) sector, demands innovative manufacturing solutions that deliver durability, weight reduction, and cost-effectiveness. Traditional metal fabrication often falls short in meeting these complex requirements. This is where thermoforming, and specifically vacuum forming, emerges as a game-changer. At Machinecraft, our state-of-the-art PF1 series machines are engineered to produce high-quality, intricate automotive parts, including critical EV front grills and various commercial vehicle parts.
For last-mile delivery vehicles, where every gram of weight and every penny of cost matters, plastic components offer significant advantages. Our expertise in heavy gauge thermoforming ensures that even large, robust exterior parts can be manufactured with precision and efficiency, contributing to the overall performance and sustainability of modern electric fleets.
Application Details: EV Front Grills & Commercial Vehicle Components
The front grill of an electric vehicle is more than just an aesthetic feature; it's a crucial component that houses sensors, cameras, and often serves as a protective barrier. Unlike internal combustion engine vehicles that require airflow for radiator cooling, EVs often feature a closed or partially closed grill design, making them ideal candidates for plastic fabrication.

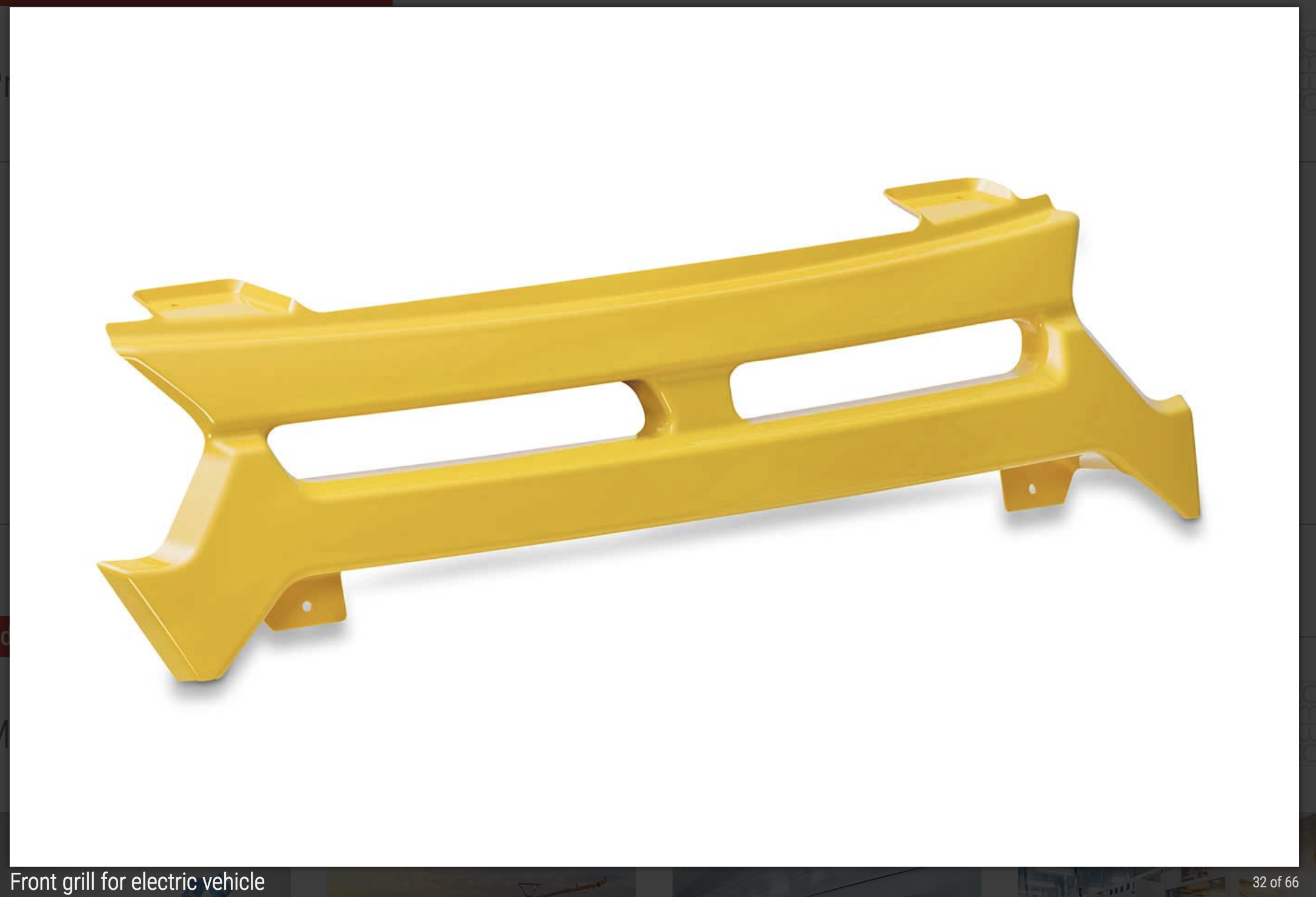

Figure 1: A vacuum formed EV front grill, showcasing the intricate details achievable for commercial and last-mile delivery vehicles. This image demonstrates the quality produced on machines like the Machinecraft PF1 series.
Our capabilities extend beyond just front grills to a wide array of exterior automotive parts for commercial and last-mile delivery vehicles, such as:
- Bumper covers and fascias
- Aerodynamic fairings and skirts
- Interior trim panels
- Battery covers and enclosures
- Wheel well liners
The ability to produce large, complex shapes with excellent surface finish makes custom thermoforming an invaluable process for these applications.
Materials Used in EV & Commercial Vehicle Thermoforming
The selection of appropriate plastic materials is paramount for automotive applications, considering factors like impact resistance, UV stability, temperature fluctuations, and weight. Common materials ideal for EV parts and commercial vehicle parts include:
- ABS (Acrylonitrile Butadiene Styrene): Known for its excellent impact resistance and rigidity, making it suitable for durable exterior components.
- HDPE (High-Density Polyethylene): Offers good chemical resistance and flexibility, often used for liners and less rigid parts.
- TPO (Thermoplastic Olefin): A popular choice for automotive exteriors due to its superior impact strength, UV resistance, and paintability.
- PC/ABS Blends: Combines the strength of polycarbonate with the processability of ABS, ideal for high-performance applications.
- Acrylic (PMMA): Used for transparent or translucent components, offering excellent optical clarity and weatherability.
These materials can be formulated with specific additives to enhance properties such as flame retardancy, UV protection, and improved aesthetics, ensuring optimal performance for every electric vehicle component.
The Vacuum Forming Process with Machinecraft PF1 Series
Vacuum forming is a simplified version of thermoforming, particularly effective for producing large, intricate parts like an EV front grill. The process on a Machinecraft PF1 series machine typically involves:
- Sheet Loading: A plastic sheet of the chosen material (e.g., TPO, ABS) is clamped into a frame.
- Heating: The sheet is then moved into an oven where radiant heaters soften it to a pliable temperature. Our PF1 series machines feature advanced heating zones for precise temperature control, crucial for consistent material thickness.
- Forming: Once softened, the sheet is lowered onto a mold. A vacuum is applied through small holes in the mold, drawing the hot plastic tightly against its contours. This creates the desired shape, such as the complex curves and features of an EV front grill.
- Cooling: The plastic is allowed to cool while still under vacuum, retaining its new shape. Cooling fans or water mist may be used to accelerate this stage.
- Trimming: After cooling, the formed part is removed from the mold, and excess material is trimmed away using CNC routers or other precision cutting methods.
The Machinecraft PF1 series is specifically designed for heavy gauge thermoforming, allowing for the precise and efficient production of robust exterior automotive parts that meet stringent industry standards.
Benefits of Vacuum Forming for EV & Commercial Vehicle Parts
Utilizing vacuum forming for EV parts and commercial vehicle components offers a multitude of advantages:
- Cost-Effectiveness: Lower tooling costs compared to injection molding, making it ideal for prototyping and medium-volume production runs.
- Weight Reduction: Plastic components are significantly lighter than their metal counterparts, directly contributing to increased range and energy efficiency for electric vehicles and last-mile delivery vehicles.
- Design Flexibility: Allows for complex geometries, integrated features, and aesthetic finishes, crucial for modern automotive design.
- Durability: Selected plastics offer excellent impact resistance, weatherability, and chemical resistance, ensuring longevity in demanding environments.
- Faster Prototyping & Production: Shorter lead times from design to finished part, enabling quicker market entry for new EV models.
- Seamless Integration: Parts can be designed to seamlessly integrate with other vehicle systems, including sensors and lighting.
These benefits underscore why thermoforming is becoming the preferred method for manufacturing critical electric vehicle components.
Technical Specifications & Capabilities (Machinecraft PF1 Series)
Our Machinecraft PF1 series machines are optimized for high-performance heavy gauge thermoforming, making them perfectly suited for demanding automotive parts applications. Key specifications include:
Key Specifications for EV Front Grill Production:
- Forming Area: Up to [Insert Max Forming Area, e.g., 100" x 60"]
- Material Thickness: Capable of processing sheets from [Insert Min Thickness, e.g., 0.060"] up to [Insert Max Thickness, e.g., 0.500"]
- Heating System: Advanced ceramic or quartz heaters with multi-zone control for uniform heating.
- Vacuum System: High-capacity vacuum pumps for rapid and consistent forming.
- Automation: Optional robotic loading/unloading and in-line trimming for enhanced efficiency.
- Precision: +/- [Insert Tolerance, e.g., 0.005"] dimensional accuracy (material and design dependent).
- Suitable Materials: ABS, HDPE, TPO, PC/ABS, Acrylic, and various composites.
These capabilities ensure that whether you're producing an EV front grill or other large commercial vehicle parts, you receive components that meet the highest standards of quality and performance.
Related Thermoforming Applications in Automotive
Beyond EV front grills and last-mile delivery vehicle parts, thermoforming plays a crucial role across the broader automotive sector. Other significant applications include:
- Interior Trim: Door panels, dashboards, headliners, and console components.
- Under-the-Hood Components: Air ducts, fluid reservoirs, and engine covers.
- Cargo & Storage Solutions: Truck bed liners, cargo organizers, and tool trays.
- Specialty Vehicles: Components for recreational vehicles (RVs), agricultural equipment, and construction machinery.
The versatility of plastic fabrication through custom thermoforming makes it an indispensable process for modern vehicle manufacturing, constantly pushing the boundaries of design and efficiency.
Frequently Asked Questions about EV Automotive Thermoforming
What is thermoforming in the context of EV parts?
Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable temperature, stretched over or into a mold, and held in place while it cools and solidifies into the desired shape. For EV parts, this means creating components like front grills, battery covers, and interior panels from various plastic materials, offering advantages in weight, cost, and design flexibility.
Why choose vacuum forming for EV front grills over other methods?
Vacuum forming is often preferred for EV front grills due to its lower tooling costs compared to injection molding, faster prototyping capabilities, and ability to produce large, complex shapes with excellent surface finishes. It's particularly well-suited for medium-volume production and for parts requiring significant size and detail, making it ideal for commercial vehicle parts and last-mile delivery vehicle applications.
What materials are best for thermoformed exterior automotive parts?
For exterior automotive parts, especially for electric vehicle components, materials like TPO (Thermoplastic Olefin), ABS (Acrylonitrile Butadiene Styrene), and PC/ABS blends are highly recommended. These materials offer a balance of impact resistance, UV stability, paintability, and weatherability crucial for parts exposed to the elements, such as an EV front grill.
Can Machinecraft PF1 series machines handle heavy gauge materials for automotive?
Yes, the Machinecraft PF1 series is specifically engineered for heavy gauge thermoforming. This capability allows for the precise processing of thicker plastic sheets, enabling the production of robust and durable automotive parts, including large commercial vehicle parts and structural components for electric vehicles, ensuring they meet stringent performance requirements.
Ready to innovate your electric vehicle components or commercial vehicle parts? Contact us to learn more about how Machinecraft's advanced thermoforming solutions can benefit your next project.
