Thermoformed Vehicle Roofs & Automotive Components: Lightweight, Durable Solutions

In the dynamic world of automotive manufacturing, the demand for lightweight, durable, and cost-effective components is ever-increasing. Thermoforming, a versatile plastic manufacturing process, stands out as a premier solution for creating a wide array of automotive components, including robust vehicle roofs, interior panels, and exterior covers. Our expertise in custom thermoforming allows us to produce high-quality plastic panels that meet the stringent requirements of the automotive, recreational vehicle (RV), and utility vehicle industries.

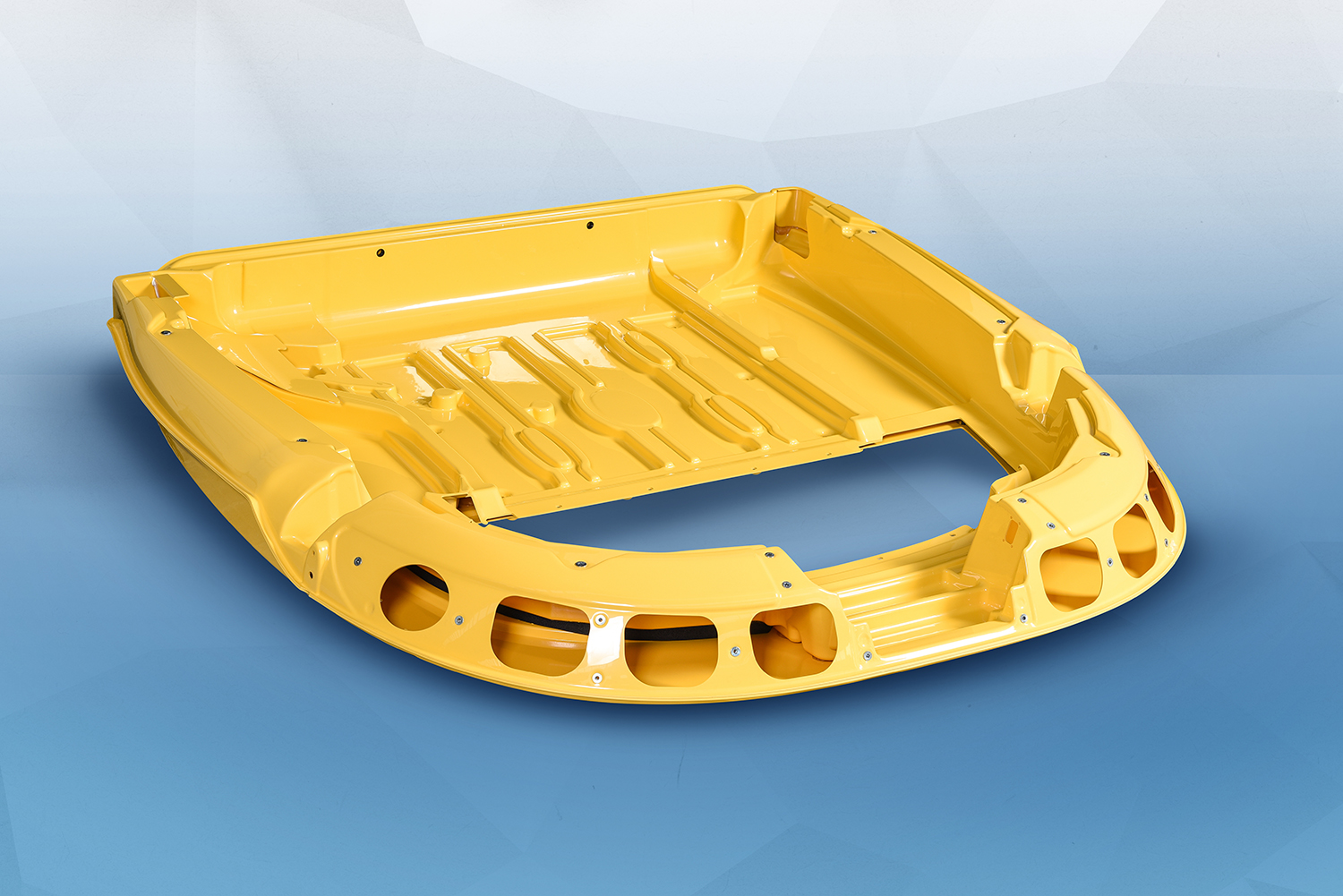

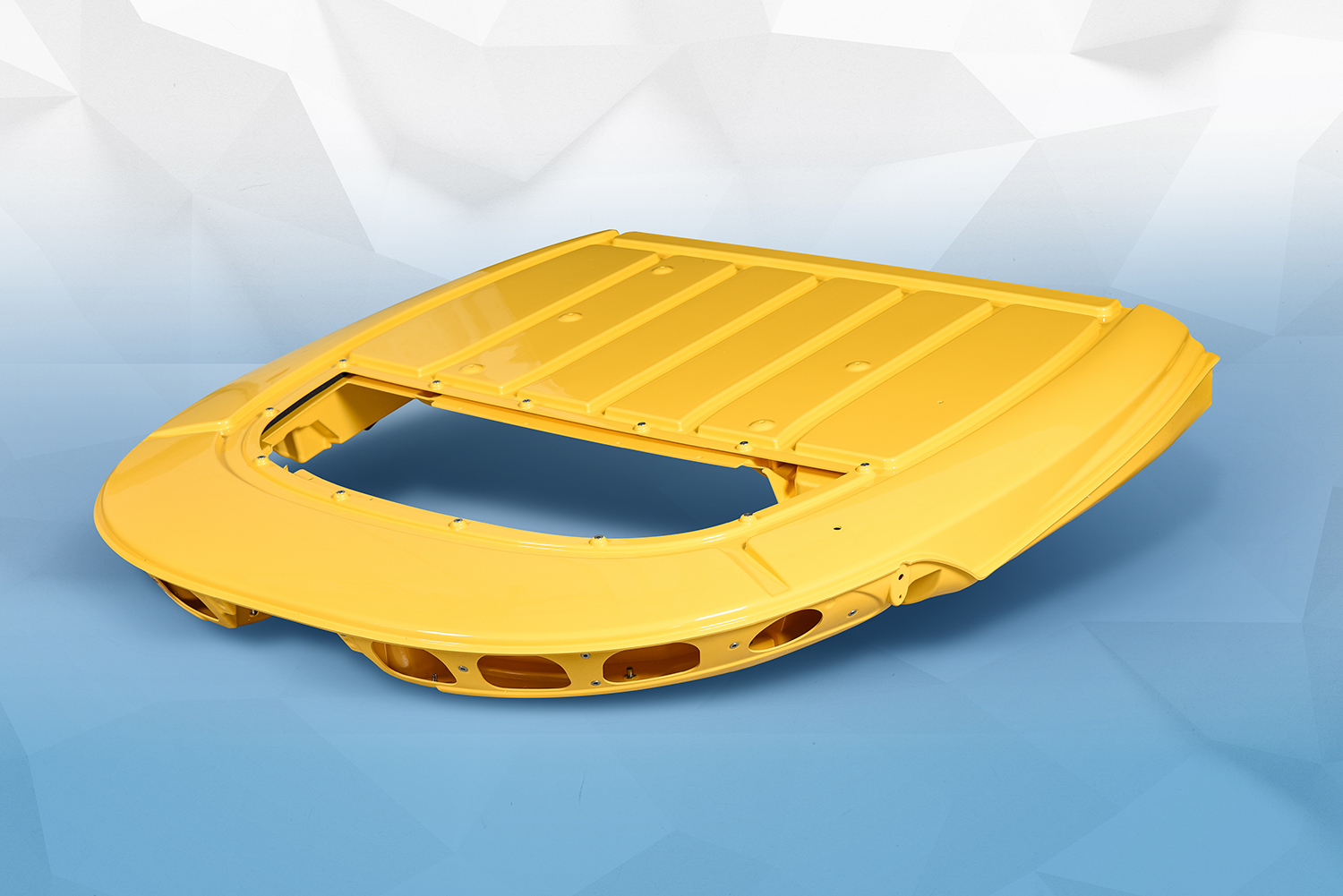

Figure 1: Example of thermoformed single sheet parts, such as vehicle roof sections, ready for assembly into a complete structure.

Overview of Thermoforming for Automotive Applications

Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable temperature, formed into a specific shape in a mold, and then trimmed to create a usable product. This method is particularly adept at producing large, complex shapes with excellent structural integrity, making it ideal for various automotive components. From conceptual design to final production, thermoforming offers unparalleled flexibility and efficiency.

The process is highly adaptable, accommodating different material types and thicknesses, which is crucial for meeting diverse automotive specifications. Whether it's for a sleek RV roof or a rugged utility vehicle panel, thermoforming delivers precision and consistency.

Application Details: Vehicle Roofs and Exterior Components

Our focus on heavy gauge thermoforming and single sheet forming techniques enables the creation of substantial parts, such as the vehicle roof sections shown in Figure 1. These individual plastic panels are meticulously formed to precise specifications and then assembled to construct a complete, seamless roof structure. This approach is particularly beneficial for:

• Recreational Vehicle (RV) Roofs: Providing durable, weather-resistant, and lightweight coverings that contribute to better fuel efficiency and easier handling.
• Utility Vehicle Parts: Manufacturing robust exterior components that can withstand harsh environments and heavy use.
• Automotive Panels: Producing various automotive panels and exterior components, including fender flares, bumper covers, and cargo area liners.
• Specialty Vehicle Covers: Creating custom covers and enclosures for a range of transportation applications.

The ability to produce large, single-sheet parts minimizes seams and potential weak points, enhancing the overall strength and longevity of the final product. This method is also highly efficient for medium to high-volume production runs.

Materials Used in Thermoformed Automotive Parts

Selecting the right material is paramount for the performance and longevity of thermoformed automotive components. We work with a range of high-performance plastics, each offering unique advantages:

• ABS (Acrylonitrile Butadiene Styrene): A popular choice for exterior parts due to its excellent impact resistance, rigidity, and aesthetic appeal. ABS plastic is easily paintable and offers good dimensional stability.
• HDPE (High-Density Polyethylene): Known for its exceptional chemical resistance, toughness, and flexibility. HDPE is ideal for applications requiring durability in challenging conditions.
• Polypropylene: Offers excellent fatigue resistance, high strength-to-weight ratio, and good chemical resistance, making it suitable for various automotive applications.
• Acrylic: Valued for its optical clarity, weatherability, and scratch resistance, often used for transparent or decorative components.

Our material specialists can help determine the optimal plastic for your specific vehicle roof or automotive panel project, ensuring compliance with industry standards and performance requirements.

Process Description: Vacuum Forming and Pressure Forming

Two primary thermoforming processes are employed to create high-quality automotive components:

Vacuum Forming

Vacuum forming involves heating a plastic sheet and then drawing it down into or over a mold using a vacuum. This process is highly cost-effective for producing parts with less intricate details but still offers excellent surface finish and dimensional accuracy. It's often used for larger, less complex plastic panels and covers.

Pressure Forming

Pressure forming takes the process a step further by applying positive air pressure above the heated plastic sheet while simultaneously using a vacuum below. This combination forces the plastic more tightly into the mold, resulting in parts with sharper details, tighter tolerances, and a superior aesthetic finish, often mimicking injection molded parts. It is ideal for exterior parts where appearance and precision are critical.

For large-scale components like vehicle roofs, heavy gauge thermoforming is employed, utilizing thicker plastic sheets to achieve the necessary structural integrity and durability.

Benefits of Thermoforming for Automotive Industries

Choosing thermoforming for your automotive components offers several distinct advantages:

• Cost-Effectiveness: Lower tooling costs compared to injection molding, making it economical for medium-to-high volume production.
• Design Flexibility: Ability to create complex geometries, intricate details, and large parts, providing designers with greater freedom.
• Lightweight Construction: Produces parts that are significantly lighter than metal alternatives, contributing to improved fuel efficiency and reduced emissions for recreational vehicle parts and utility vehicle parts.
• Durability & Impact Resistance: Utilizes robust plastics like ABS plastic and HDPE that offer excellent resistance to impact, chemicals, and harsh weather conditions.
• Rapid Prototyping & Production: Shorter lead times for tooling and production, allowing for quicker market entry.
• Superior Aesthetics: Advanced techniques like pressure forming can achieve high-quality surface finishes suitable for visible exterior parts.

Technical Specifications for Thermoformed Vehicle Components

When considering thermoformed vehicle roofs and other automotive panels, key technical specifications often include:

• Part Dimensions: Capable of forming parts up to X feet by Y feet (e.g., 10 feet x 5 feet) or larger for single sheet forming.
• Material Thickness: Ranging from 0.060 inches up to 0.500 inches for heavy gauge thermoforming.
• Tolerances: Typically ±0.030 to ±0.060 inches, depending on part geometry and material.
• Surface Finish: Available in various textures (e.g., smooth, haircell, matte) and colors, with options for UV stabilizers and custom painting.
• Environmental Resistance: Excellent resistance to UV degradation, moisture, and common automotive chemicals.
• Impact Strength: High impact resistance suitable for demanding exterior parts.

We work closely with clients to define and meet precise specifications for every project.

Related Applications in Transportation

Beyond vehicle roofs and automotive panels, thermoforming is extensively used across the broader transportation sector:

• Mass Transit: Interior panels, seatbacks, and window frames for buses and trains.
• Aerospace: Interior cabin components, tray tables, and cargo containers.
• Marine: Boat hulls, dashboards, and storage compartments.
• Agricultural Equipment: Tractor hoods, fender flares, and interior cab components.

The versatility of heavy gauge thermoforming makes it an invaluable process for creating durable and functional components in these diverse industries.

Frequently Asked Questions (FAQ) about Thermoformed Automotive Components

What are the main benefits of using thermoforming for vehicle roofs? Thermoforming offers significant benefits for vehicle roofs, including lightweight construction for improved fuel efficiency, excellent durability and impact resistance, design flexibility for complex shapes, cost-effectiveness for medium-to-high volume production, and resistance to UV and harsh weather conditions.

What materials are commonly used for thermoformed automotive components? Common materials include ABS plastic (Acrylonitrile Butadiene Styrene) for its impact resistance and formability, HDPE (High-Density Polyethylene) for its chemical resistance and toughness, Polypropylene for its fatigue resistance, and Acrylic for its optical clarity and weatherability. Material selection depends on specific application requirements.

Can thermoforming create large, single-sheet vehicle roof parts? Yes, heavy gauge thermoforming and single sheet forming techniques are ideal for producing large, seamless vehicle roof sections. These methods allow for the creation of substantial plastic panels that can then be assembled to form a complete roof structure, as seen in many recreational vehicle parts and utility vehicle parts.

Is thermoforming suitable for exterior automotive parts? Absolutely. Thermoformed plastic panels are widely used for exterior parts due to their ability to withstand environmental exposure, impact, and UV radiation. Advanced materials and finishing options ensure excellent aesthetics and long-term performance for parts like vehicle roofs, fender flares, and body panels.

Partner with Us for Your Automotive Thermoforming Needs

With a deep understanding of thermoforming processes and materials, we are equipped to be your trusted partner for producing high-quality automotive components. From initial design to final production, our team ensures precision, durability, and cost-efficiency for your vehicle roof, automotive panels, and other specialized exterior parts. Contact us today to discuss your project requirements and discover the advantages of custom thermoforming.
