AM-X RANGE · ENTRY

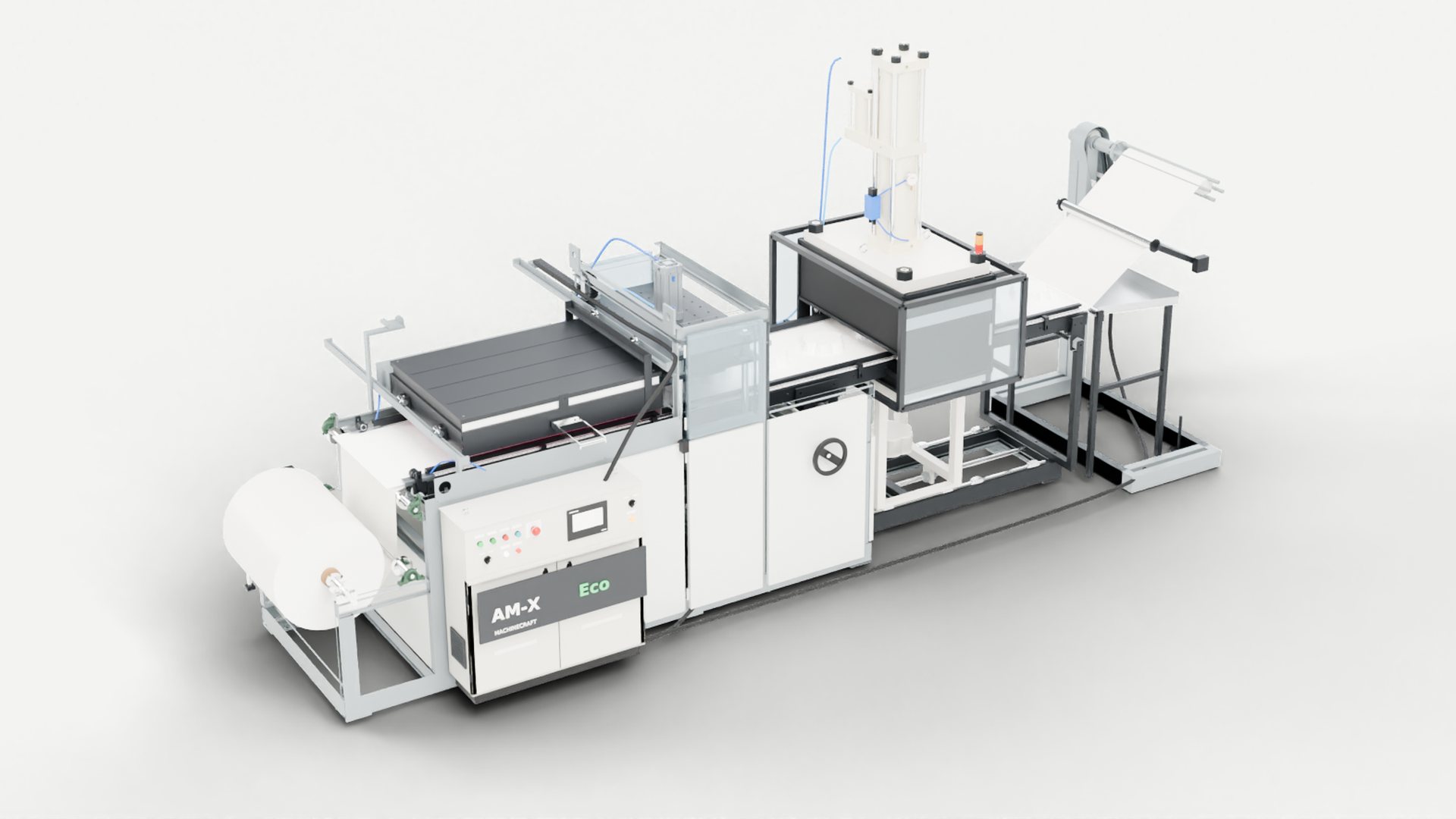

AM-X Eco
Vacuum forming and inline trimming, ready to run.
The Eco takes the proven AM 5060 mechanics and adds what a modern shop floor expects: a guarded press, recipe screens and remote service.
From ₹25 lakh, ex-works Umargam, GST 18% extra · delivery 16–20 weeks
Get a quoteRun the Eco simulator
Benefits
Form and trim in one line
A 40 t hydro-pneumatic press cuts parts from the web as they leave the forming station.
Set up in minutes
Recipes on a 7″ screen store heater zones, index and timings for each job.
Supported from Umargam
A 4G link lets our engineers see the machine and help without a site visit.

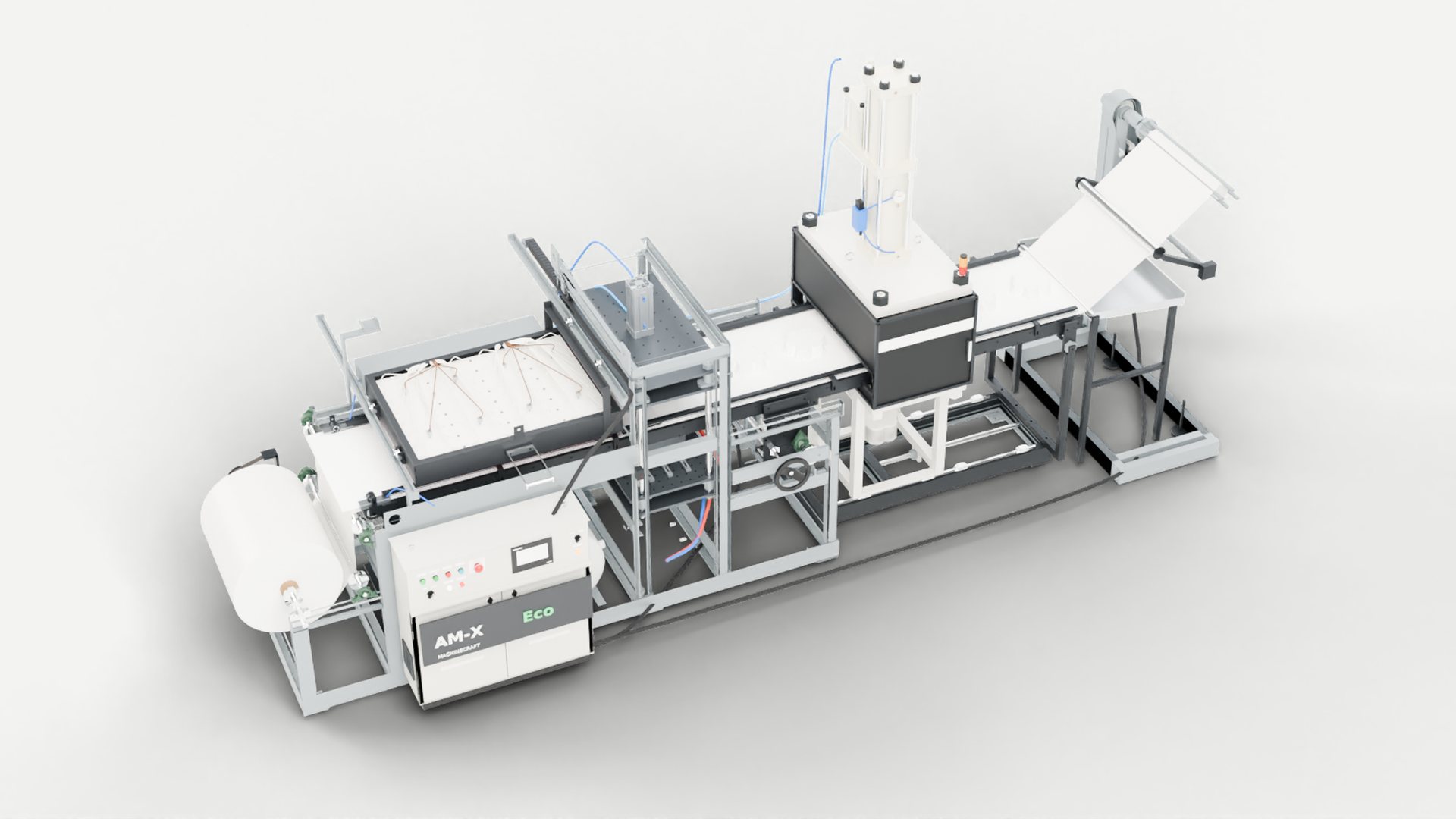

Inside the AM-X Eco
Sheet runs from the roll, through the oven and forming station, into the trim press, and the skeleton winds up at the end.

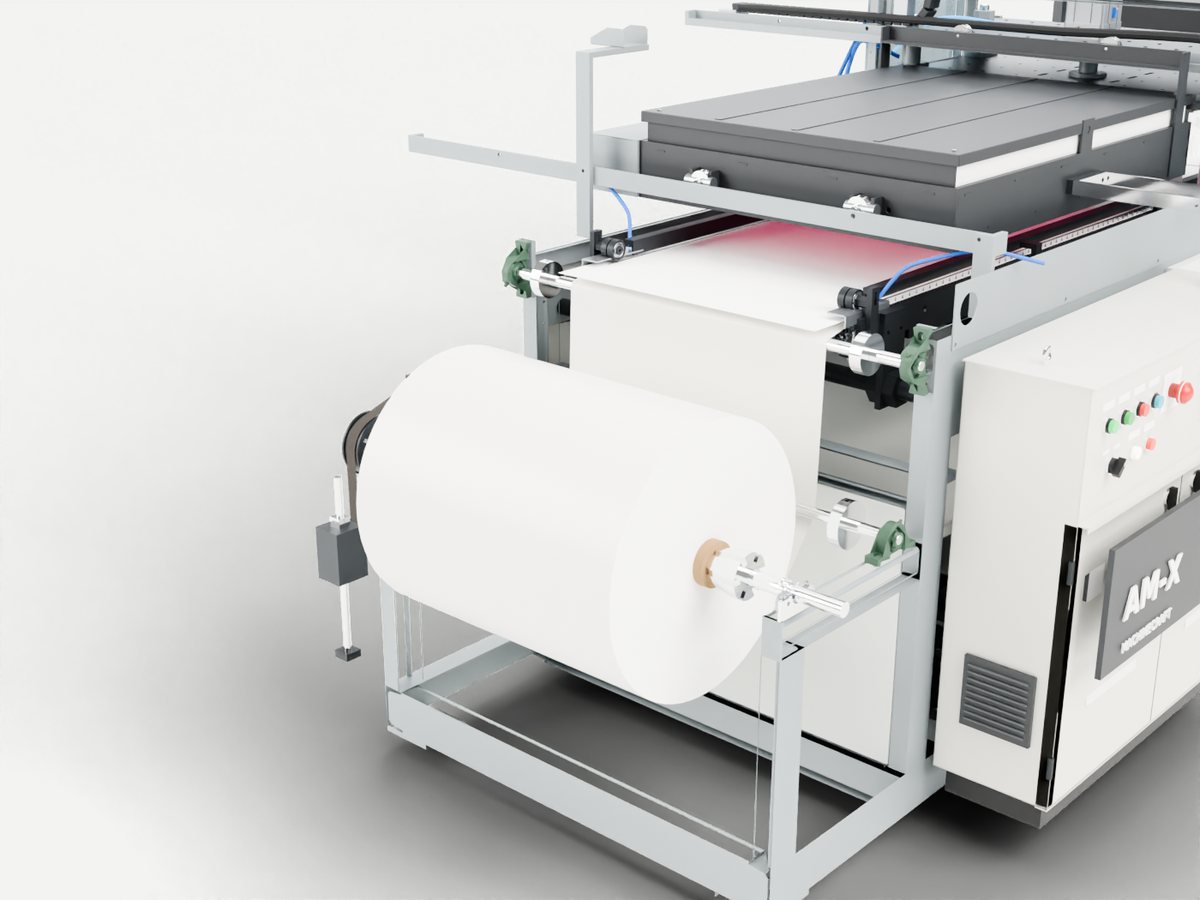

- Unwind: Roll on frame, belt brake, Ø600 mm / 150 kg
- Oven: 32 ceramic heaters, 8 zones, graphite hood

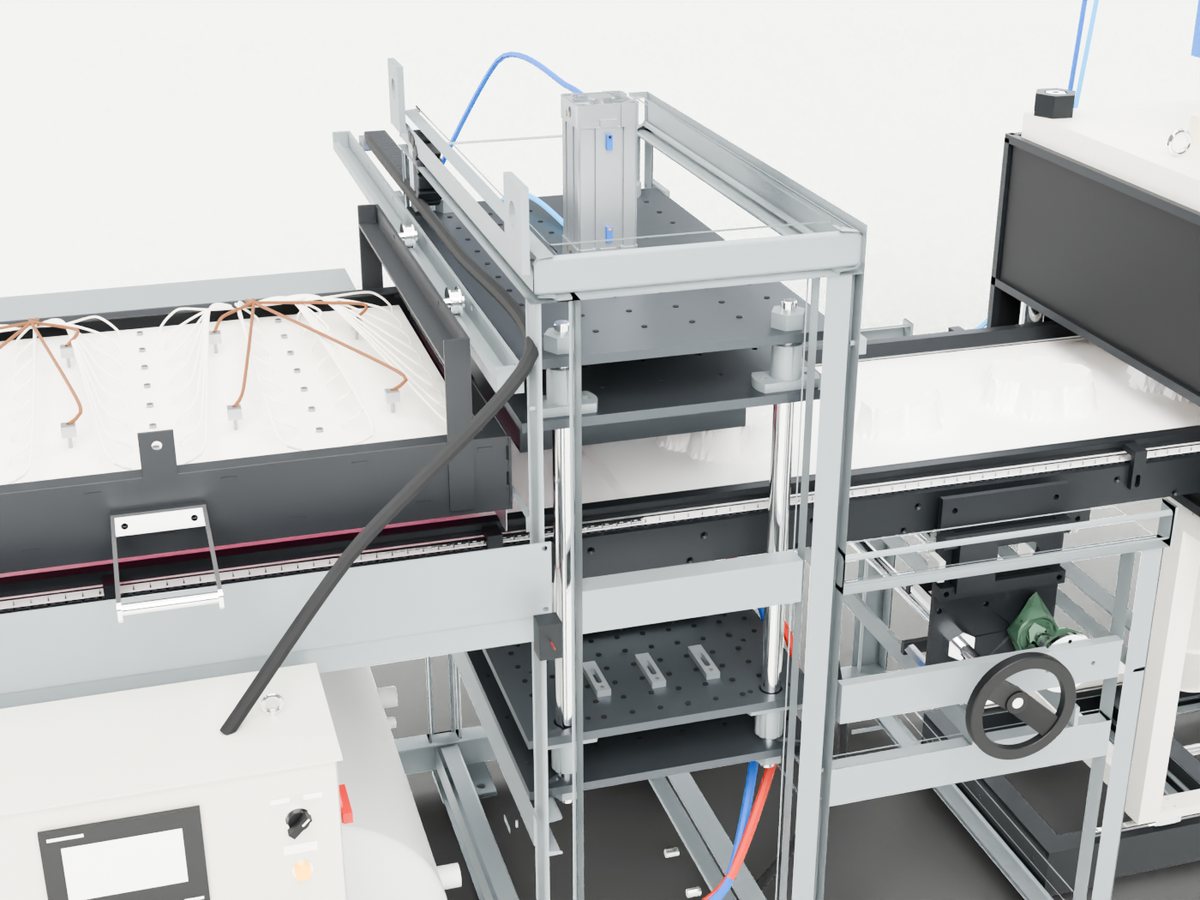

- Forming: Vacuum, pneumatic platens

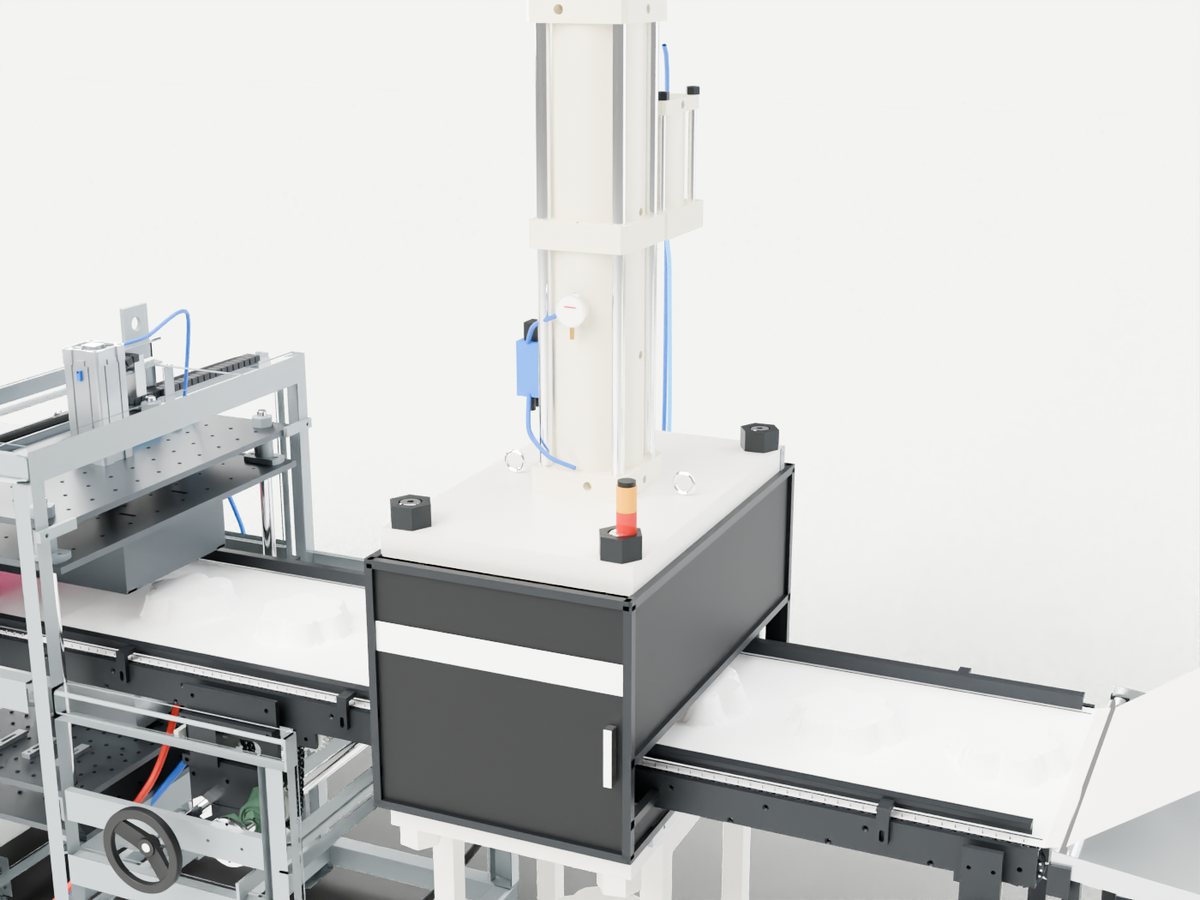

- Trim press: 40 t hydro-pneumatic, guarded
- Winder: Clutch winder takes up the skeleton
Specifications
| Specification | Value |
|---|
| Forming area | 500 × 600 mm |
|---|
| Sheet width, max | 680 mm |
|---|
| Sheet thickness | 0.3–1.0 mm |
|---|
| Forming depth | 100 mm below, 90 mm above sheet |
|---|
| Index length | up to 600 mm |
|---|
| Materials | HIPS, PET, PVC |
|---|
| Roll, max | Ø600 mm, 150 kg |
|---|
| Unwind | Roll on frame, belt brake |
|---|
| Heating | 32 ceramic × 500 W, top, 8 zones |
|---|
| Index drive | 1.5 kW servo, 1:30 worm |
|---|
| Forming | Vacuum, pneumatic platens |
|---|
| Trim press | 40 t hydro-pneumatic, bed 750 × 550 mm, 400 mm daylight |
|---|
| Output handling | Clutch winder |
|---|
| Output, reference job | ≈ 12 cycles/min |
|---|
| Controls | Mitsubishi FX5U, 7″ screen, 50 recipes |
|---|
| Remote service | 4G router |
|---|
| Footprint L × W × H | 5.8 × 1.9 × 2.6 m |
|---|
| Machine weight | ≈ 2.7 t |
|---|
Specifications are design targets, confirmed at order.
Reference job: one-up tray, 0.6 mm HIPS, 340 mm index, simulated.
What you need on site
| Utility | Requirement |
|---|
| Power | 415 V, 3-phase, 50 Hz, ≈ 20 kW |
|---|
| Compressed air | 6 bar, ≈ 0.6 m³/min |
|---|
| Vacuum | Rotary vane pump, 600 l/min, with tank (supplied) |
|---|
| Cooling water | Not needed (chiller optional) |
|---|
Options and services
| Option | Price |
|---|
| Without inline press (Eco-V) | − ₹3.70 lakh |
|---|
| Mould water chiller, 5 kW | + ₹3.50 lakh |
|---|
| Installation by Machinecraft | ₹50,000 |
|---|
| Operator training, 2 days | ₹50,000 |
|---|
Ex-works Umargam, Gujarat. GST 18%, packing, freight and insurance extra.
50% advance with order, 50% before dispatch.
12 months from commissioning.

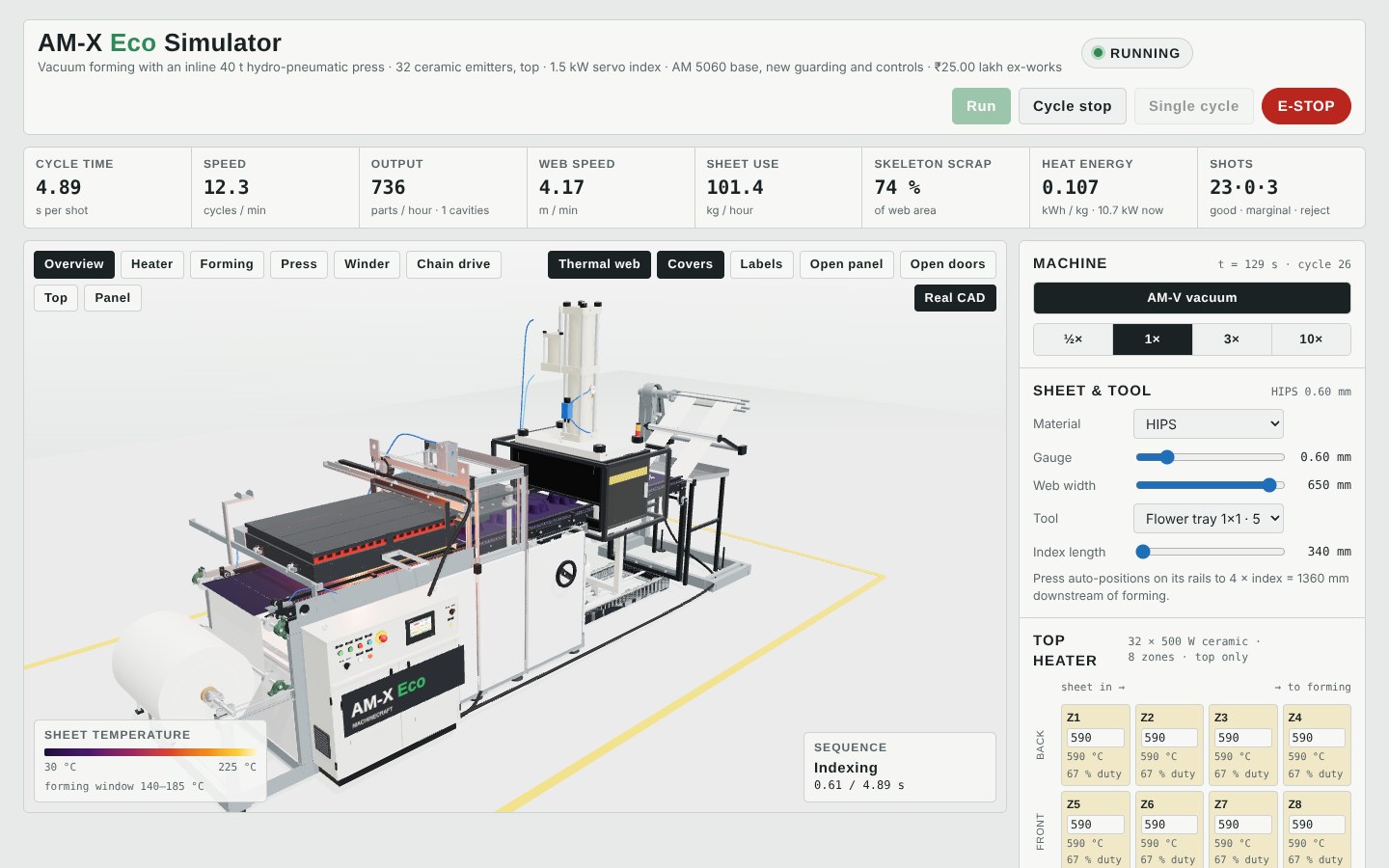

Run the Eco in your browser
Change the material, gauge and tool and watch the cycle, the sheet temperature and the parts. Send us your part and we will run it for you.
Run the Eco simulator
