AM-X RANGE · PRESSURE FORMING

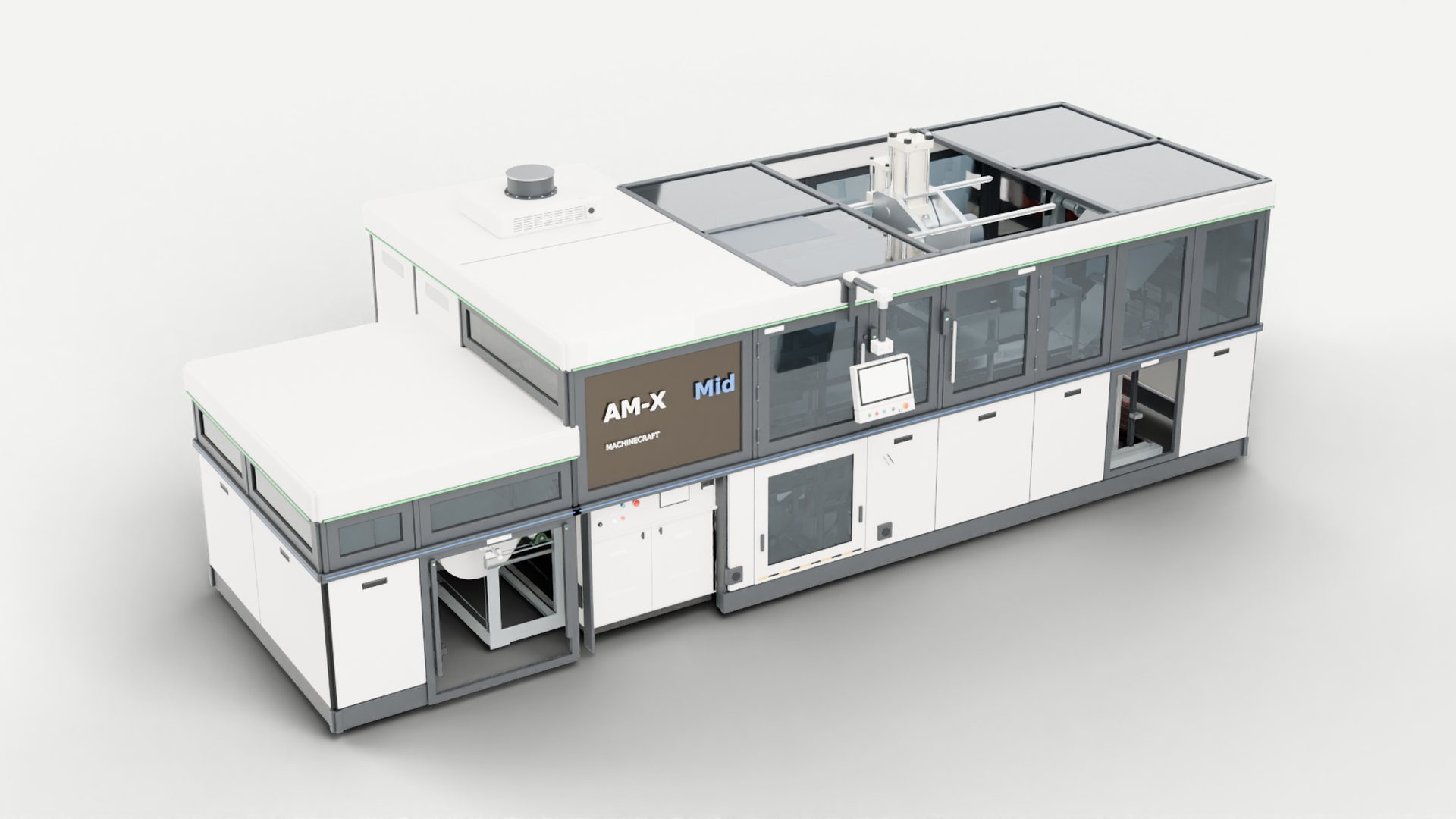

AM-X Mid
Sharper parts with pressure forming.
The Mid adds a top and bottom quartz oven and toggle-locked platens, so thicker sheet and crisper detail come within reach, in a fully enclosed machine.
From ₹40 lakh, ex-works Umargam, GST 18% extra · delivery 24–28 weeks
Get a quoteRun the Mid simulator
Benefits
Heat from both sides

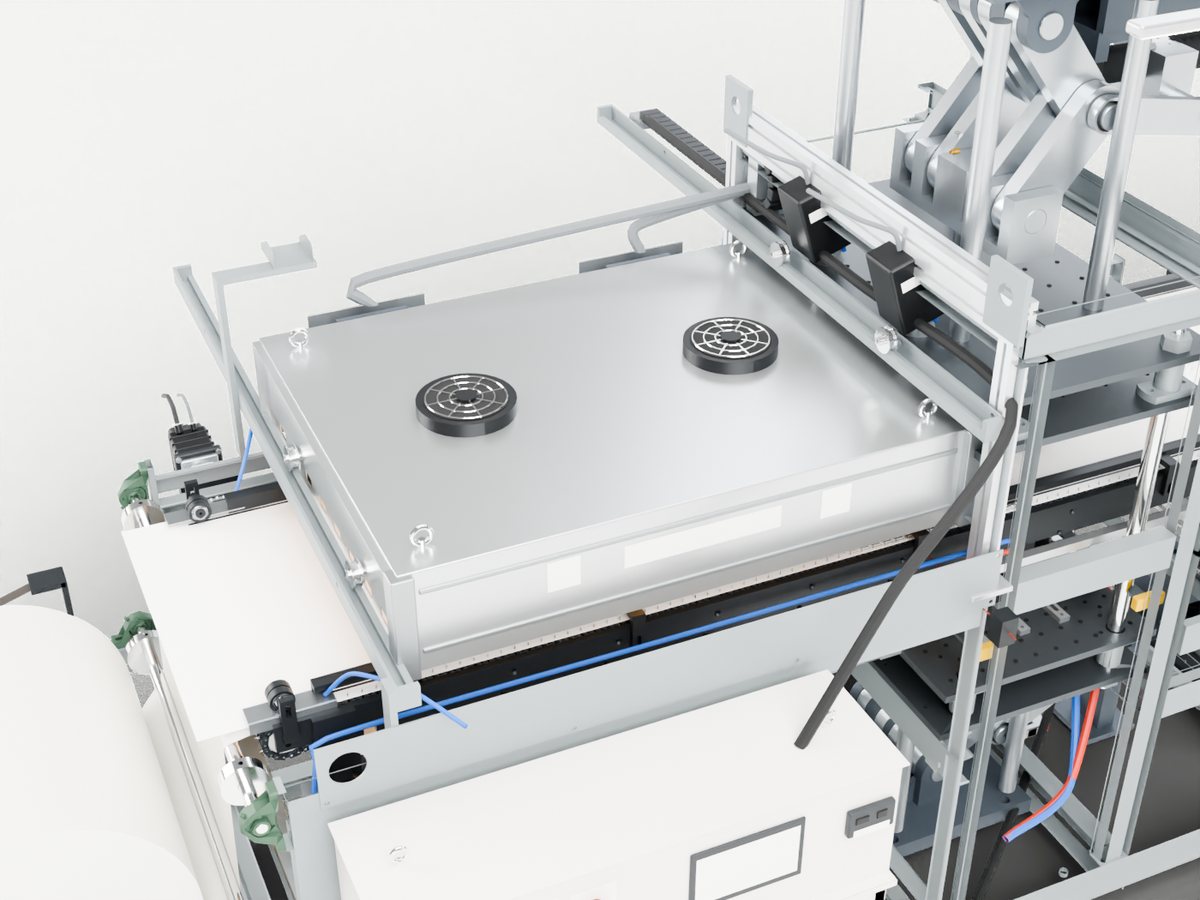

64 quartz emitters in 16 zones, with a pyrometer watching the sheet, bring PP and thicker gauges into range.
Pressure where vacuum stops
Platens lock over centre and hold up to 1 bar of forming pressure.
Fully enclosed
Guard-locking doors, a light curtain at the output and a safety controller.
Inside the AM-X Mid

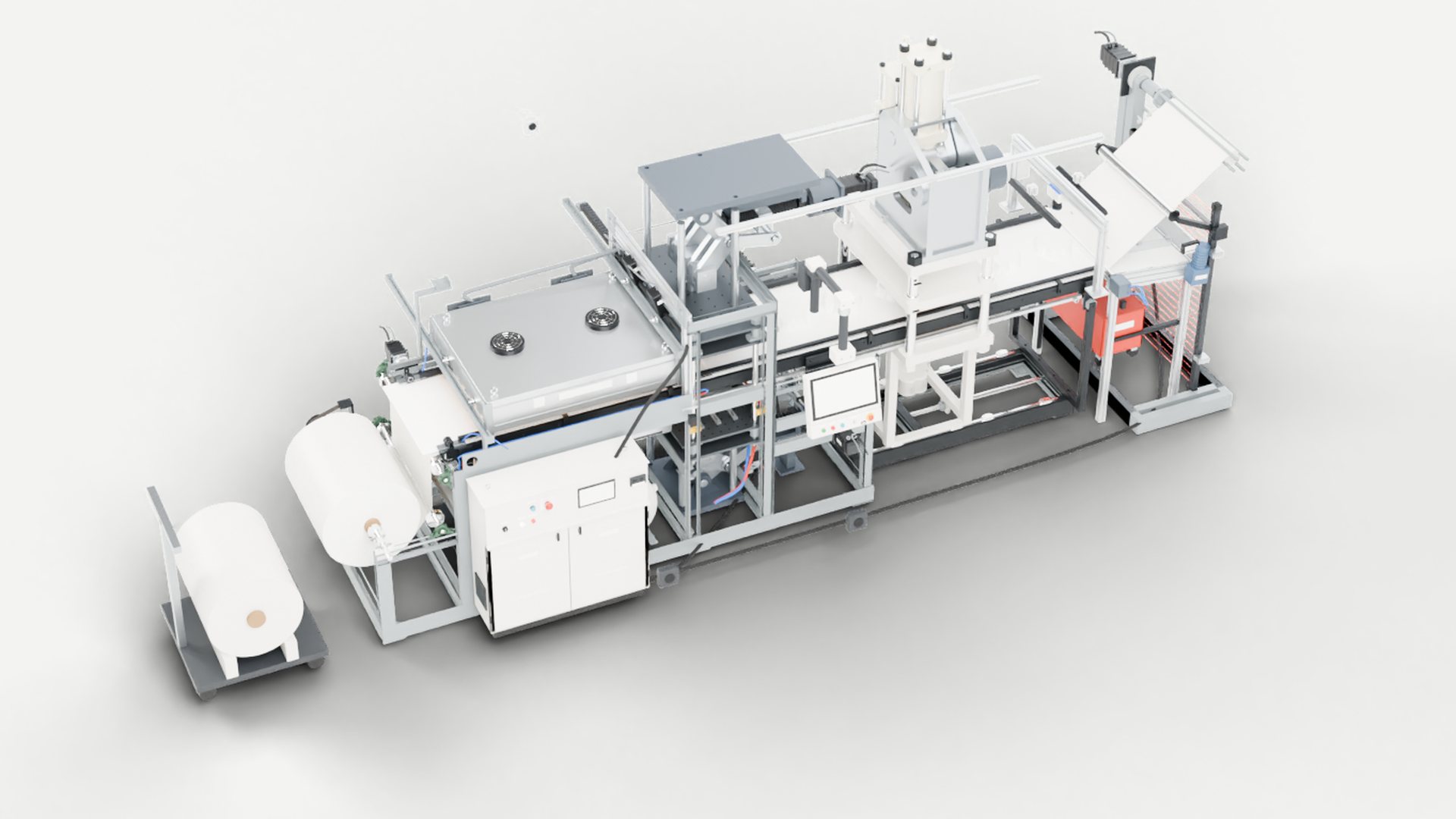

Sheet runs from the roll, through the oven and forming station, into the trim press, and the skeleton winds up at the end.
- Unwind: Air shaft, pneumatic brake, dancer, Ø800 mm / 300 kg
- Oven: 64 quartz, top + bottom, 16 zones, pyrometer

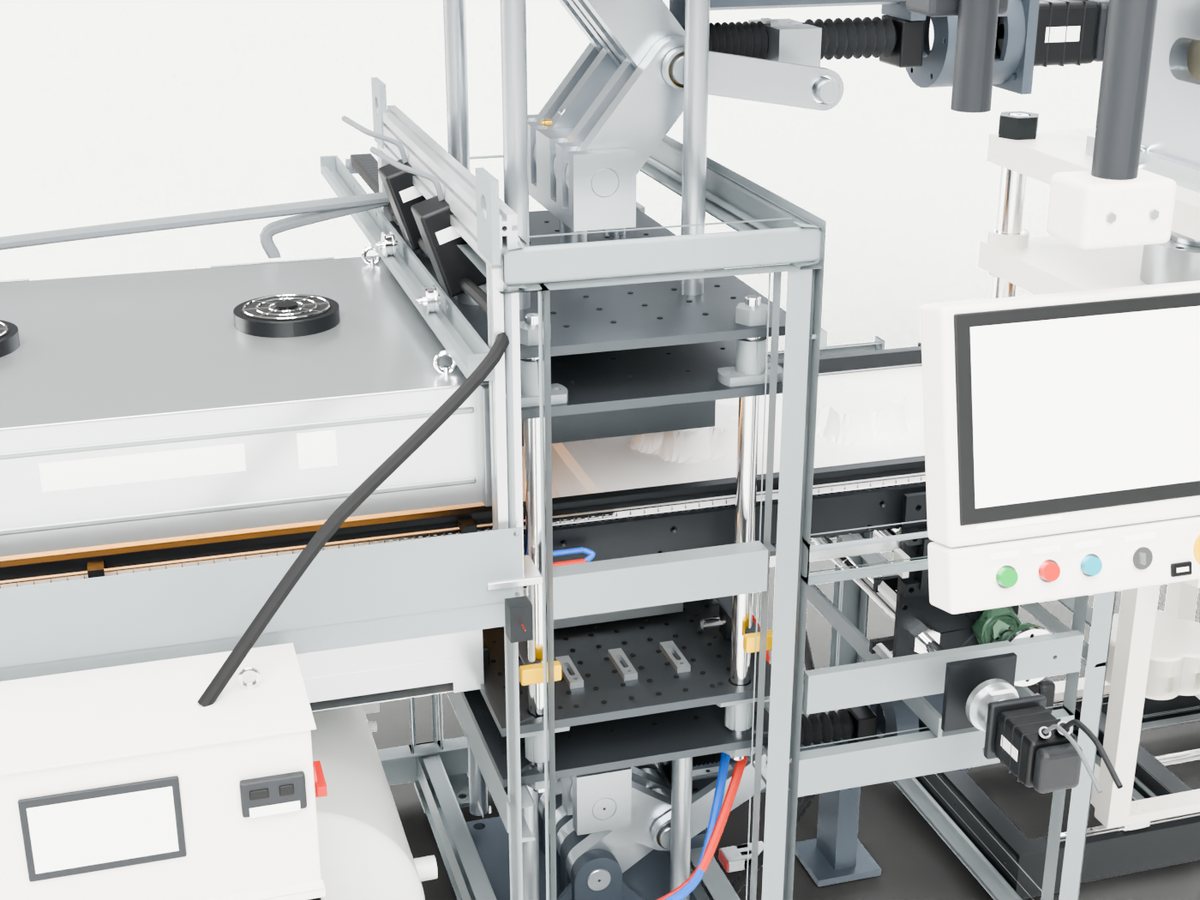

- Forming: Vacuum + 1 bar, pneumatic toggles

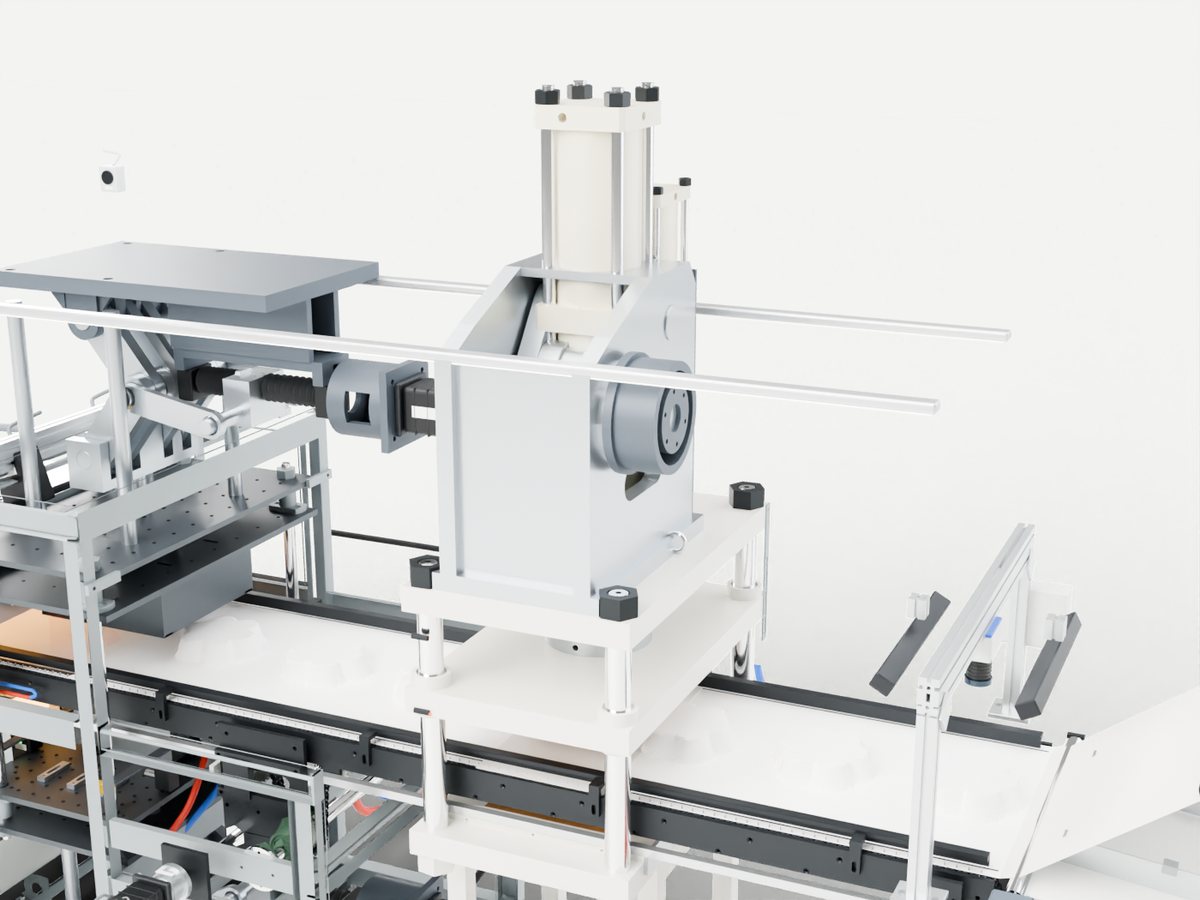

- Trim press: 40 t hydro-pneumatic
- Output: Servo winder and conveyor
Specifications
| Specification | Value |
|---|
| Forming area | 500 × 600 mm |
|---|
| Sheet width, max | 680 mm |
|---|
| Sheet thickness | 0.3–1.5 mm |
|---|
| Forming depth | 100 mm below, 90 mm above sheet |
|---|
| Index length | up to 600 mm |
|---|
| Materials | HIPS, PET, PVC, PP, ABS |
|---|
| Roll, max | Ø800 mm, 300 kg |
|---|
| Unwind | Air shaft, pneumatic brake, dancer |
|---|
| Heating | 64 quartz, top + bottom, 16 zones, pyrometer |
|---|
| Index drive | 1 kW servo, planetary |
|---|
| Forming | Vacuum + pressure to 1 bar, pneumatic toggles |
|---|
| Trim press | 40 t hydro-pneumatic, bed 750 × 550 mm, 400 mm daylight |
|---|
| Output handling | Servo winder, conveyor |
|---|
| Output, reference job | ≈ 15 cycles/min |
|---|
| Controls | Mitsubishi FX5U motion, 10″ screen, 100 recipes |
|---|
| Remote service | Industrial remote access |
|---|
| Footprint L × W × H | 7.0 × 3.3 × 2.6 m |
|---|
| Machine weight | ≈ 4.0 t |
|---|
Specifications are design targets, confirmed at order.
Reference job: one-up tray, 0.6 mm HIPS, 340 mm index, simulated.
What you need on site
| Utility | Requirement |
|---|
| Power | 415 V, 3-phase, 50 Hz, ≈ 33 kW |
|---|
| Compressed air | 6 bar, ≈ 0.5 m³/min |
|---|
| Vacuum | Rotary vane pump, 600 l/min, with tank (supplied) |
|---|
| Cooling water | Plant water to the chain rails, ≈ 5 l/min |
|---|
Options and services
| Option | Price |
|---|
| Vision inspection + reject flap | + ₹7.10 lakh |
|---|
| 600 kg servo unwind stand | + ₹6.80 lakh |
|---|
| Mould water chiller, 5 kW | + ₹3.50 lakh |
|---|
| Installation by Machinecraft | ₹50,000 |
|---|
| Operator training, 2 days | ₹50,000 |
|---|
Ex-works Umargam, Gujarat. GST 18%, packing, freight and insurance extra.
50% advance with order, 50% before dispatch.
12 months from commissioning.

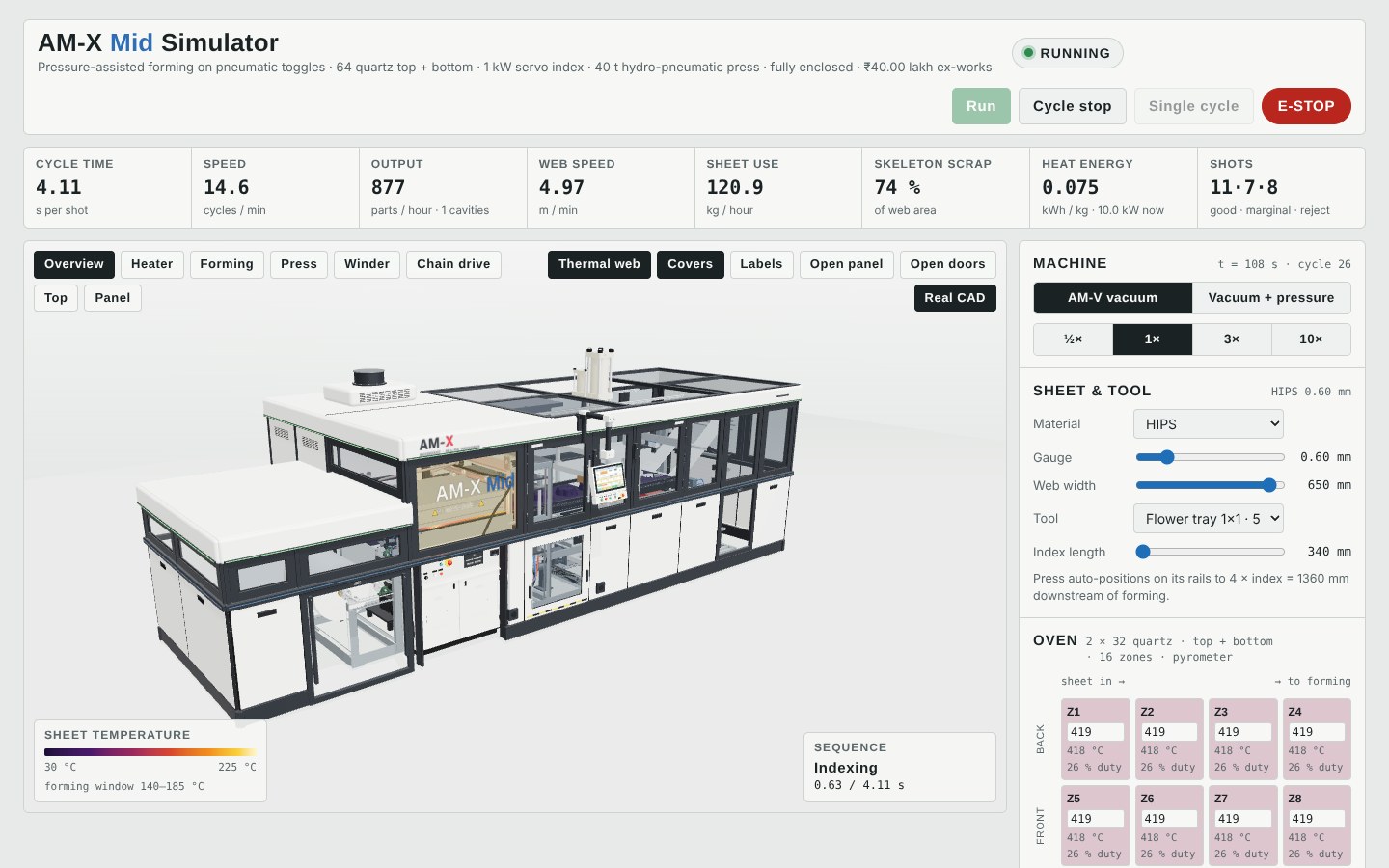

Run the Mid in your browser
Change the material, gauge and tool and watch the cycle, the sheet temperature and the parts. Send us your part and we will run it for you.
Run the Mid simulator
Other models
AM-X EcoFrom ₹25 lakh, ex-works Umargam, GST 18% extra
AM-X ProFrom ₹90 lakh, ex-works Umargam, GST 18% extra
