ROLL-FED THIN-GAUGE THERMOFORMING

AM-X: roll-fed thermoforming in three levels

One 500 × 600 mm platform for trays, lids, blisters and clamshells. Start with the Eco, step up to pressure forming with the Mid, or run an all-servo line with the Pro. Your AM 5060 tools carry across.

Get a quote Run each machine in your browser

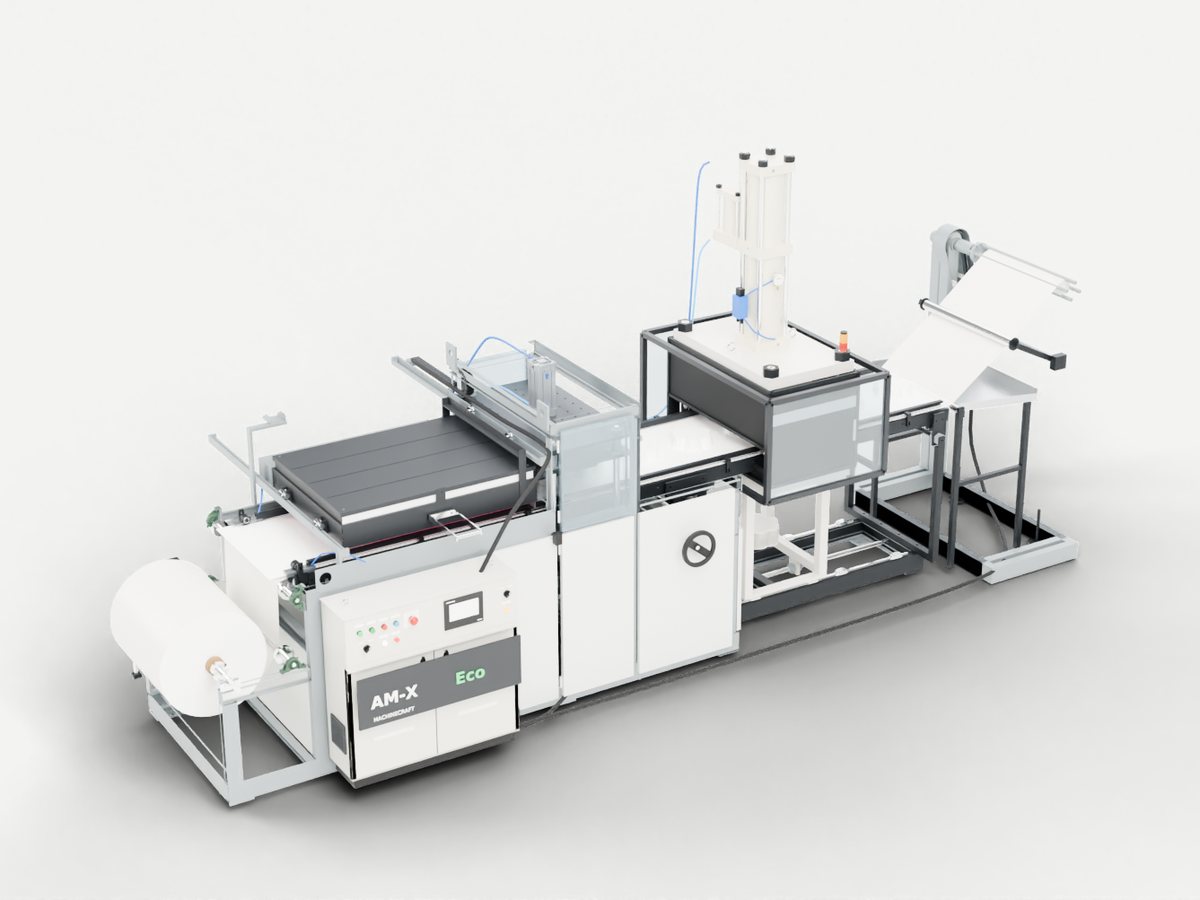

AM-X Eco

Vacuum forming and inline trimming, ready to run.

From ₹25 lakh, ex-works Umargam, GST 18% extra

0.3–1.0 mm

32 ceramic × 500 W, top, 8 zones

Vacuum, pneumatic platens

≈ 12 cycles/min

Reference job: one-up tray, 0.6 mm HIPS, 340 mm index, simulated.

See the Eco

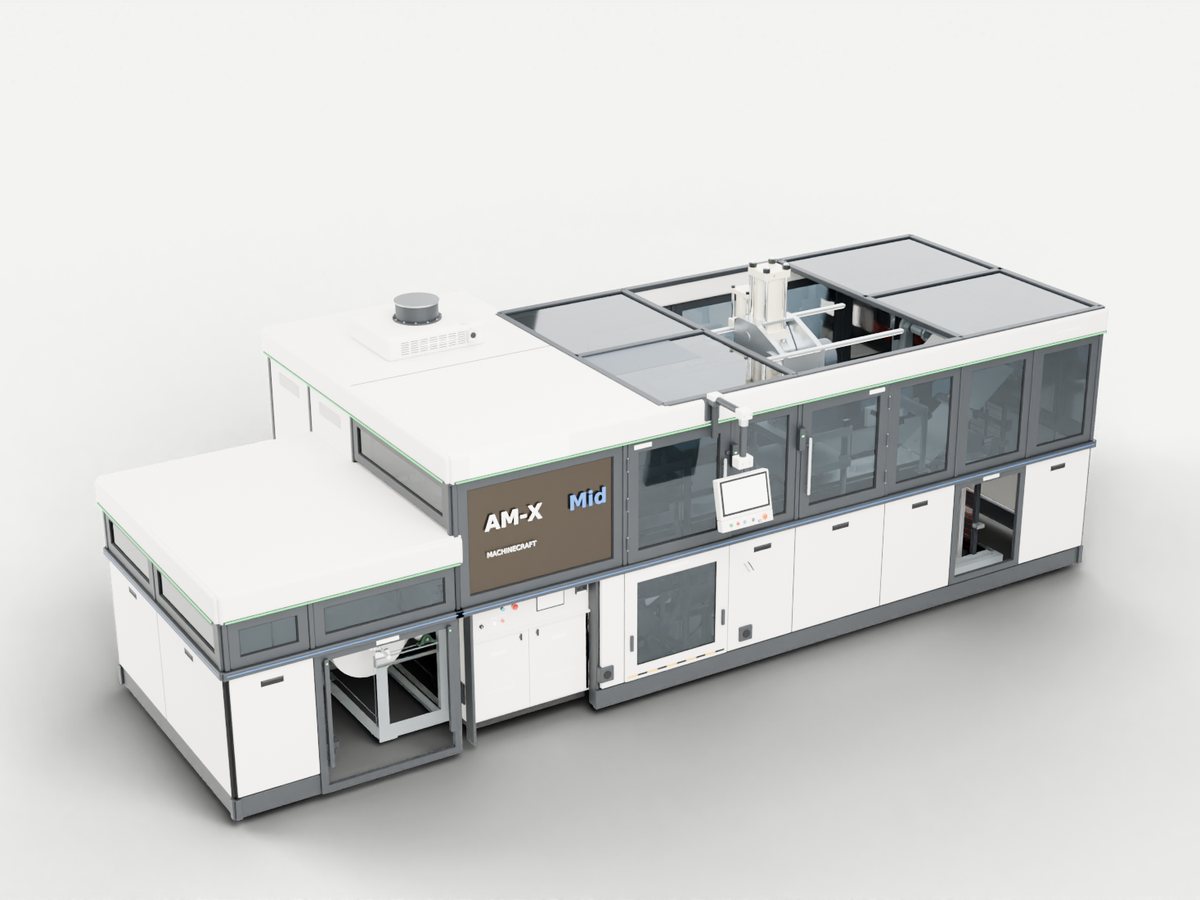

AM-X Mid

Sharper parts with pressure forming.

From ₹40 lakh, ex-works Umargam, GST 18% extra

0.3–1.5 mm

64 quartz, top + bottom, 16 zones, pyrometer

Vacuum + pressure to 1 bar, pneumatic toggles

≈ 15 cycles/min

Reference job: one-up tray, 0.6 mm HIPS, 340 mm index, simulated.

See the Mid

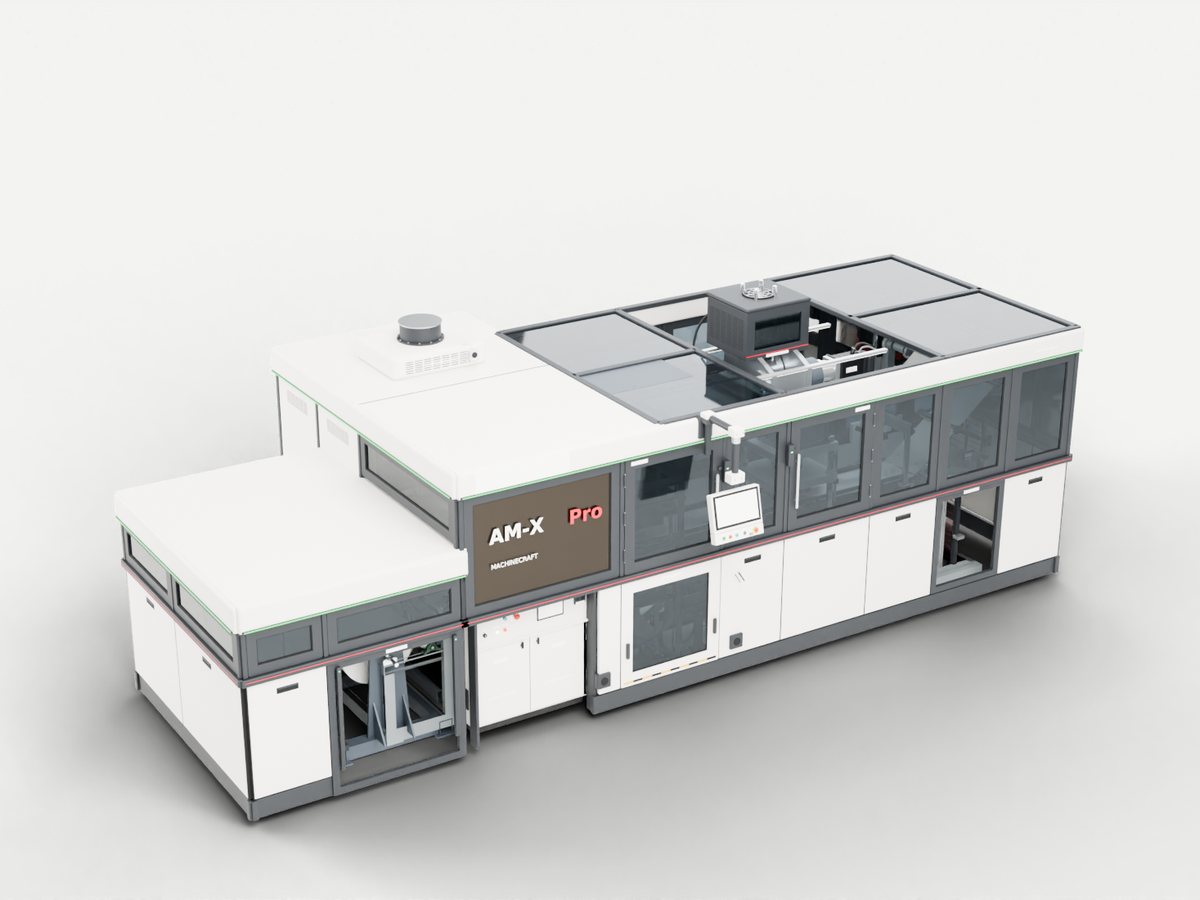

AM-X Pro

All-servo, closed-loop, inspected inline.

From ₹90 lakh, ex-works Umargam, GST 18% extra

0.3–1.5 mm

64 quartz, top + bottom, 16 zones, closed loop, 2 pyrometers

Vacuum + pressure to 1 bar, servo toggles, 180 kN at lock

≈ 21 cycles/min

Reference job: one-up tray, 0.6 mm HIPS, 340 mm index, simulated.

See the Pro

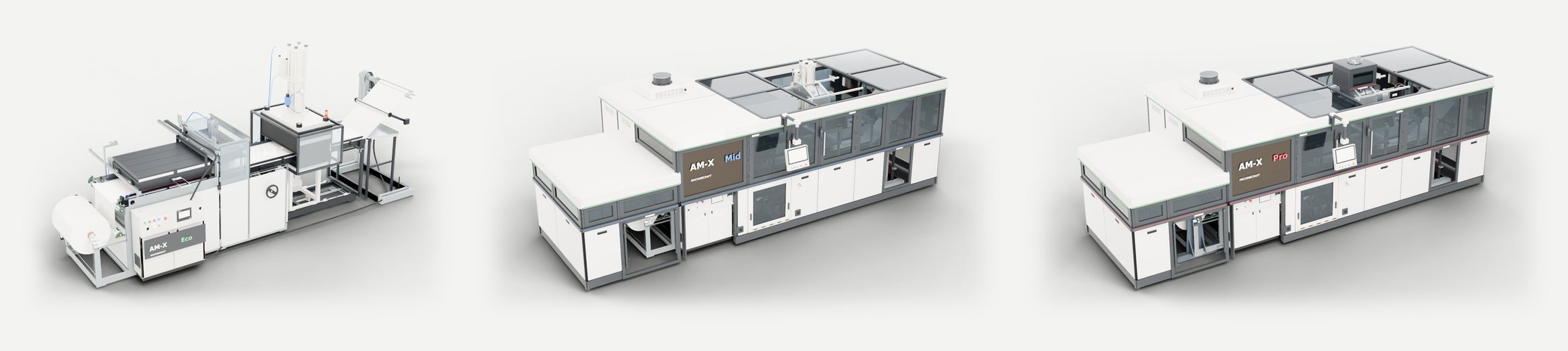

One platform, three levels of automation

- 500 × 600 mm forming area on every model, with 680 mm sheet and up to 100 mm draw.

- AM 5060 tools are designed to fit all three, so current customers keep their tooling.

- Inline trim: parts are formed and cut from the web in one line, with no separate press.

- Remote service on every machine: our engineers see the controls from Umargam.

Compare the range

Specification	AM-X Eco	AM-X Mid	AM-X Pro
Price from	₹25 lakh	₹40 lakh	₹90 lakh
Forming area	500 × 600 mm	500 × 600 mm	500 × 600 mm
Sheet width, max	680 mm	680 mm	680 mm
Sheet thickness	0.3–1.0 mm	0.3–1.5 mm	0.3–1.5 mm
Forming depth	100 mm below, 90 mm above sheet	100 mm below, 90 mm above sheet	100 mm below, 90 mm above sheet
Index length	up to 600 mm	up to 600 mm	up to 600 mm
Materials	HIPS, PET, PVC	HIPS, PET, PVC, PP, ABS	HIPS, PET, PVC, PP, ABS
Roll, max	Ø600 mm, 150 kg	Ø800 mm, 300 kg	Ø1000 mm, 600 kg
Unwind	Roll on frame, belt brake	Air shaft, pneumatic brake, dancer	Servo stand, load-cell tension
Heating	32 ceramic × 500 W, top, 8 zones	64 quartz, top + bottom, 16 zones, pyrometer	64 quartz, top + bottom, 16 zones, closed loop, 2 pyrometers
Index drive	1.5 kW servo, 1:30 worm	1 kW servo, planetary	2 kW servo, 1:5 planetary, motorised width
Forming	Vacuum, pneumatic platens	Vacuum + pressure to 1 bar, pneumatic toggles	Vacuum + pressure to 1 bar, servo toggles, 180 kN at lock
Trim press	40 t hydro-pneumatic, bed 750 × 550 mm, 400 mm daylight	40 t hydro-pneumatic, bed 750 × 550 mm, 400 mm daylight	Servo crank-toggle, 400 kN, 60 mm stroke
Output handling	Clutch winder	Servo winder, conveyor	Servo winder, conveyor, vision, reject flap
Output, reference job	≈ 12 cycles/min	≈ 15 cycles/min	≈ 21 cycles/min
Controls	Mitsubishi FX5U, 7″ screen, 50 recipes	Mitsubishi FX5U motion, 10″ screen, 100 recipes	Mitsubishi Q-series, 15″ screen, 200 recipes
Remote service	4G router	Industrial remote access	Industrial remote access
Footprint L × W × H	5.8 × 1.9 × 2.6 m	7.0 × 3.3 × 2.6 m	7.0 × 3.3 × 2.6 m, plus 0.8 m chiller
Machine weight	≈ 2.7 t	≈ 4.0 t	≈ 4.6 t
Power	415 V, 3-phase, 50 Hz, ≈ 20 kW	415 V, 3-phase, 50 Hz, ≈ 33 kW	415 V, 3-phase, 50 Hz, ≈ 50 kW
Compressed air	6 bar, ≈ 0.6 m³/min	6 bar, ≈ 0.5 m³/min	6 bar, ≈ 0.2 m³/min
Vacuum	Rotary vane pump, 600 l/min, with tank (supplied)	Rotary vane pump, 600 l/min, with tank (supplied)	Rotary vane pump, 100 m³/h, with tank (supplied)
Cooling water	Not needed (chiller optional)	Plant water to the chain rails, ≈ 5 l/min	Built-in 5 kW mould chiller
Delivery	16–20 weeks	24–28 weeks	24–28 weeks
Warranty	12 months from commissioning	12 months from commissioning	12 months from commissioning

Specifications are design targets, confirmed at order.

Reference job: one-up tray, 0.6 mm HIPS, 340 mm index, simulated.

What the AM-X makes

Clear PET dome lid for cold cups with a straw slot

Vented clear PET berry punnet filled with blueberries

Clear PVC hanging blister holding drill bits, sealed to a printed card

Eleven thin-gauge parts, simulated on all three models: see parts per hour for each.

Applications

Run each machine before you buy it

Change the material, gauge and tool and watch the cycle, the sheet temperature and the parts. It is the same model our engineers use to size a job.

Run the Eco Run the Mid Run the Pro

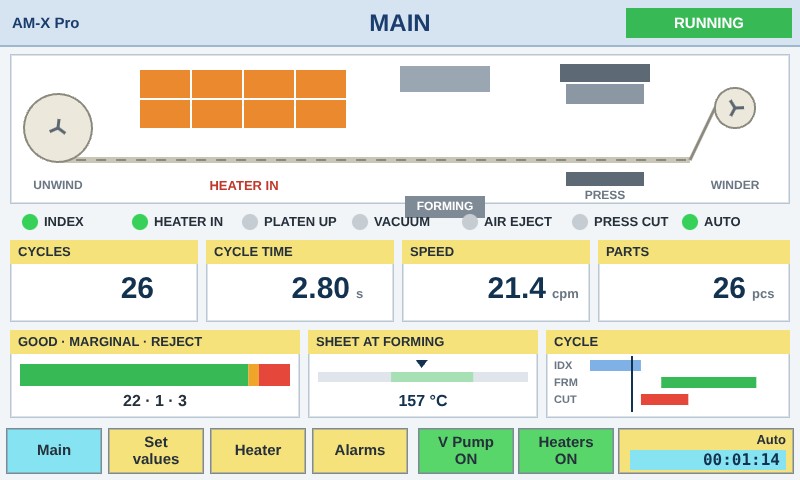

AM-X Pro operator screen: cycle, speed, parts and quality counters

FAQ

Which model is right for me?

Eco for vacuum-formed trays, lids and blisters up to 1.0 mm. Mid when you need pressure forming, PP or sheet up to 1.5 mm. Pro for long runs where output, inspection and minimum hands-on time matter.

Can I use my AM 5060 tools?

All three use the same 500 × 600 mm platens as the AM 5060, so existing forming and cutting tools are designed to fit.

What materials can it run?

HIPS, PET and PVC on all three. The Mid and Pro heat from both sides, which also suits PP and ABS. See the Materials page.

How fast is it?

On a one-up tray in 0.6 mm HIPS: about 12 cycles a minute on the Eco, 15 on the Mid and 21 on the Pro. Parts per hour depend on how many cavities fit your part; see the Applications page for eleven examples. Send us your part and we will simulate it.

Can I upgrade later?

The Mid can take vision inspection, a chiller and the 600 kg servo unwind as options. Moving from Eco to Mid or Pro means a new machine, because the oven, forming drive and enclosure change.

What do I need on site?

A 415 V three-phase supply, 6 bar compressed air and, for the Mid, cooling water to the chain rails. Each product page lists the loads.

Can I see it run before I buy?

Yes. Each model has a live 3D simulator: change the material, gauge and tool and watch the cycle and the parts.

What does delivery and installation involve?

Eco ships 16–20 weeks from order and advance; Mid and Pro 24–28 weeks. Installation and two days of operator training are available at ₹50,000 each.

Do you support machines remotely?

Yes. Every AM-X has a remote-access router, so our engineers can see the controls and help without a site visit.

Send us your part. We will size the machine.

Tell us the part, material, gauge and yearly volume; we simulate it and come back with a model and a quote.
