AM-X RANGE · ALL-SERVO

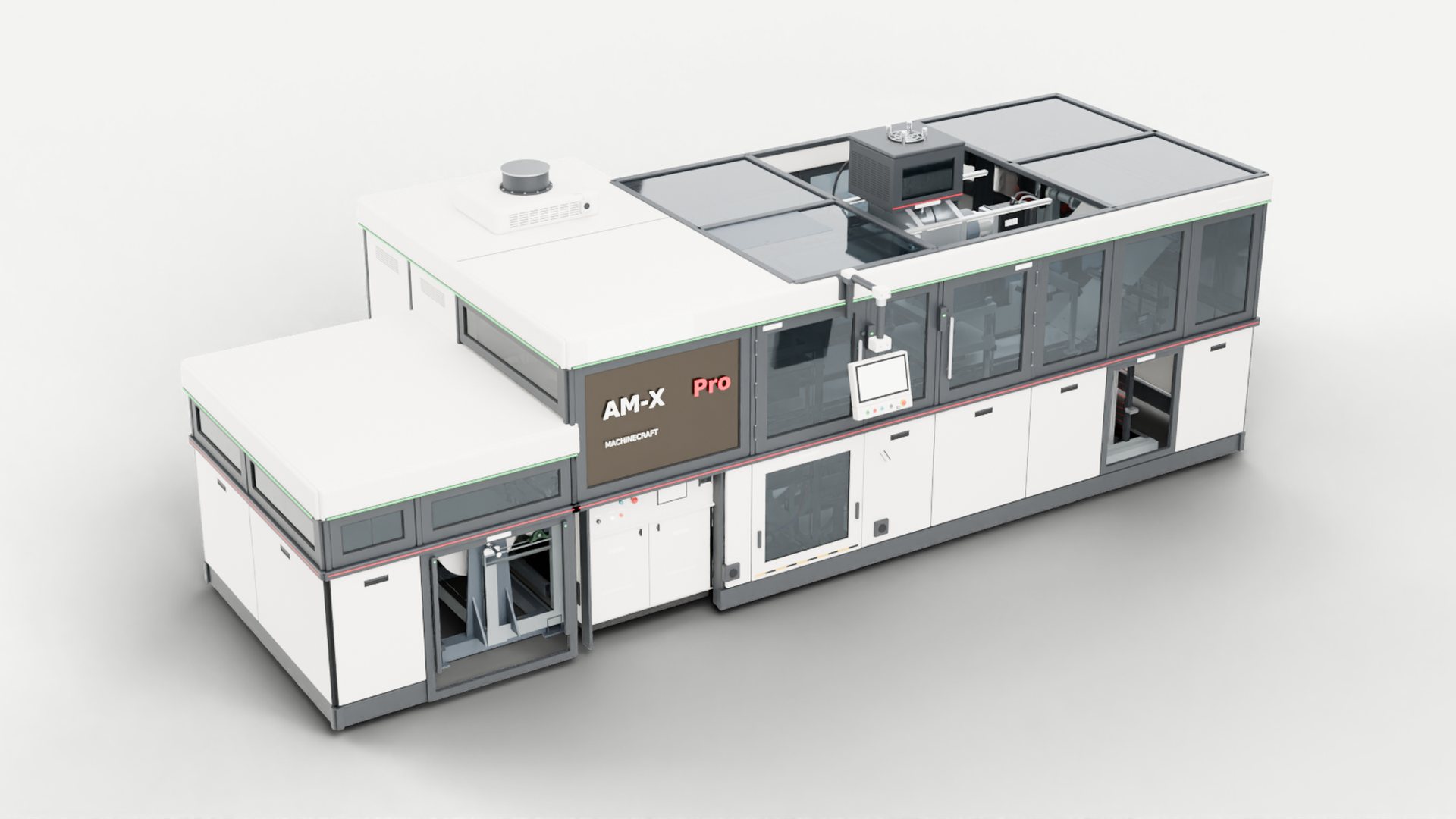

AM-X Pro
All-servo, closed-loop, inspected inline.
The Pro runs forming, index and press on servo drives, closes the heating loop on sheet temperature, and checks every part with a camera before it reaches the stack.
From ₹90 lakh, ex-works Umargam, GST 18% extra · delivery 24–28 weeks
Get a quoteRun the Pro simulator
Benefits
About 21 cycles a minute
On a one-up 0.6 mm HIPS tray, against about 12 on the Eco.
Big rolls, steady web
A 600 kg, Ø1000 mm unwind with servo tension control.
Fewer rejects reach the customer
Inline vision and a reject flap pull bad parts automatically.

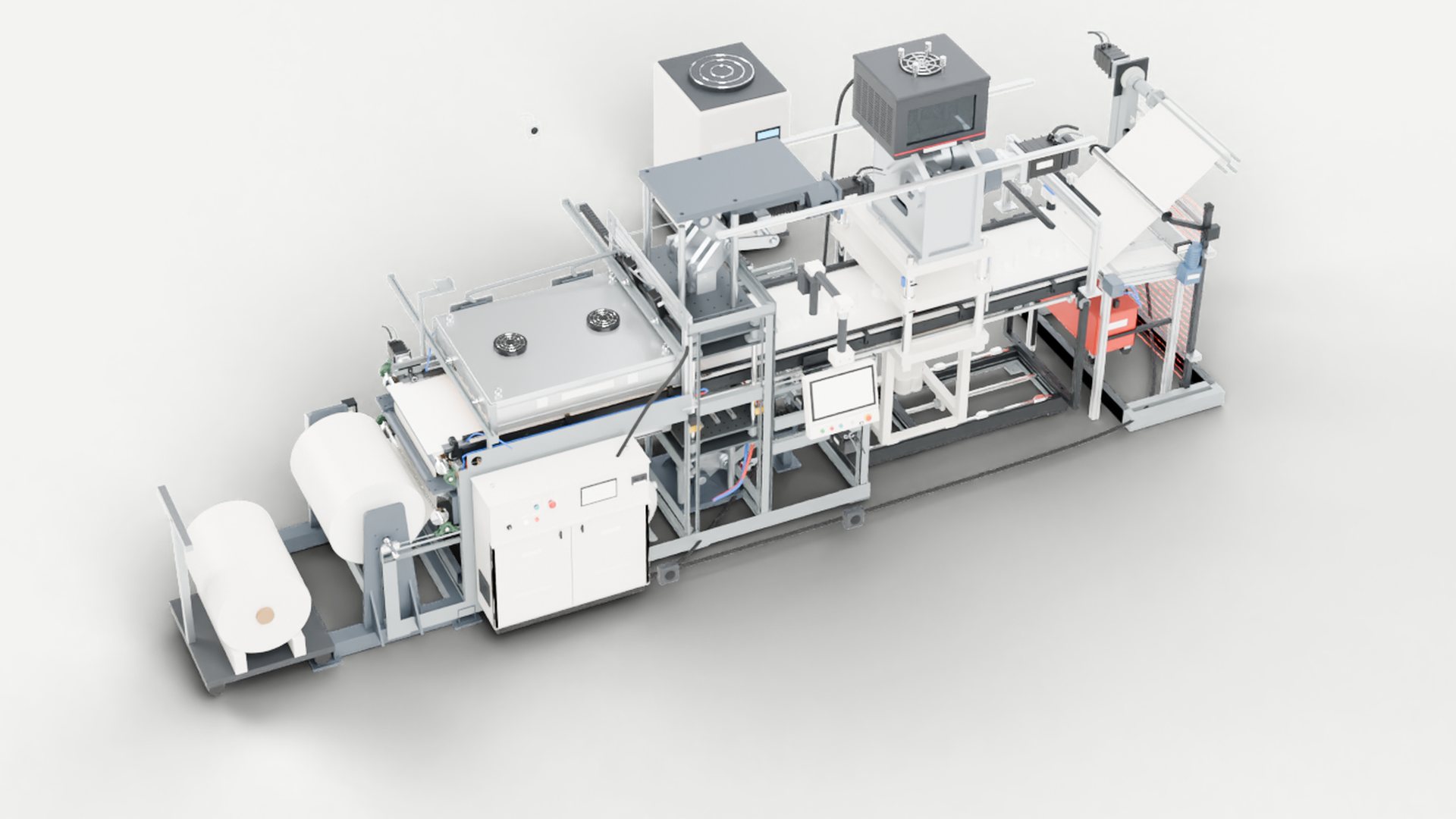

Inside the AM-X Pro
Sheet runs from the roll, through the oven and forming station, into the trim press, and the skeleton winds up at the end.

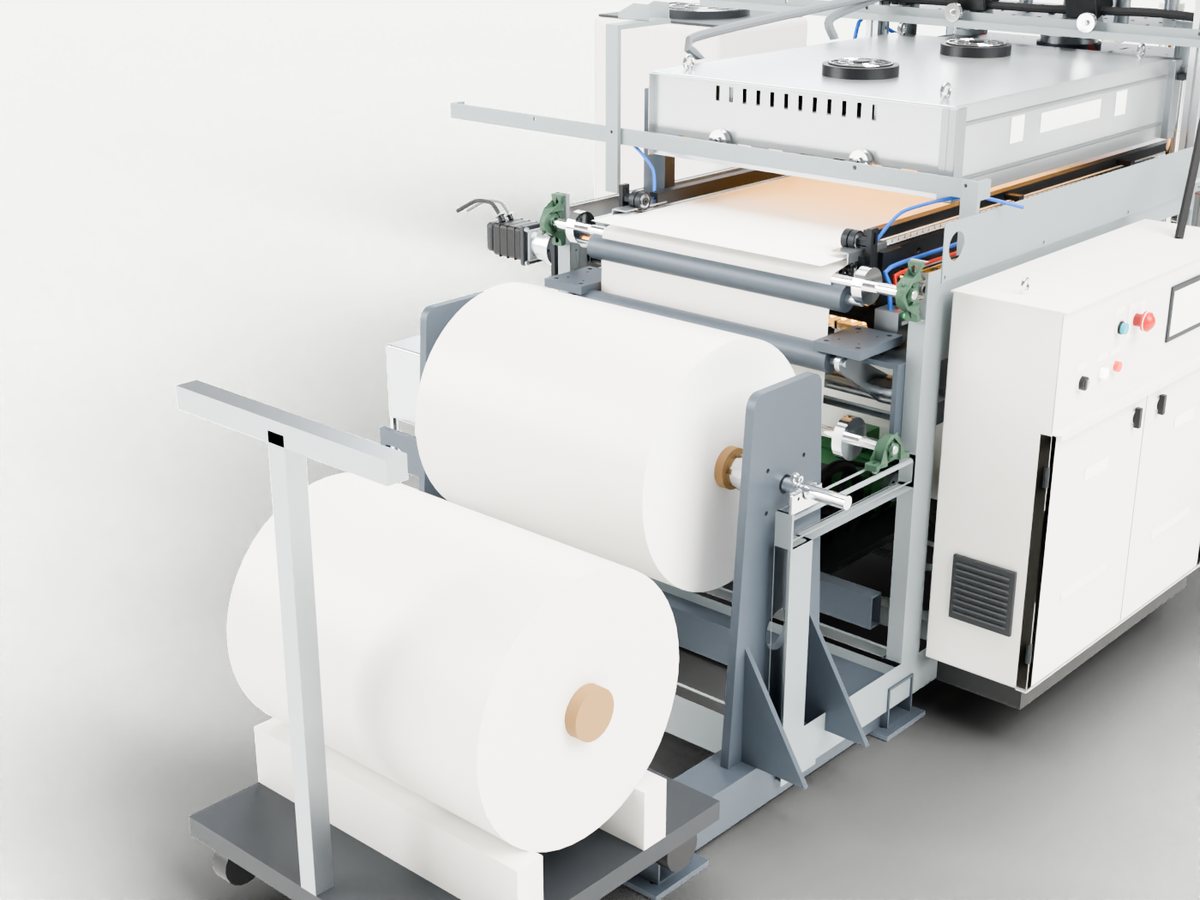

- Unwind: Servo stand, load-cell tension, Ø1000 mm / 600 kg
- Oven: 64 quartz, 16 zones, closed loop, 2 pyrometers

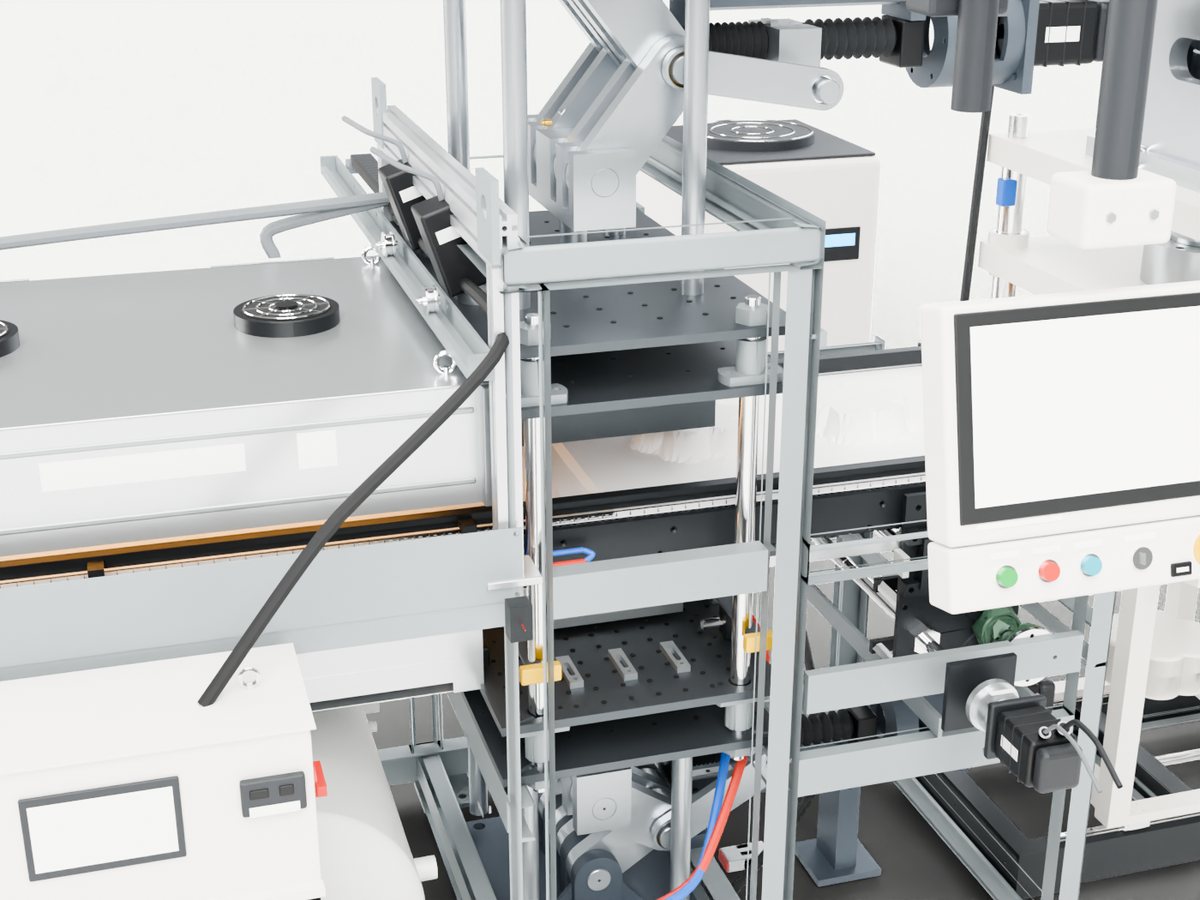

- Forming: Servo toggles, 180 kN at lock, vacuum + 1 bar

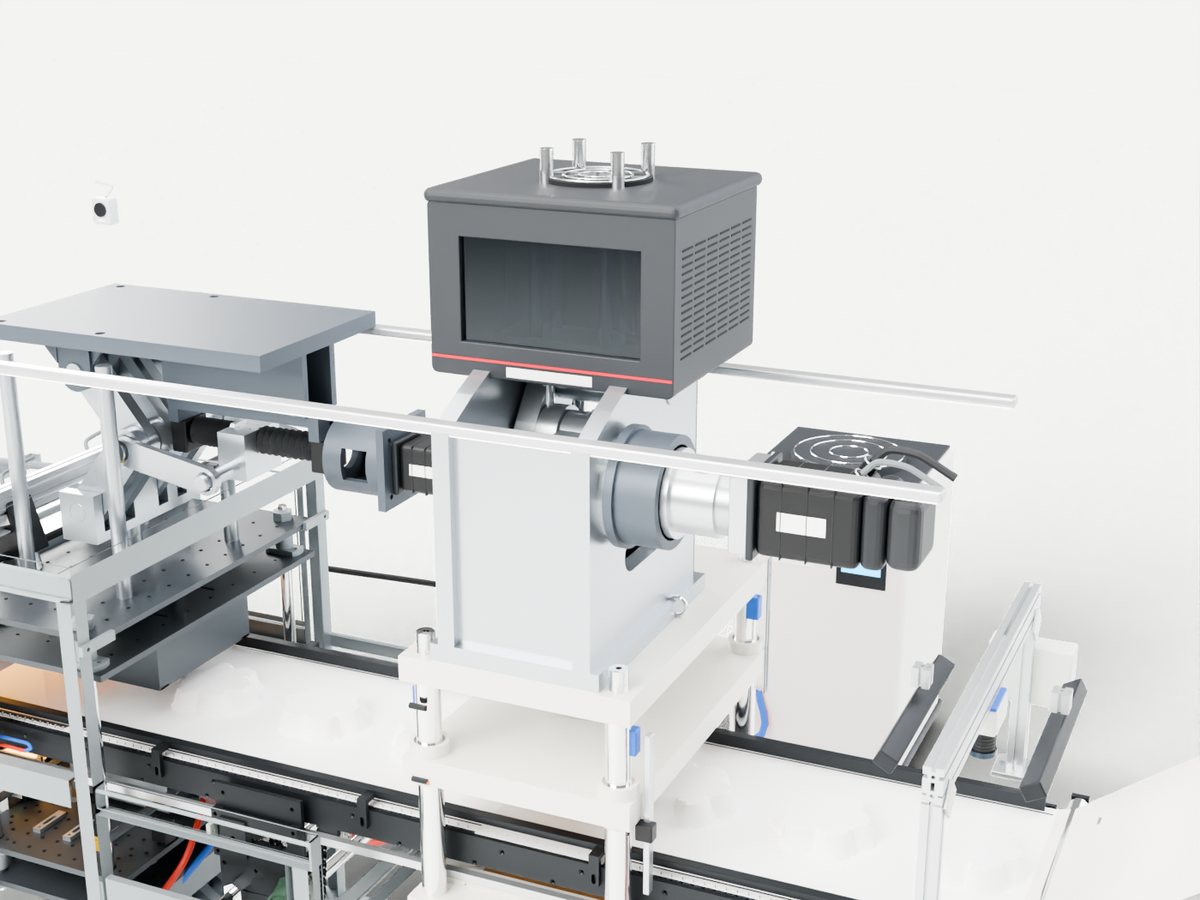

- Trim press: Servo crank-toggle, 400 kN, 60 mm stroke
- Output: Vision, reject flap, conveyor, servo winder
Specifications
| Specification | Value |
|---|
| Forming area | 500 × 600 mm |
|---|
| Sheet width, max | 680 mm |
|---|
| Sheet thickness | 0.3–1.5 mm |
|---|
| Forming depth | 100 mm below, 90 mm above sheet |
|---|
| Index length | up to 600 mm |
|---|
| Materials | HIPS, PET, PVC, PP, ABS |
|---|
| Roll, max | Ø1000 mm, 600 kg |
|---|
| Unwind | Servo stand, load-cell tension |
|---|
| Heating | 64 quartz, top + bottom, 16 zones, closed loop, 2 pyrometers |
|---|
| Index drive | 2 kW servo, 1:5 planetary, motorised width |
|---|
| Forming | Vacuum + pressure to 1 bar, servo toggles, 180 kN at lock |
|---|
| Trim press | Servo crank-toggle, 400 kN, 60 mm stroke |
|---|
| Output handling | Servo winder, conveyor, vision, reject flap |
|---|
| Output, reference job | ≈ 21 cycles/min |
|---|
| Controls | Mitsubishi Q-series, 15″ screen, 200 recipes |
|---|
| Remote service | Industrial remote access |
|---|
| Footprint L × W × H | 7.0 × 3.3 × 2.6 m, plus 0.8 m chiller |
|---|
| Machine weight | ≈ 4.6 t |
|---|
Specifications are design targets, confirmed at order.
Reference job: one-up tray, 0.6 mm HIPS, 340 mm index, simulated.
What you need on site
| Utility | Requirement |
|---|
| Power | 415 V, 3-phase, 50 Hz, ≈ 50 kW |
|---|
| Compressed air | 6 bar, ≈ 0.2 m³/min |
|---|
| Vacuum | Rotary vane pump, 100 m³/h, with tank (supplied) |
|---|
| Cooling water | Built-in 5 kW mould chiller |
|---|
Options and services
| Option | Price |
|---|
| Vision inspection + reject flap | Included |
|---|
| 600 kg servo unwind stand | Included |
|---|
| Mould water chiller, 5 kW | Included |
|---|
| Automated tool change (lift robot, quick clamps) | On request |
|---|
| Installation by Machinecraft | ₹50,000 |
|---|
| Operator training, 2 days | ₹50,000 |
|---|
Ex-works Umargam, Gujarat. GST 18%, packing, freight and insurance extra.
50% advance with order, 50% before dispatch.
12 months from commissioning.

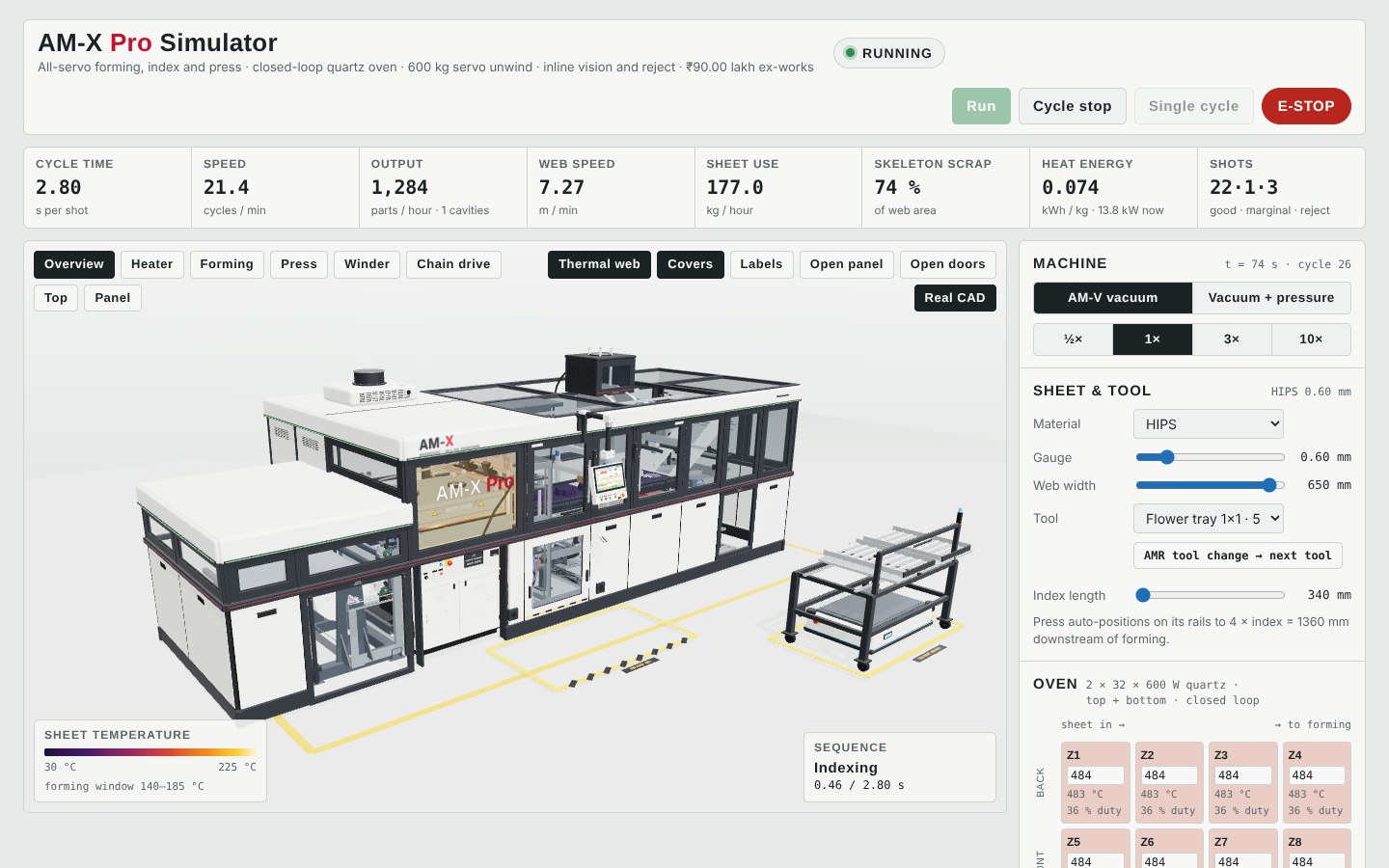

Run the Pro in your browser
Change the material, gauge and tool and watch the cycle, the sheet temperature and the parts. Send us your part and we will run it for you.
Run the Pro simulator
