Thermoformed ABS PMMA Headlight Masks for Vehicles: Precision & Aesthetics for Automotive Exteriors
Discover how advanced thermoforming techniques, particularly vacuum forming with ABS PMMA, deliver high-quality, glossy headlight masks for commercial and electric vehicles, combining durability with superior aesthetics.
Overview: The Power of Thermoforming in Automotive Components
In the demanding world of automotive manufacturing, the need for durable, lightweight, and aesthetically pleasing components is paramount. Thermoforming, a versatile plastic fabrication process, stands out as an ideal solution for producing a wide array of exterior and interior parts. This page delves into a specific and critical application: the creation of headlight masks for commercial vehicles and electric vehicle components using the advanced ABS PMMA material through vacuum forming. This process ensures a glossy finish and robust performance, meeting the stringent requirements of the automotive industry.
As illustrated by the image below, a precisely thermoformed headlight mask showcases the capability of this process to produce complex shapes with excellent surface quality. This particular component, designed for a commercial vehicle, exemplifies the blend of functionality and visual appeal achievable with automotive thermoforming.

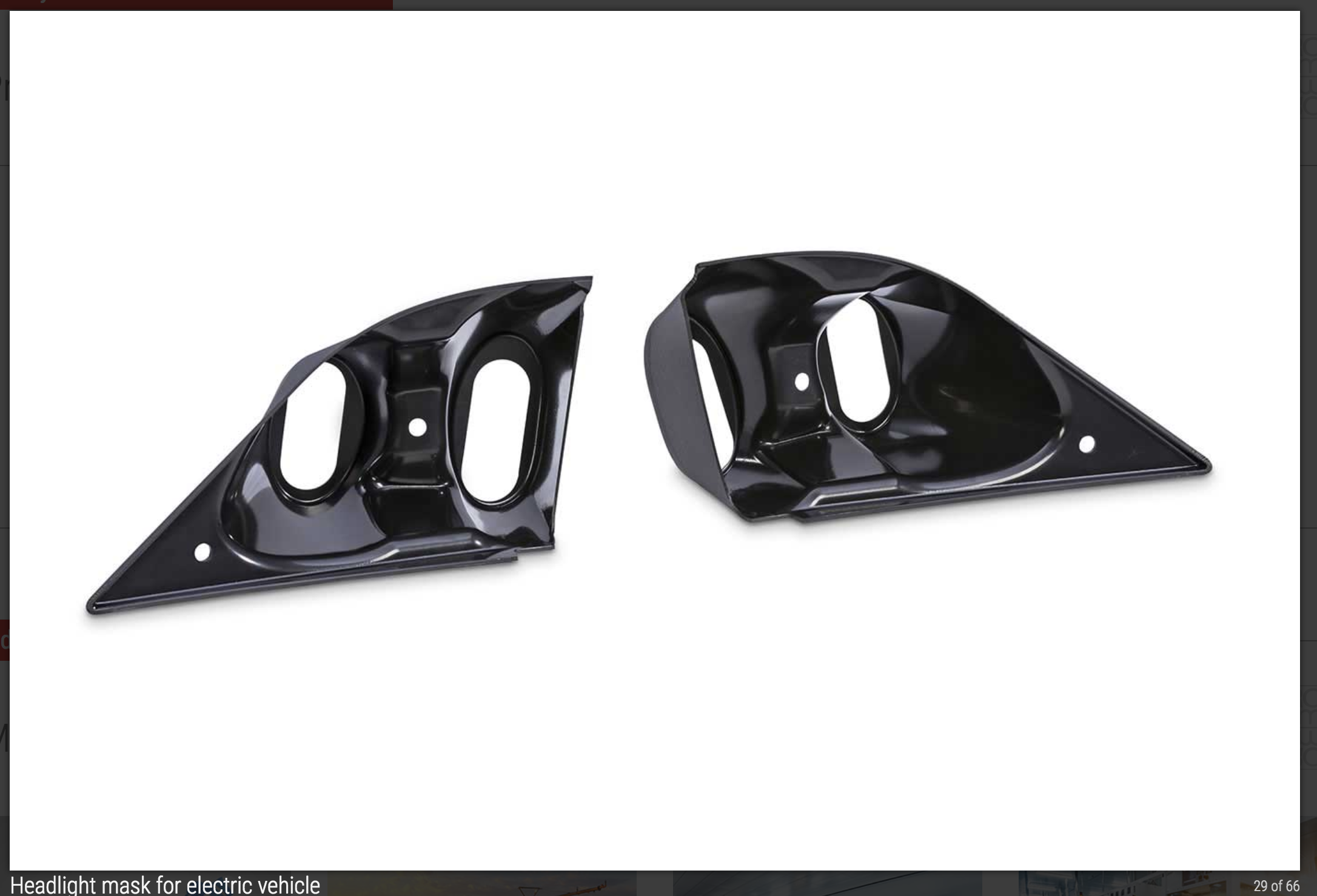

A thermoformed ABS PMMA headlight mask, demonstrating the glossy finish and intricate design possible with vacuum forming for commercial vehicle parts.
Application Details: Headlight Masks for Modern Vehicles
Headlight masks are more than just decorative elements; they are integral automotive exterior components that protect the internal headlight assembly from environmental factors like debris, moisture, and UV radiation, while also contributing significantly to the vehicle's overall aesthetic. For commercial vehicles and the rapidly expanding market of electric vehicle components, these masks must withstand harsh operating conditions and maintain their appearance over time.
Our custom thermoforming solutions provide the flexibility to design and produce headlight masks that perfectly integrate with diverse vehicle designs. The use of plastic fabrication via thermoformed plastics offers advantages over traditional metal or injection-molded alternatives, including reduced weight, lower tooling costs, and faster prototyping cycles. This makes thermoforming an attractive option for both high-volume production and specialized, low-volume runs.
Materials Used: ABS PMMA - The Ideal Choice
The selection of material is crucial for the performance and longevity of automotive components. For headlight masks, ABS PMMA (Acrylonitrile Butadiene Styrene / Polymethyl Methacrylate) is a superior choice, particularly when a glossy finish is desired. This co-extruded sheet combines the best properties of both polymers:
- ABS Core: Provides excellent impact strength, rigidity, and heat resistance, ensuring the mask can withstand impacts and temperature fluctuations.
- PMMA Layer: Offers exceptional UV resistance, weatherability, and a naturally high-gloss, scratch-resistant surface. This outer layer is key to achieving the desired aesthetic and protecting against fading and degradation from sunlight.
Together, ABS PMMA creates a material that is robust, durable, and maintains its premium appearance even after prolonged exposure to the elements, making it perfect for commercial vehicle parts and other demanding automotive exterior applications.
Process Description: Precision Vacuum Forming
The manufacturing of these headlight masks primarily utilizes the vacuum forming process, a key method within thermoforming. Here's a simplified breakdown:
- Sheet Clamping: An ABS PMMA plastic sheet is securely clamped into a frame.
- Heating: The sheet is then heated to its forming temperature, becoming pliable.
- Forming: The heated sheet is draped over a mold, and a vacuum is applied to draw the sheet tightly against the mold's surface, replicating its exact contours.
- Cooling & Trimming: Once cooled and solidified, the part is removed from the mold and excess material is trimmed, often using CNC routing for precision.
This process is highly efficient for producing large, complex parts with consistent quality. Machines like the Machinecraft PF1 Series are specifically designed to handle such applications, offering the control and power necessary for high-quality custom thermoforming of thick gauge materials like ABS PMMA.
Benefits of Thermoformed ABS PMMA Headlight Masks
Choosing thermoformed ABS PMMA for headlight masks offers a multitude of advantages:
- Superior Aesthetics: The PMMA layer provides an inherent glossy finish that requires no painting, reducing production steps and costs.
- High Durability: Excellent impact resistance from ABS combined with the scratch and UV resistance of PMMA ensures long-lasting performance in harsh environments.
- Lightweight: Thermoformed plastic parts are significantly lighter than metal alternatives, contributing to fuel efficiency in commercial vehicles and extended range for electric vehicle components.
- Cost-Effective Tooling: Compared to injection molding, thermoforming molds are generally less expensive to produce, making it ideal for prototyping and medium-volume production runs.
- Design Flexibility: The custom thermoforming process allows for intricate designs and complex geometries, enabling creative and functional automotive exterior solutions.
- Corrosion Resistance: Unlike metal, plastic does not rust or corrode, enhancing the lifespan of the component, especially in diverse climates.
Technical Specifications: Key Considerations
Key Specifications for ABS PMMA Headlight Masks:
- Material: ABS PMMA (Co-extruded sheet)
- Process: Vacuum Forming
- Typical Thickness: 2mm - 6mm (variable based on application)
- Surface Finish: High Gloss (PMMA layer)
- UV Resistance: Excellent
- Impact Strength: High
- Operating Temperature Range: -30°C to +80°C (approximate, material dependent)
- Color Options: Wide range available, often black or custom matched
- Machine Compatibility: Optimized for Machinecraft PF1 Series and similar industrial thermoforming machines.
Related Applications: Expanding Automotive Thermoforming
The capabilities demonstrated by thermoformed ABS PMMA headlight masks extend to numerous other automotive thermoforming applications, including:
- Fender Liners and Wheel Wells: Protecting vehicle undercarriages.
- Interior Trim Panels: Dashboards, door panels, and console components.
- Truck Bed Liners: Durable protection for cargo areas.
- Aerodynamic Fairings: Improving fuel efficiency for commercial vehicle parts.
- Battery Enclosures: Lightweight and protective solutions for electric vehicle components.
- Roof Spoilers and Deflectors: Enhancing vehicle aerodynamics and aesthetics.
- Bumper Covers and Grilles: Offering impact resistance and design flexibility.
These examples highlight the versatility of thermoformed plastics in meeting the diverse needs of the automotive industry, from heavy-duty commercial vehicle parts to advanced electric vehicle components.
FAQ: Frequently Asked Questions About Thermoformed Headlight Masks
What is ABS PMMA and why is it used for headlight masks?
ABS PMMA is a co-extruded plastic sheet combining ABS (Acrylonitrile Butadiene Styrene) for strength and impact resistance with PMMA (Polymethyl Methacrylate) for UV resistance, weatherability, and a high-gloss, scratch-resistant surface. This combination makes it ideal for automotive exterior components like headlight masks, providing both durability and a premium aesthetic without the need for painting.
How does vacuum forming create a glossy finish?
When using ABS PMMA, the PMMA layer is naturally glossy. During the vacuum forming process, the heated sheet is drawn tightly against a smooth, polished mold surface. This contact helps to preserve and even enhance the inherent gloss of the PMMA layer, resulting in a high-quality, reflective finish on the thermoformed part.
Can thermoformed headlight masks be customized for different vehicle models?
Absolutely. Custom thermoforming is a major advantage of the process. Molds can be designed to match the precise specifications and aesthetics of any commercial vehicle or electric vehicle component. This flexibility allows for unique designs, branding elements, and perfect fitment across various models and manufacturers.
What are the benefits of using thermoforming over injection molding for headlight masks?
Thermoforming often offers lower tooling costs and faster lead times for prototypes and medium-volume production compared to injection molding. It's also excellent for larger parts and can achieve a high-gloss finish directly from the material (like ABS PMMA) without secondary painting. While injection molding offers higher precision for very small, intricate features, thermoforming provides a cost-effective and versatile solution for many automotive exterior components.
Is ABS PMMA suitable for electric vehicle (EV) components?
Yes, ABS PMMA is highly suitable for electric vehicle components. Its lightweight nature contributes to extended battery range, while its durability, UV resistance, and aesthetic appeal meet the high standards required for modern EVs. Beyond headlight masks, it's used for battery covers, interior trim, and other exterior parts where performance and appearance are critical.
For more information on Machinecraft's PF1 Series or to discuss your specific custom thermoforming needs for automotive thermoforming, please contact us.
