Definitions & Guides

Thermoforming Knowledge Base.

What is vacuum forming?

Vacuum forming is a thermoforming process where a heated thermoplastic sheet is stretched over a mold and shaped using vacuum (suction) pressure, producing large plastic parts at lower tooling costs than injection molding.

The vacuum forming process begins by clamping a thermoplastic sheet in a frame and heating it with infrared heaters until it reaches forming temperature — typically 150°C to 200°C depending on the material. The heated sheet is then draped over or into a mold, and vacuum pressure (approximately 0.8 to 0.95 bar below atmospheric) draws the sheet tightly against the mold surface. After cooling, the formed part is released and trimmed.

Vacuum forming is widely used because tooling costs range from $2,000 to $30,000 — compared to $10,000 to $500,000+ for injection molding. It can produce parts up to 6 meters in length, with lead times of 2 to 6 weeks from design to production. Machinecraft's PF1-X Series machines use a closed chamber design with pre-blow bubble formation, achieving wall thickness uniformity within ±10% across the formed part.

Key steps in the vacuum forming process

  1. Clamp the thermoplastic sheet in the frame
  2. Heat the sheet to forming temperature using infrared heaters (ceramic, quartz, or halogen)
  3. Pre-stretch the sheet using plug assist or air pressure (optional, improves wall uniformity)
  4. Drape the heated sheet over the mold
  5. Apply vacuum to pull the sheet against the mold surface
  6. Cool the formed part (typical cycle time: 30-120 seconds depending on material and thickness)
  7. Release vacuum and remove the part
  8. Trim excess material using CNC router or die cutter
Read full article: What is Vacuum Forming?

What is thermoforming?

Thermoforming is a manufacturing process where a thermoplastic sheet or film is heated to a pliable temperature, formed to a specific shape using a mold, and trimmed to create a finished product. It encompasses vacuum forming, pressure forming, and twin-sheet forming.

Thermoforming is divided into two main categories based on material thickness. Heavy gauge thermoforming processes cut sheets typically 2 to 12mm thick for structural parts such as automotive panels, bathtubs, and equipment covers. Light gauge (thin gauge) thermoforming processes roll-fed film under 2mm for high-volume packaging such as food trays, cups, and blister packs.

Types of thermoforming processes

Vacuum Forming

Uses vacuum pressure (negative pressure) to shape heated plastic over a mold. Most common and cost-effective method. Suitable for parts where moderate detail is acceptable. Machinecraft PF1-X Series.

Pressure Forming

Adds positive air pressure (typically 3-6 bar) in addition to vacuum for sharper detail, tighter radii, and better surface texture. Produces parts that can look injection-molded. Machinecraft AM-P Series.

Form-Cut-Stack

Continuous roll-fed process that forms, cuts, and stacks parts in a single integrated line. Designed for high-volume production of packaging and trays. Machinecraft FCS Series.

Twin-Sheet Forming

Two sheets are simultaneously formed and fused together to create hollow, double-walled parts with structural rigidity.

What materials can be thermoformed?

Common thermoforming materials include ABS, PMMA (acrylic), Polycarbonate, HDPE, Polystyrene, PET, Polypropylene, PVC, TPO, and PLA. Material selection depends on impact resistance, chemical resistance, transparency, temperature tolerance, and cost.

Knowledge Hub Data
MaterialForming Temp (°C)Key PropertiesCommon Applications
ABS150-180Impact resistant, rigid, paintableAutomotive panels, equipment covers, luggage
PMMA (Acrylic)160-190Optical clarity, UV resistant, scratch resistantSkylights, signage, displays, light covers
PC (Polycarbonate)180-210High impact, transparent, heat resistantMedical device covers, safety glazing, EV components
HDPE130-160Chemical resistant, durable, food safeChemical toilets, tanks, pallets, playground equipment
PS / HIPS140-170Low cost, easy to form, good detailRefrigerator liners, packaging trays, signage
PET / PETG120-160Food safe, recyclable, optically clearFood trays, blister packs, medical packaging
PP (Polypropylene)150-175Chemical resistant, flexible, lightweightPackaging, automotive parts, containers
PVC140-170Flame retardant, durable, low costBlister packaging, signage panels
TPO160-190Chemical resistant, flexible, paintableAutomotive bumpers, trim panels, bed-liners
PLA130-160Biodegradable, food safe, compostableSustainable packaging, food containers

Machinecraft PF1-X Series machines process heavy gauge sheets from 2mm to 12mm thickness. The AM Series and FCS Series process thin gauge roll stock from 0.5mm to 2.0mm. All machines include pyrometer temperature monitoring for real-time sheet temperature control during heating.

What is the difference between vacuum forming and injection molding?

Vacuum forming uses heated plastic sheets shaped over a mold with vacuum pressure, costing $2K-$30K in tooling with 2-6 week lead times. Injection molding forces molten plastic into a closed mold at high pressure, costing $10K-$500K+ with 8-16 week lead times.

Knowledge Hub Data (2)
FactorVacuum FormingInjection Molding
Tooling Cost$2,000 – $30,000$10,000 – $500,000+
Maximum Part SizeUp to 6,000 x 2,200mmLimited by clamp tonnage
Production Volume100 – 50,000 parts/year10,000 – 1,000,000+ parts/year
Lead Time (tool to part)2 – 6 weeks8 – 16 weeks
Wall ThicknessVariable (thinner at deep draws)Uniform throughout
Surface DetailModerate (pressure forming for high detail)Very high
Design Change CostLow ($500 – $5,000)High ($10,000 – $100,000+)
Typical Cycle Time30 – 120 seconds15 – 60 seconds
Material Waste10 – 30% (trim scrap, recyclable)< 5%

Vacuum forming is the preferred choice when you need large parts (over 500mm), lower production volumes (under 50,000 units/year), faster time-to-market, or when tooling budget is a constraint. Injection molding is better suited for small, high-detail parts produced in very high volumes.

Read full comparison: Thermoforming vs Injection Molding

What is the difference between heavy gauge and light gauge thermoforming?

Heavy gauge thermoforming processes cut sheets 2-12mm thick for structural parts like automotive panels and bathtubs. Light gauge thermoforming processes roll-fed film under 2mm for high-volume packaging like food trays and blister packs.

Knowledge Hub Data (3)
FactorHeavy GaugeLight Gauge (Thin Gauge)
Material Thickness1 – 15mm (cut sheets)0.2 – 2.0mm (roll-fed)
Feed MethodSheet-fed (individual sheets)Roll-fed (continuous)
Typical Cycle Time30 – 120 seconds per sheet3 – 10 seconds per cycle
Production Volume100 – 50,000 parts/year100,000 – 10,000,000+ parts/year
Part ExamplesAutomotive panels, bathtubs, equipment coversFood trays, cups, blister packs, lids
Machinecraft MachinePF1-X Series (sheet-fed vacuum forming)AM Series & FCS Series (roll-fed)
Typical IndustriesAutomotive, aerospace, medical, sanitaryFood packaging, pharma, consumer goods

What is a closed chamber vacuum forming machine?

A closed chamber vacuum forming machine features an air-sealed forming chamber that enables pre-blow bubble formation and zero-sag control, resulting in more uniform wall thickness distribution — typically within ±10% across the formed part.

In a conventional open-frame vacuum forming machine, the heated sheet sags under gravity before forming, which leads to uneven wall thickness — thinner at the top of deep draws and thicker at the base. A closed chamber design solves this by sealing the area above the heated sheet, allowing controlled air pressure to be introduced.

The process works in three stages: first, the chamber seals around the heated sheet and the bottom heater retracts downward to allow controlled sheet sag. Second, air pressure is introduced from below to create a controlled "bubble" that pre-stretches the sheet uniformly. Third, the mold rises into the bubble and vacuum is applied to pull the pre-stretched sheet against the mold surface. This pre-blow step ensures the material is evenly distributed before it contacts the mold, resulting in significantly more uniform wall thickness.

All Machinecraft PF1-X Series machines use this European-concept closed chamber design as standard. The pre-blow pressure and timing are programmable via the HMI touchscreen, allowing operators to fine-tune the process for different materials and part geometries.

How do you choose the right vacuum forming machine?

Choose a vacuum forming machine based on five factors: forming area size, maximum sheet thickness, required cycle time, material type, and production volume. Heavy gauge structural parts need sheet-fed machines; high-volume packaging needs roll-fed machines.

The first decision is whether you need a heavy gauge sheet-fed machine or a light gauge roll-fed machine. If your parts are structural (automotive panels, bathtubs, equipment covers) and use sheets thicker than 1mm, you need a sheet-fed machine like the Machinecraft PF1-X Series. If you produce high-volume packaging (food trays, blister packs, containers) from thin film under 2mm, you need a roll-fed machine like the Machinecraft AM Series or FCS Series.

Key selection criteria

Forming Area

Must accommodate your largest part plus trim allowance. Machinecraft builds machines from 1000×600mm up to 6000×2200mm.

Sheet Thickness Range

PF1-X handles 2-12mm sheets. AM Series handles 0.5-2.0mm roll stock. Ensure the machine covers your material range.

Cycle Time Requirements

PF1-X typical cycle: 30-120 seconds. AM Series: up to 10 cycles/minute. FCS Series: continuous high-speed production.

Automation Level

Manual sheet loading for low volumes, automatic sheet feeders for medium volumes, fully integrated lines for high volumes.

Heating System

Ceramic IR for thick materials (deep, even penetration). Quartz IR for medium materials (faster response). Halogen for thin materials (rapid heating).

Find Your Machine Configure a PF1-X
FAQ

Frequently Asked Questions.

General Questions

Vacuum forming is a thermoforming process where a thermoplastic sheet is heated to a pliable forming temperature, stretched over a mold, and shaped using vacuum pressure. It is one of the most cost-effective methods for producing large plastic parts with relatively low tooling costs compared to injection molding.

Thermoforming is the broad category of plastic forming processes that use heat. Vacuum forming is a specific type of thermoforming that uses vacuum pressure to shape heated plastic sheets over a mold. Other thermoforming methods include pressure forming (which adds positive air pressure for finer detail) and twin-sheet forming (which bonds two sheets together for hollow parts).

Common vacuum forming materials include ABS, PMMA (acrylic), Polycarbonate (PC), TPO, HDPE, Polystyrene (PS/HIPS), PET, Polypropylene (PP), PVC, PETG, and PLA. The choice depends on the application requirements such as impact resistance, chemical resistance, transparency, and temperature tolerance.

Heavy gauge thermoforming processes cut sheets typically 2-12mm thick for structural parts like automotive panels, bathtubs, and equipment covers. Light gauge thermoforming uses thin roll-fed film (typically under 2mm) for high-volume packaging like food trays, cups, and blister packs. Machinecraft manufactures machines for both: PF1-X Series (heavy gauge sheet-fed), FCS Series (roll-fed form-cut-stack), and AM Series (thin gauge roll-fed forming for packaging).

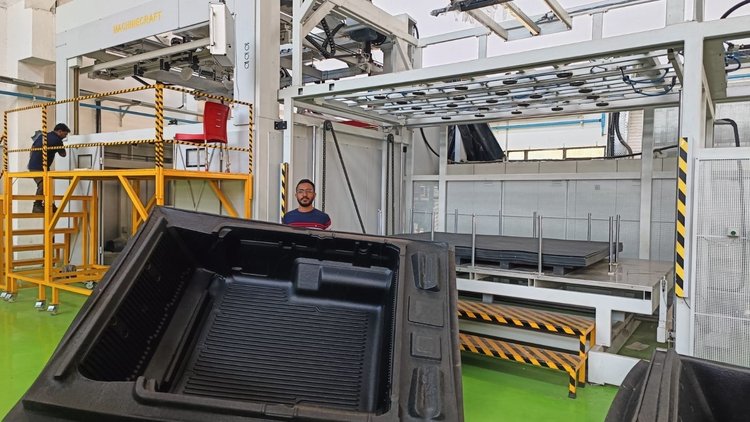

Vacuum forming machines are used across automotive (interior/exterior panels, EV components, bed-liners), aerospace (cabin interiors, overhead bins), medical (CT/MRI covers, device housings), packaging (food trays, blister packs), sanitary (bathtubs, shower panels, chemical toilets), agriculture (tractor cabins, equipment covers), signage (3D letters, light boxes), architecture (facade panels), and many more industries.

Machine-Specific Questions

Machinecraft manufactures custom vacuum forming machines ranging from compact 1000x600mm forming area up to XXL 6000x2200mm. Each machine is tailor-made to the customer's specific requirements, including forming area, draw depth, sheet thickness capacity, and automation level.

A closed chamber vacuum forming machine features an air-sealed forming chamber that enables pre-blow bubble formation and zero sag control. The bottom heater retracts to allow controlled sheet sag, then air pressure from below pre-stretches the heated sheet into a uniform bubble before the mold rises and vacuum is applied. This results in more uniform wall thickness distribution in the final part. This European-concept design is standard on all Machinecraft PF1-X Series machines.

The Machinecraft AM Series is a continuous roll-fed forming machine designed for thin gauge packaging and deep draw containers. It features air cylinder pneumatic driven press, spike chain indexing with ±0.3mm accuracy, sandwich infrared heating, vacuum and compressed air forming capability, and automatic cutting. The AM-P model has a 500x600mm forming area and processes materials from 0.5-2.0mm thickness at up to 10 cycles per minute.

The Machinecraft FCS Series is a roll fed continuous pressure forming machine with integrated forming and punching stations. It features servo-driven spike chain indexing with ±0.3mm accuracy, toggle press forming, and up to 60 tonne punching force. The FCS 6050 model has a 600x500mm forming area and is designed for high-volume thermoformed packaging production.

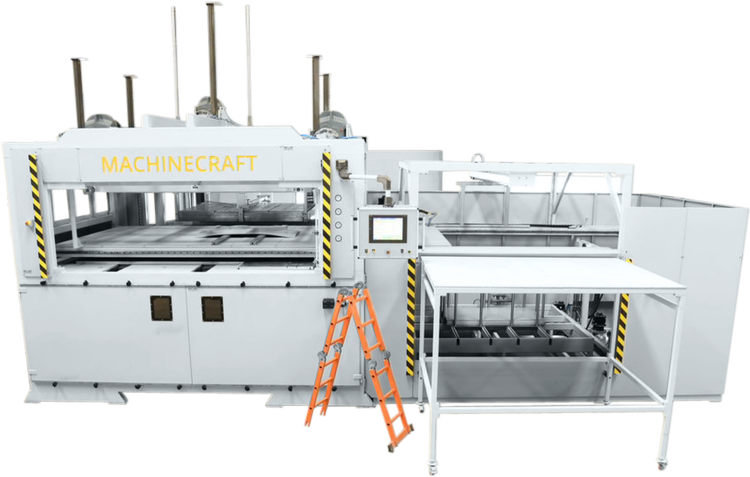

Yes, Machinecraft offers comprehensive automation options for the PF1-X Series including automatic sheet feeders, universal frame systems for quick sheet size changeover, robotic part removal, CNC trimming integration, easy sheet loading systems, and stacking systems. These can increase production rates and reduce operator dependency.

Machinecraft machines are manufactured at their production facility in Umargam, Gujarat, India — approximately 150 km north of Mumbai. The company has been manufacturing thermoforming machines since 1976 and currently exports to in 35+ countries worldwide.

Machinecraft uses international standard components from brands like Mitsubishi (PLC), SEW (drives and gearboxes), Festo (pneumatics), and Busch/Becker (vacuum pumps). All components are chosen to be easily available locally in the customer's region for convenient maintenance and spare parts supply.

Machinecraft offers three types of infrared heating systems: IR Ceramic (long-wave, ideal for thick materials with deep, even heat penetration), IR Quartz (medium-wave, faster response time for thinner materials), and Halogen (short-wave, rapid heating for high-speed production). All PF1-X machines include pyrometer temperature monitoring for real-time sheet temperature control. The heating type can be selected based on your material and production requirements.

Yes, Machinecraft offers optional automatic sheet loading and unloading systems for the PF1-X Series. The autoloader uses a servo-driven vacuum pad system to pick sheets from a stack and feed them into the machine automatically. The auto-unloader removes formed parts from the mold and places them on a conveyor or stacking system. These automation options significantly reduce operator dependency and increase production throughput for continuous operation.

Lead times vary depending on the machine model, size, and customization level. A standard PF1-C Classic typically takes 12-16 weeks from order confirmation. PF1-X Pro models take 16-20 weeks due to the servo systems and additional features. XL models and heavily customized machines may take 20-24 weeks. Contact our sales team for an accurate lead time estimate based on your specific configuration.

Yes, Machinecraft provides complete installation, commissioning, and operator training at the customer's facility. A team of experienced engineers travels to your location to install the machine, run test cycles with your materials, and train your operators on machine operation, maintenance, and troubleshooting. Remote support via video call is also available for ongoing technical assistance.

Machinecraft machines come with a standard 12-month warranty covering manufacturing defects in mechanical, electrical, and pneumatic components. Extended warranty options are available. Spare parts are stocked and can be shipped worldwide. Machinecraft also offers annual maintenance contracts for preventive maintenance and priority support.

Absolutely. While Machinecraft offers standard models ranging from 1000x600mm to 6000x2200mm, every machine is essentially custom-built to order. The forming area, draw depth, sheet thickness capacity, heating configuration, vacuum system, and automation level can all be tailored to your specific production requirements. Contact our engineering team to discuss your custom specifications.

The PF1-C Classic uses pneumatic cylinders for the forming table, fixed welded clamp frames requiring manual changeover (~15 min), IR heating (ceramic infrared, quartz, or halogen elements), and centrifugal fan vacuum. The PF1-X Pro uses servo motor driven forming table with gearbox, a universal motorised aperture with automatic changeover via touchscreen (<5 min), choice of ceramic infrared/quartz/halogen heating with pyrometer, rotary vane vacuum with proportional servo valve, and optional automatic sheet loading and unloading. The PF1-X delivers higher precision, faster changeovers, and better process control.

Vacuum forming uses vacuum (negative pressure) to draw a heated plastic sheet onto a mold. Pressure forming adds compressed air (positive pressure, typically 3-6 bar) on top of the sheet during forming, which pushes the material into the mold with greater force. Pressure forming produces sharper detail, tighter radii, and better surface texture — making it suitable for parts that need to look injection-molded. Machinecraft's PF1-X Series is a vacuum forming machine only (heavy gauge sheet-fed). For pressure forming, Machinecraft offers the AM Series — the AM-V for vacuum forming and the AM-P for thin gauge pressure forming.

Machinecraft machines can process a wide range of thermoplastic materials including ABS, PMMA (acrylic), Polycarbonate (PC), TPO, HDPE, Polypropylene (PP), Polystyrene (PS/HIPS), PET, PETG, PVC, PE, and PLA. The PF1-X Series can handle sheet thicknesses from 2mm to 12mm. The AM Series processes thin gauge roll stock from 0.5mm to 2.0mm. Material selection depends on the application requirements such as impact resistance, chemical resistance, UV stability, and temperature tolerance.

Yes, Machinecraft exports machines to across 35+ countries. The company handles complete export logistics including sea freight, customs documentation, and insurance. Machines are professionally crated and containerized for safe international shipping. Installation and commissioning are provided at the customer's facility by Machinecraft's engineering team.

Machinecraft machines are designed to work with the standard industrial power supply available in the customer's region. Machines are typically configured for 380V/415V/440V, 3-phase, 50Hz or 60Hz depending on the destination country. The electrical system uses Mitsubishi PLC and SEW drives, and the power requirement varies by model size — from approximately 35 kW for compact models to over 300 kW for XL machines. Exact power requirements are specified during the quotation process.

The universal motorised aperture on PF1-X machines is a servo-driven clamp frame system that automatically adjusts the sheet opening size in both X and Y axes via the HMI touchscreen. When switching between different sheet sizes, the operator simply enters the new dimensions on the touchscreen and the aperture adjusts automatically in under 5 minutes — compared to 15+ minutes of manual changeover on traditional fixed-frame machines. This dramatically reduces downtime between production runs.

TOM (Three-dimensional Overlay Method) is an advanced thermoforming technique where a pre-printed decorative film is vacuum-formed directly onto a 3D substrate. Unlike traditional painting or hydro-dipping, TOM produces seamless, high-resolution graphics on complex curved surfaces with no masking, no overspray, and no drying time. Applications include automotive interior trim, consumer electronics housings, and appliance panels. Machinecraft offers TOM-capable machines for this growing market segment.

In-Mold Graining (IMG) is a process where a textured skin (typically TPO or PVC) is vacuum-formed over a nickel shell mold that has a precise leather-grain or wood-grain texture etched into it. The result is a Class-A textured surface that rivals injection-molded parts at a fraction of the tooling cost. IMG is widely used in automotive interiors for dashboards, door panels, and console covers. Machinecraft manufactures IMG machines with precise temperature control and high-vacuum systems for consistent texture reproduction.

Yes, Machinecraft offers an online customer portal where registered customers can track quote requests, submit service tickets, view personalized maintenance schedules for their machines, download operating manuals and spec sheets, and manage their machine fleet. The portal also provides access to spare parts ordering and real-time status updates on service requests. Visit machinecraft.org/portal to register.

Spare parts can be ordered through the customer portal, by emailing [email protected], or by contacting your regional sales representative. Machinecraft stocks commonly needed parts including heating elements, vacuum pump components, pneumatic cylinders, seals, and electrical components. Most standard parts ship within 3-5 business days. For urgent requirements, express shipping is available.

Yes, Machinecraft will be exhibiting at NPE 2027 — The Plastics Show, held May 3-7, 2027 at the Orange County Convention Center in Orlando, Florida, USA. Visit our booth to see live machine demonstrations, meet our engineering team, and discuss your thermoforming requirements. You can schedule a meeting in advance at machinecraft.org/npe2027.
