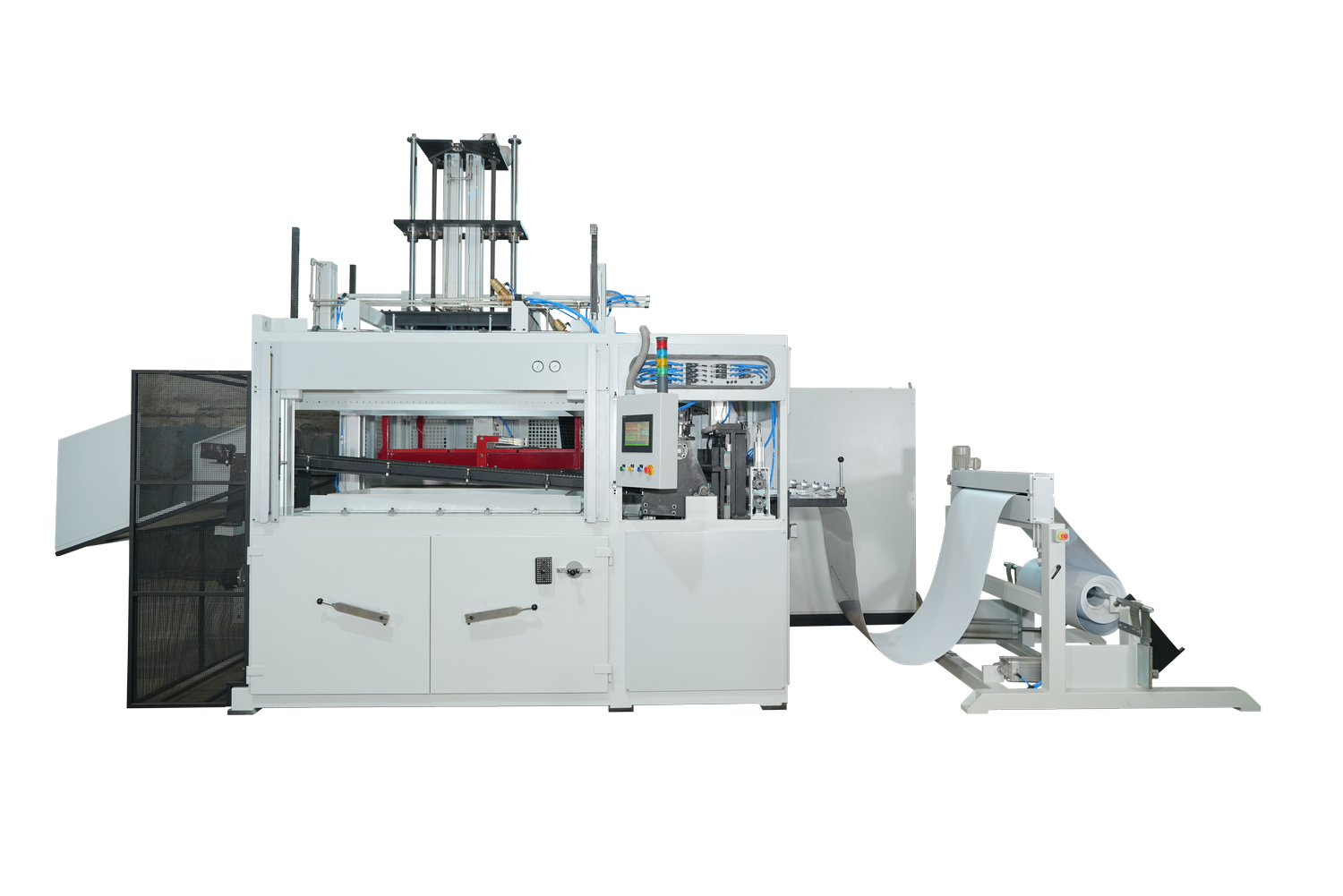

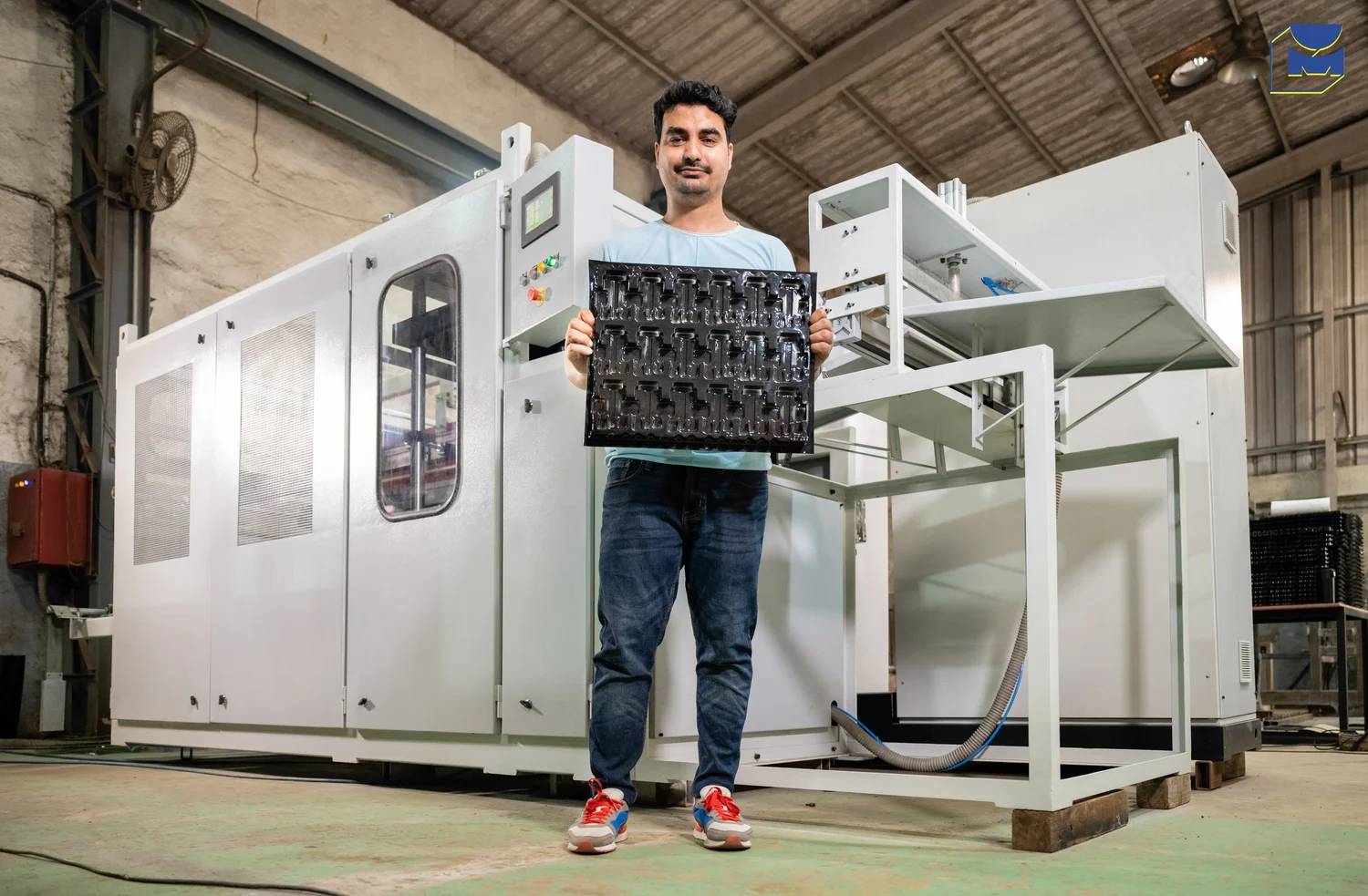

Roll Feeder Machine

PF1-R.

Roll-Fed Single-Station Vacuum Forming

Continuous production from roll stock with closed-chamber pre-blow, zero-sag control, and servo spike-chain transport. Built for high-volume material handling trays, battery packaging, and large-format roofing sheet production.

2,500 kg

Max Roll Weight

650 mm

Max Tool Depth

2,000×1,500

Max Forming Area (mm)

200 m³/hr

Vacuum Capacity

Closed ChamberPre-BlowZero-Sag ControlSpike Chain TransportMitsubishi PLCCE Standard

Request a Quote

PF1-R

Roll Feeder + Spike Chain Transport

PF1-R in Action

Watch the PF1-R roll-fed thermoforming machine in continuous production.

How It Works

How Does the PF1-R Roll-to-Part Continuous Forming Process Work?

The PF1-R feeds plastic sheet directly from a roll, cuts each shot automatically, transports it via servo spike chain into the forming station, forms under closed-chamber vacuum, and ejects the finished part to a trolley — all without manual intervention.

Roll Loading

Heavy-duty roll stand lifts rolls up to 2,500 kg. Servo-driven spike chain pulls sheet from roll automatically.

Cut & Transport

Integrated shear cutter cuts each shot to length. Spike chain transports the cut sheet into the forming station.

Heat & Form

Top + bottom IR heater ovens heat the sheet. Closed-chamber pre-blow or zero-sag control ensures even wall thickness before vacuum forming.

Eject & Unload

Thickness

3–10 mm

Key Advantage

Forming area up to 3,000 × 2,000 mm

Key Features

What Makes the PF1-R Built for Continuous High-Volume Production?

Closed Chamber Pre-Blow

Air-tight sealed chamber below the sheet enables pre-blow bubble for male moulds — critical for even wall thickness.

Zero-Sag Control

3 × photocell sag sensors prevent sheet droop for large forming areas and heavy gauge materials — especially important for female moulds and flat parts like battery trays.

Servo-Driven Spike Chain

Precision servo motor drives the spike chain for accurate sheet positioning and consistent shot-to-shot repeatability.

Mitsubishi PLC + 10″ HMI

Full recipe management, I/O status, heater bank visualisation, and remote monitoring via internet connectivity.

Universal Frame Option

Servo-driven universal sheet size setting frames reduce product changeover from ~60 minutes to under 10 minutes.

CE Safety Standard

Light guards at sheet loading area, emergency stops at operator station and control panel, with full interlock system.

Configuration Options

What Is the Difference Between PF1-R Config A (Standard) and Config B (Pro)?

Choose between the economic standard configuration or the fully automated Pro configuration based on your production volume and changeover frequency requirements.

PF1-R Series Technical Specifications
Feature	Config A — Standard	Config B — Pro (Automated)
Table Movements	Pneumatic	Servo Motor Driven
Sheet Size Setting	Fixed CNC Aluminium Frames	Universal Servo-Driven Frames
Tool Clamping	Bolt Type (~60 min changeover)	Pneumatic Quick-Clamp (<20 min)
Plug Assist	Pneumatic (optional)	Servo Motor Driven
Product Unloading	Manual trolley	Automatic trolley for robot pick-up

Technical Specifications

What Are the Full Technical Specifications of the PF1-R Series?

PF1-R Series Technical Specifications (2)
Parameter	Specification
Max. Forming Area	1,000 × 800 mm to 2,000 × 1,500 mm (custom)
Standard Common Size	1,000 × 2,000 mm
Max. Tool Depth (Z)	400 / 500 / 650 mm (model dependent)
Sheet Thickness Range	0.5 – 12 mm
Chamber Type	Closed chamber — air-tight sealed below clamped sheet
Pre-Blow (Male Moulds)	Photocell controlled, height-adjustable, timer-controlled
Zero-Sag Control (Female Moulds)	3 × photocells (centre + cross-diagonal)

Model Range

What PF1-R Models and Sizes Are Available?

Choose from 9 standard forming areas from 1,200 × 800 mm to 3,000 × 2,000 mm. Custom sizes and configurations are available on request.

PF1-R Series Technical Specifications (3)
Model	Forming Area (mm)	Max Draw (mm)	Sheet Thickness (mm)
PF1-R1208	1,200 × 800	400	2–10
PF1-R1210	1,200 × 1,000	400	2–10
PF1-R1510	1,500 × 1,000	500	2–10
PF1-R1512	1,500 × 1,200	500	2–10
PF1-R2012	2,000 × 1,200	500	2–10
PF1-R2015	2,000 × 1,500	600	2–10
PF1-R2515	2,500 × 1,500	600	2–10
PF1-R3015	3,000 × 1,500	600	2–10
PF1-R3020	3,000 × 2,000	800	2–10

Heater Options

Which Heating Technology Should You Choose for the PF1-R?

Three IR heating element types are available. All are individually zone-controlled via the touchscreen HMI. For materials up to 4 mm thick, only the top heater oven is required.

Ceramic (Long-Wave)

Energy: Baseline

Pros: Rugged, long-lasting, low maintenance

Cons: No energy saving vs. baseline

Best for: Heavy-duty production environments

Quartz (Medium-Wave)

Energy: ~30% saving

Pros: Faster heat-up, better energy efficiency

Cons: More fragile than ceramic

Best for: Balanced performance & efficiency

Halogen (Short-Wave)

Energy: ~50% saving

Pros: Fastest heat-up, maximum energy savings

Cons: Higher connected load, higher initial cost

Best for: High-volume, energy-conscious production

Interested in the PF1-R?

Add it to your enquiry cart and request a custom quote with your forming area and configuration requirements.
