Vacuum Forming Machines.
Heavy gauge sheet-fed vacuum forming machines for structural parts in automotive, aerospace, medical, sanitary, and industrial applications. Custom-built from 1000×600mm to 6000×2200mm forming area, processing sheets from 2mm to 12mm thickness.
What is vacuum forming?
Vacuum forming is a thermoforming process where a heated thermoplastic sheet is stretched over a mold and shaped using vacuum pressure. It produces large structural plastic parts at 70-90% lower tooling costs than injection molding.
The process heats a thermoplastic sheet to 150-200°C using infrared heaters, then uses vacuum pressure (0.8-0.95 bar below atmospheric) to draw the softened sheet against a mold. Machinecraft's PF1-X Series adds a closed chamber with pre-blow bubble formation, achieving wall thickness uniformity within ±10% — significantly better than open-frame machines.
Vacuum forming is ideal for parts ranging from 500mm to over 6,000mm in length, with production volumes from 100 to 50,000 parts per year. Typical applications include automotive body panels, EV components, bathtubs, refrigerator liners, aircraft cabin interiors, medical equipment covers, and agricultural machinery parts.
Pre-Blow Bubble Technology
Machinecraft's closed chamber design enables a controlled pre-blow of the heated sheet before vacuum is applied. Compressed air inflates the material into a uniform bubble, ensuring even wall thickness distribution across the mold.
- Wall thickness uniformity within ±10%
- Automatic sag compensation via light sensor
- Critical for deep-draw bathtubs, luggage, and panels
Machinecraft Vacuum Forming Machines.
PF1-C Classic
Pneumatic-driven vacuum forming machine with fixed welded clamp frames, IR quartz heating, and centrifugal fan vacuum. Reliable workhorse for standard production requirements.

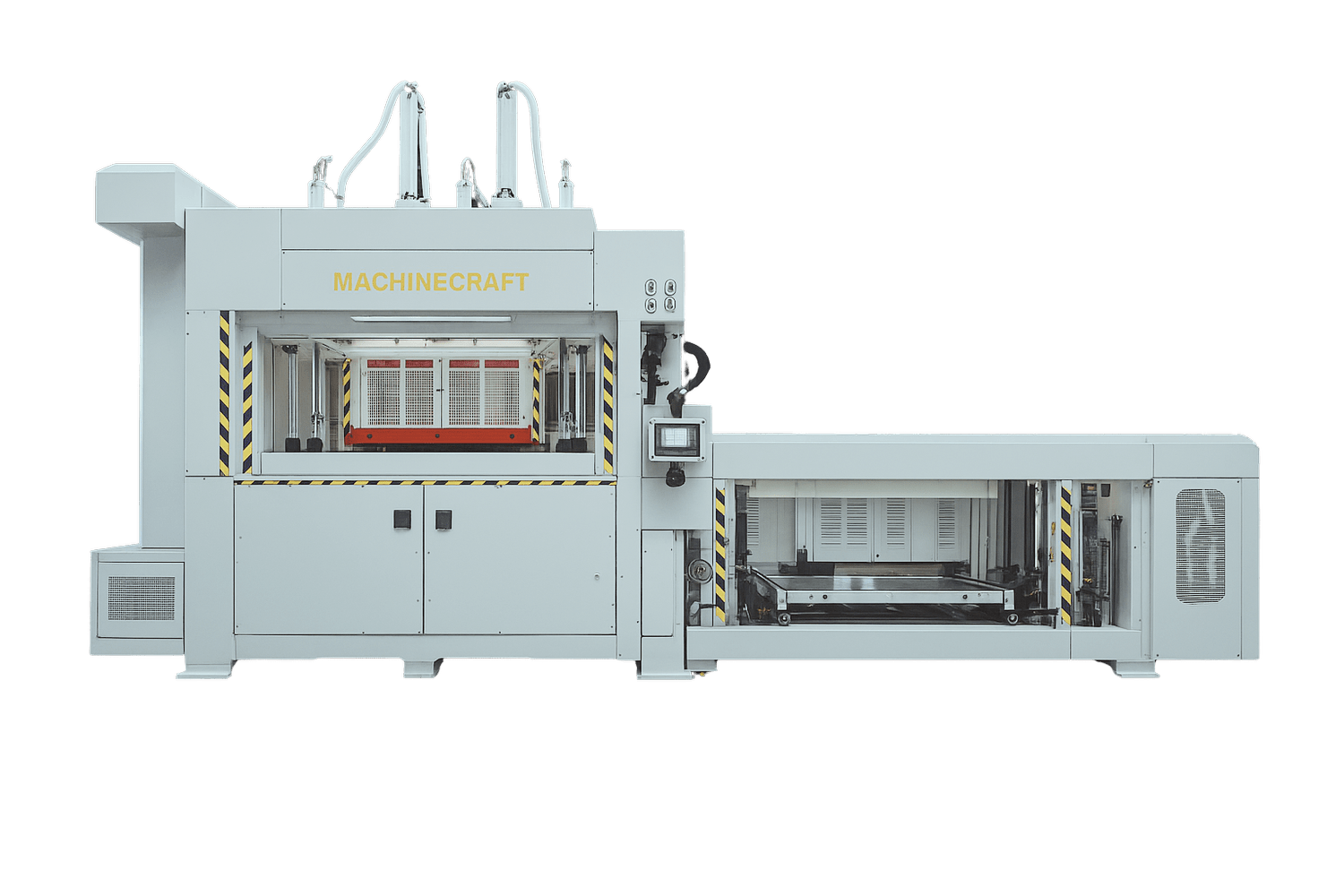

PF1-X Pro
Servo-driven vacuum forming machine with closed chamber pre-blow, universal motorised aperture, pyrometer temperature control, and optional automatic sheet loading/unloading.
What applications use vacuum forming machines?
Vacuum forming machines produce structural parts for automotive, aerospace, medical, sanitary, agricultural, and industrial applications — any industry that needs large, durable plastic parts at moderate production volumes.
Automotive & EV
- Body panels & fenders
- EV battery covers & charger housings
- Pickup truck bed-liners
- Interior trim panels
- Bus body panels
Aerospace & Rail
- Aircraft cabin interiors
- Overhead bin panels
- Railway interior panels
- Seat backs & tray tables
Medical & Healthcare
- CT/MRI scanner covers
- Medical device housings
- Hospital bed panels
- Dental equipment covers
Sanitary & Consumer
- Bathtubs & shower panels
- Jacuzzi/spa shells
- Chemical toilets
- Fitness equipment covers
Agriculture & Construction
- Tractor cabin panels
- Equipment covers & guards
- Construction machinery parts
- Utility vehicle panels
Signage & Architecture
- 3D illuminated letters
- Light boxes & displays
- Architectural facade panels
- Exhibition displays
How does vacuum forming compare to other processes?
Vacuum forming offers 70-90% lower tooling costs and 50-75% faster lead times than injection molding, making it ideal for large parts at low-to-medium volumes.
| Factor | Vacuum Forming | Pressure Forming | Injection Molding |
|---|---|---|---|
| Tooling Cost | $2K – $30K | $5K – $50K | $10K – $500K+ |
| Max Part Size | 6,000 × 2,200mm | 500 × 600mm (roll-fed) | Limited by clamp tonnage |
| Sheet Thickness | 2 – 15mm | 0.5 – 2.0mm | N/A (pellets) |
| Cycle Time | 30 – 120 sec | 6 – 10 sec/cycle | 15 – 60 sec |
| Surface Detail | Moderate | High (injection-mold quality) | Very high |
| Production Volume | 100 – 50,000/yr | 100K – 10M+/yr | 10K – 1M+/yr |
| Lead Time | 2 – 6 weeks | 4 – 8 weeks | 8 – 16 weeks |
Ready to Discuss Your Project?
Tell us about your application, part size, material, and production volume. Our engineering team will recommend the right machine configuration.
