Thermoformed Bus Rear Light Shuttering with Undercuts: Advanced Automotive Lighting Solutions

Explore how advanced thermoforming, specifically vacuum forming, delivers high-performance, aesthetically pleasing, and durable bus rear light shuttering, even with complex undercuts. Discover the benefits of using ABS PMMA for critical transportation parts.

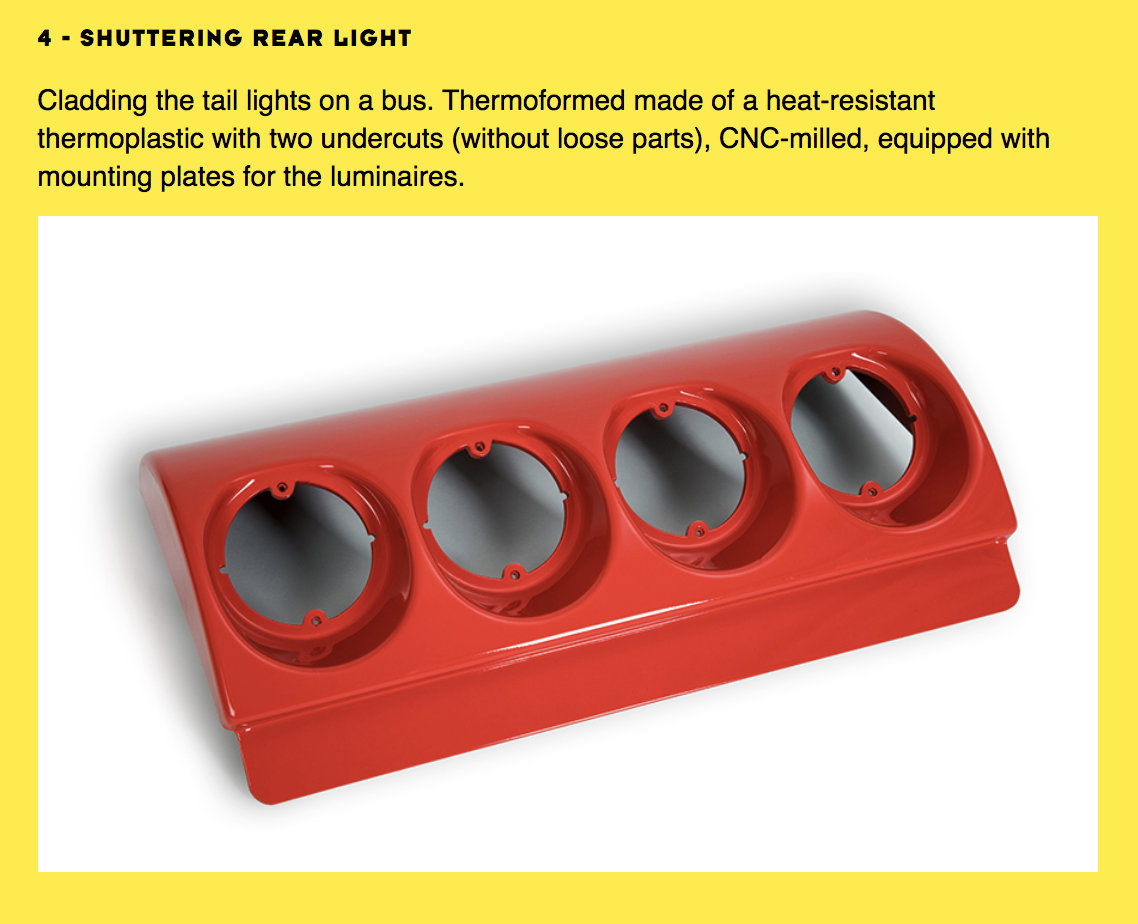

Figure 1: Example of a thermoformed bus rear light shuttering component with intricate undercuts.

Overview: Precision Thermoforming for Automotive Lighting

In the demanding world of automotive manufacturing, particularly for heavy-duty vehicles like buses, every component must meet stringent standards for durability, aesthetics, and functionality. This is especially true for exterior lighting components, which are crucial for safety and brand identity. Our expertise in thermoforming provides innovative solutions for complex parts like bus rear light shuttering, including those requiring intricate undercuts.

Using advanced vacuum forming techniques, we produce high-quality, precise components that integrate seamlessly into modern bus designs. This process allows for the creation of large format thermoforming parts with excellent surface finish and dimensional stability, making it ideal for robust transportation parts.

Application Details: Enhancing Bus Exterior Lighting

The rear light shuttering of a bus serves multiple critical functions. Beyond protecting the delicate lighting assembly from environmental factors and impact, it contributes significantly to the vehicle's overall aerodynamic profile and aesthetic appeal. Our thermoformed solutions are designed to address these needs comprehensively.

Tailored Solutions for Bus Rear Light Cladding

We specialize in manufacturing custom rear light cladding that perfectly matches the contours of various bus models. The ability to incorporate features like undercuts – geometries that extend beneath or behind other features – is a testament to the versatility of our custom thermoforming capabilities. These undercuts are often necessary for mounting, ventilation, or to achieve specific design aesthetics that cannot be easily replicated with other plastic fabrication methods.

This application falls under the broader category of exterior automotive parts, where components are exposed to harsh conditions and require materials that can withstand UV radiation, temperature fluctuations, and physical impacts.

Materials Used: The Strength of ABS PMMA

The choice of material is paramount for automotive applications. For bus rear light shuttering, we frequently utilize ABS PMMA, a co-extruded sheet that combines the excellent impact resistance and rigidity of Acrylonitrile Butadiene Styrene (ABS) with the superior weatherability and gloss of Polymethyl Methacrylate (PMMA).

Why ABS PMMA for Heat Resistant Thermoplastic Applications?

• Exceptional Weatherability: The PMMA layer provides a high-gloss, UV-resistant surface that resists fading and degradation from sunlight, crucial for exterior automotive parts.
• High Impact Strength: The ABS core ensures structural integrity and impact resistance, protecting the underlying lighting components.
• Heat Resistant Thermoplastic: ABS PMMA exhibits good heat resistance, maintaining its form and properties under varying operational temperatures, which is vital for components near light sources or engine heat.
• Excellent Aesthetics: Offers a premium, high-gloss finish that enhances the visual appeal of the bus.
• Formability: Despite its strength, ABS PMMA is highly formable, allowing for complex shapes and undercuts during the vacuum forming process.

Other heat resistant thermoplastic options may be considered based on specific project requirements, but ABS PMMA remains a top choice for its balanced properties.

Process Description: From Concept to Component

Our manufacturing process for bus rear light shuttering involves a precise combination of vacuum forming and advanced finishing techniques.

The Vacuum Forming Advantage

1. Sheet Heating: A sheet of ABS PMMA is clamped into a frame and heated to its optimal forming temperature, making it pliable.
2. Forming: The heated sheet is then draped over a mold, and a vacuum is applied to draw the sheet tightly against the mold's surface, replicating its exact contours, including any intricate undercuts.
3. Cooling & Demolding: Once cooled and solidified, the thermoformed part is removed from the mold.
4. CNC Milling for Precision: Post-forming, the component undergoes precision CNC milling. This crucial step is used to trim excess material, create precise cut-outs for light fixtures, mounting points, and to refine the undercuts that cannot be fully formed by vacuum alone or require exact tolerances. This ensures every part meets the exact specifications.

This integrated approach ensures high accuracy and consistency, critical for automotive lighting and other demanding transportation parts.

Benefits of Thermoformed Bus Rear Light Shuttering

Choosing thermoforming for your bus rear light components offers numerous advantages:

• Cost-Effectiveness: Lower tooling costs compared to injection molding, especially for large format thermoforming or lower production volumes.
• Design Flexibility: Ability to create complex geometries, including deep draws and intricate undercuts, allowing for innovative designs.
• Durability: Utilizes robust materials like ABS PMMA, ensuring longevity and resistance to environmental factors.
• Lightweight: Plastic components contribute to overall vehicle weight reduction, improving fuel efficiency.
• Rapid Prototyping & Production: Shorter lead times for both prototyping and full-scale production.
• Excellent Surface Finish: High-quality aesthetic finish, particularly with PMMA capping.
• Customization: Each part can be tailored to specific bus models and design requirements, offering truly custom thermoforming solutions.

Technical Specifications (Example)

Key Specifications for Bus Rear Light Shuttering

• Material: ABS PMMA (co-extruded sheet)
• Process: Vacuum Forming, 5-Axis CNC Milling
• Typical Wall Thickness: 3mm - 6mm (variable based on design)
• Tolerances: +/- 0.5mm (for CNC trimmed features)
• Surface Finish: High Gloss (PMMA cap), UV Stable, Scratch Resistant
• Features: Integrated Undercuts, Mounting Bosses, Recesses for Lighting Elements
• Color Options: Standard Black, White, or Custom Matched
• Industry Standards: Meets relevant automotive and transportation industry specifications.

Related Applications in Automotive & Transportation

Our expertise in plastic fabrication extends beyond bus rear light shuttering to a wide range of components for the automotive and transportation industries. Other applications include:

• Dashboards and Interior Trim: Custom thermoformed panels for vehicle interiors.
• Fender Liners and Wheel Wells: Durable protective components.
• Roof Fairings and Spoilers: Aerodynamic enhancements for trucks and buses.
• Engine Covers: Heat-resistant components for under-the-hood applications.
• Battery Enclosures: Protective casings for electric vehicle components.
• Specialty Vehicle Components: Parts for recreational vehicles, agricultural equipment, and construction machinery.

Each of these applications benefits from the same precision, material expertise, and cost-efficiency offered by our thermoforming and CNC milling capabilities.

Frequently Asked Questions about Thermoformed Automotive Parts

What are undercuts in thermoforming, and how are they achieved?

Undercuts are features in a part that extend beneath or behind other sections, making direct demolding difficult. In thermoforming, especially with vacuum forming, undercuts are typically achieved through specialized mold designs, such as split molds or side actions, or more commonly, through post-forming precision CNC milling. This allows for complex geometries that enhance functionality or aesthetics, like those seen in bus rear light shuttering.

Why is ABS PMMA a preferred material for exterior automotive parts?

ABS PMMA is highly preferred for exterior automotive parts due to its unique combination of properties. The PMMA layer provides excellent UV resistance, high gloss, and scratch resistance, ensuring the part maintains its aesthetic appeal over time. The ABS core offers superior impact strength and rigidity. This makes it a durable, weather-resistant, and aesthetically pleasing heat resistant thermoplastic material, ideal for components like rear light cladding.

What is the difference between thermoforming and injection molding for automotive components?

Both are plastic fabrication methods, but they differ significantly. Thermoforming (including vacuum forming) uses a heated plastic sheet draped over a single-sided mold, making it cost-effective for larger parts, lower volumes, and quicker tooling. Injection molding involves injecting molten plastic into a closed, two-part mold, suitable for high volumes, intricate small parts, and very tight tolerances. For large transportation parts like bus components, thermoforming often offers a more economical and flexible solution, especially for prototypes and medium production runs.

Can thermoformed parts be customized for specific bus models?

Absolutely. Custom thermoforming is a core strength of the process. Molds are created based on specific CAD designs for each bus model, allowing for precise fit and integration. This ensures that the shuttering rear light or tail light cladding perfectly matches the vehicle's design and functional requirements, including unique mounting points and aesthetic features.
