Vacuum Formed ABS PMMA Multi-Part Industrial Enclosure Solutions
In the demanding world of industrial machinery, reliable and aesthetically pleasing enclosures are paramount. At BTL Plastics, we specialize in providing advanced thermoforming solutions, particularly for industrial enclosures and equipment covers. Our expertise in vacuum forming, especially with high-performance materials like ABS PMMA, allows us to create intricate, durable, and functional plastic components designed for multi-part assembly. This page delves into the specifics of creating robust industrial enclosures using this versatile material and process.

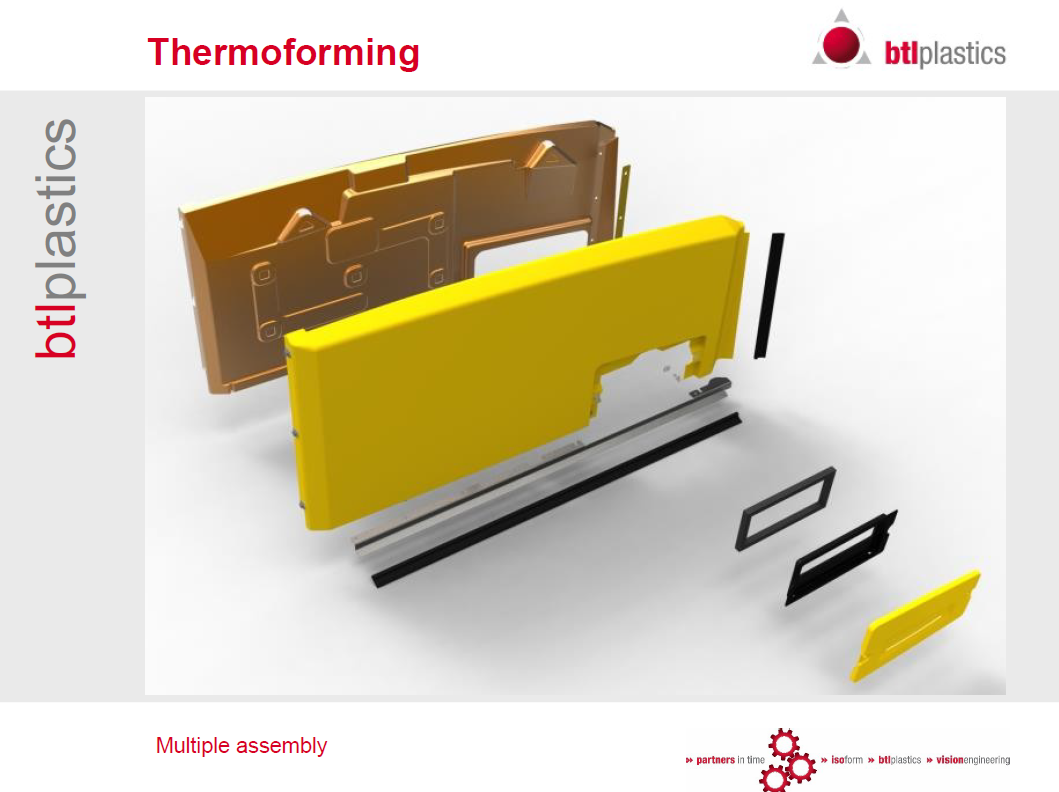

Figure 1: Example of a multi-part industrial enclosure, showcasing the precision and finish achievable with vacuum formed ABS PMMA.
Overview of ABS PMMA Industrial Enclosures
Industrial environments present unique challenges for equipment protection. Enclosures must withstand impacts, chemicals, UV exposure, and often provide an attractive finish. Our custom thermoforming capabilities address these needs directly. We focus on creating multi-part assembly enclosures, typically consisting of four vacuum formed parts that are meticulously joined together to form a complete, seamless unit. This approach offers superior design flexibility and allows for complex geometries that might be difficult or costly with other manufacturing methods.
The use of ABS PMMA as the primary material ensures both structural integrity and a premium surface finish. This material combination is particularly suited for applications requiring high aesthetic quality alongside robust performance, making it an ideal choice for machinery panels and covers.
Application Details: Protecting Your Industrial Equipment
Our vacuum formed ABS PMMA enclosures are engineered to protect sensitive industrial equipment across various sectors. These enclosures serve as vital protective barriers for:
- Machinery Control Panels: Providing a durable, easy-to-clean surface that protects internal electronics.
- Medical Device Housings: Offering hygienic and impact-resistant covers for sensitive medical equipment.
- Automated System Covers: Encasing robotic arms, sensors, and other automated components.
- Heavy Equipment Components: Custom-fit panels and covers for construction, agricultural, and specialized industrial machinery.
- Electronic Device Housings: Protecting circuit boards and delicate components from harsh environments.
The ability to create heavy gauge thermoforming parts ensures these enclosures can withstand significant operational stresses and environmental factors, contributing to the longevity and reliability of the enclosed machinery.
Materials Used: The Power of ABS PMMA
The choice of material is critical for any industrial application. For these multi-part enclosures, we leverage the exceptional properties of ABS PMMA. This co-extruded sheet combines the best attributes of two distinct polymers:
- ABS (Acrylonitrile Butadiene Styrene): Known for its excellent impact strength, rigidity, and chemical resistance. It provides the structural backbone of the enclosure.
- PMMA (Polymethyl Methacrylate): Often referred to as acrylic, PMMA offers superior UV resistance, scratch resistance, and a high-gloss, aesthetically pleasing surface finish. It also allows for vibrant, consistent color.
Together, ABS PMMA creates a material that is highly durable, resistant to outdoor elements, and maintains its appearance over time, making it superior to standard ABS for many outdoor or high-visibility applications. This composite material is processed efficiently using our PF1 series thermoforming machines, ensuring consistent quality and precision.
Process Description: From Sheet to Assembly
The creation of these multi-part industrial enclosures involves a precise and controlled plastic manufacturing process:
- Design & Tooling: Utilizing CAD software, detailed designs are created for each of the four individual parts, considering their eventual assembly. Molds (tooling) are then manufactured, often from aluminum, for optimal heat transfer and part consistency.
- Sheet Heating: A sheet of ABS PMMA is securely clamped into our PF1 series thermoforming machine. Radiant heaters are used to heat the plastic sheet evenly to its optimal forming temperature.
- Vacuum Forming: Once pliable, the heated sheet is draped over the mold. A vacuum is then applied, drawing the softened plastic tightly against the mold's surface, replicating its intricate details.
- Cooling & Trimming: The plastic is allowed to cool and solidify in contact with the mold. After cooling, the formed part is removed and excess material is trimmed using CNC routers for high precision.
- Finishing & Assembly: Each of the four vacuum formed parts undergoes any necessary secondary operations, such as drilling, routing, or adding inserts. Finally, the individual components are assembled into the complete enclosure using various methods like mechanical fasteners, adhesives, or ultrasonic welding, creating a robust and integrated plastic fabrication.
This multi-stage process ensures that each part fits perfectly, resulting in a strong and visually appealing final product.
Benefits of Vacuum Formed ABS PMMA Enclosures
Choosing vacuum formed ABS PMMA for your industrial enclosures offers a multitude of advantages:
- Durability & Impact Resistance: The ABS core provides excellent strength, protecting internal components from physical damage.
- Superior Aesthetics: The PMMA cap layer offers a high-gloss, scratch-resistant finish that can be colored to match specific branding or design requirements.
- UV & Weather Resistance: Ideal for outdoor or exposed applications, resisting fading and degradation from sunlight.
- Design Flexibility: Custom thermoforming allows for complex shapes, integrated features (like bosses or vents), and tight tolerances, even for heavy gauge thermoforming.
- Cost-Effectiveness for Prototyping & Medium Runs: Tooling costs are generally lower than injection molding, making it suitable for prototypes and production runs where injection molding might be prohibitively expensive.
- Reduced Weight: Plastic enclosures are significantly lighter than metal alternatives, simplifying installation and reducing shipping costs.
- Corrosion Resistance: Unlike metal, plastic does not rust or corrode, extending product lifespan in challenging environments.
Technical Specifications & Key Considerations
- Material: ABS PMMA (Co-extruded Sheet)
- Process: Vacuum Forming, Multi-Part Assembly
- Typical Sheet Thickness: 0.125" - 0.500" (3mm - 12.7mm) for heavy gauge applications
- Part Count: Typically 4 individual vacuum formed parts per assembly
- Finishing: High-gloss, UV-resistant, scratch-resistant surface
- Tolerances: Achievable within +/- 0.015" (0.38mm) depending on part geometry and material thickness
- Key Properties: High impact strength, excellent rigidity, UV stability, chemical resistance, aesthetic finish
- Equipment Series: Optimized for PF1 series thermoforming machines
Related Applications & Industries
The versatility of vacuum formed ABS PMMA and the multi-part assembly approach extends beyond industrial enclosures to a wide range of applications:
- Automotive: Interior and exterior trim, dashboard components, truck bed liners.
- Recreational Vehicles (RVs): Shower surrounds, interior panels, exterior body components.
- Agricultural Equipment: Tractor hoods, fender flares, control panel housings.
- Medical Equipment: Diagnostic machine covers, patient handling equipment components.
- Retail Displays: Durable and attractive point-of-purchase displays, kiosks.
Our expertise in Industrial and Machinery industries positions us as a leading partner for complex thermoformed plastics projects.
Frequently Asked Questions (FAQ)
What is ABS PMMA and why is it used for industrial enclosures?
ABS PMMA is a co-extruded plastic sheet combining ABS for strength and PMMA for a high-gloss, UV-resistant, and scratch-resistant surface. It's ideal for industrial enclosures due to its durability, aesthetic appeal, and ability to withstand harsh environments.
What are the benefits of a multi-part assembly for industrial enclosures?
Multi-part assemblies allow for greater design complexity, larger overall dimensions than a single-piece mold, easier integration of internal components, and simplified maintenance or replacement of individual sections. It also often reduces tooling costs compared to a single, very large or complex mold.
Can BTL Plastics create custom designs for my equipment enclosures?
Absolutely. Custom thermoforming is our specialty. We work closely with clients from concept to production to design and manufacture enclosures that precisely meet their specifications, aesthetic requirements, and functional needs. Our engineering team can assist with optimizing designs for manufacturability.
What is heavy gauge thermoforming?
Heavy gauge thermoforming refers to the process of forming plastic sheets typically 0.060 inches (1.5mm) or thicker. This technique is used to produce robust, rigid, and durable parts, often for structural components, industrial enclosures, and large equipment covers that require significant strength and impact resistance.
How does vacuum forming compare to injection molding for enclosures?
Vacuum forming generally has lower tooling costs and shorter lead times than injection molding, making it ideal for prototypes, lower to medium volume production, and larger parts. While injection molding offers higher precision for very small, intricate details and very high volumes, vacuum forming excels in producing large, durable, and aesthetically pleasing enclosures with excellent surface finishes at a more economical price point for many industrial applications.
Partner with BTL Plastics for Your Enclosure Needs
At BTL Plastics, we are committed to delivering high-quality, custom thermoformed plastics solutions. Our expertise in vacuum forming ABS PMMA for multi-part assembly industrial enclosures ensures you receive products that are not only functional and durable but also enhance the aesthetics of your equipment. Contact us today to discuss your next project and discover the advantages of working with a leader in plastic manufacturing.
