Thermoformed Baler Machine Panels: Durable Twin-Sheet Solutions for Agriculture

Explore the innovative world of thermoforming for agricultural machinery, focusing on robust and lightweight baler machine panels. Learn how advanced techniques like twin-sheet forming are revolutionizing the design and manufacture of heavy equipment components, offering superior performance and cost-effectiveness.

Figure 1: A complex baler machine panel manufactured using twin-sheet thermoforming, demonstrating intricate design capabilities and robust construction.

Overview: The Power of Thermoforming in Agricultural Machinery

The agricultural sector demands equipment that is not only powerful and efficient but also incredibly durable and resistant to harsh environmental conditions. Traditional materials often fall short in balancing weight, cost, and longevity. This is where advanced plastic manufacturing processes like thermoforming, particularly twin-sheet forming, offer a compelling solution for creating high-performance agricultural machinery components.

From protective shrouds to intricate internal structures, thermoformed plastics are increasingly replacing metal and fiberglass in applications such as baler machine parts. These plastic enclosures provide excellent impact resistance, weatherproofing, and design flexibility, making them ideal for the demanding environment of a farm. Machinecraft specializes in providing comprehensive solutions, from vacuum forming machines to precision tooling, to bring these innovative designs to life.

Application Details: Baler Machine Panels

Baler machines, essential for harvesting and packaging crops, require components that can withstand constant vibration, dust, moisture, and UV exposure. Thermoformed baler machine panels are specifically engineered to meet these challenges. These panels serve various functions, including:

• Protective Enclosures: Shielding sensitive internal mechanisms from debris, weather, and accidental impact.
• Aerodynamic Shrouds: Optimizing airflow for cooling and reducing drag.
• Operator Consoles & Covers: Ergonomic and aesthetically pleasing interfaces.
• Structural Components: Providing lightweight yet rigid support.

The use of custom thermoforming allows manufacturers to create parts precisely tailored to specific baler models, including popular brands like CLAAS balers, ensuring a perfect fit and optimal performance. This approach enables complex geometries and integrated features that would be costly or impossible with other manufacturing methods.

Materials Used for Agricultural Components

Selecting the right material is crucial for the longevity and performance of industrial plastics in agriculture. For baler machine panels and similar applications, materials are chosen for their specific properties:

• ABS Plastic (Acrylonitrile Butadiene Styrene): Known for its excellent impact resistance, rigidity, and ability to be easily thermoformed. It offers a good balance of strength and cost-effectiveness.
• HDPE Plastic (High-Density Polyethylene): Valued for its outstanding chemical resistance, high strength-to-density ratio, and weather resistance. HDPE is particularly effective in environments exposed to moisture and agricultural chemicals.
• UV-Stabilized Grades: Many thermoforming plastics are available with UV stabilizers to prevent degradation and discoloration from prolonged sun exposure, crucial for outdoor agricultural equipment.
• Flame-Retardant Options: For components requiring enhanced safety, flame-retardant grades can be utilized.

These materials contribute to creating weather resistant panels that maintain their integrity and appearance over many seasons.

Process Description: Twin-Sheet Forming & Gluing

The production of advanced baler machine panels often leverages the sophisticated technique of twin-sheet forming, a specialized type of vacuum forming.

What is Twin-Sheet Thermoforming?

Twin-sheet thermoforming involves simultaneously heating two separate plastic sheets, forming them over male and female molds, and then pressing them together while still hot. This process creates a hollow, often ribbed, structure that is significantly stronger and lighter than a single-sheet part of comparable size. The result is a part with two finished surfaces and internal features, ideal for creating strong, lightweight enclosures or structural components.

The Gluing Process

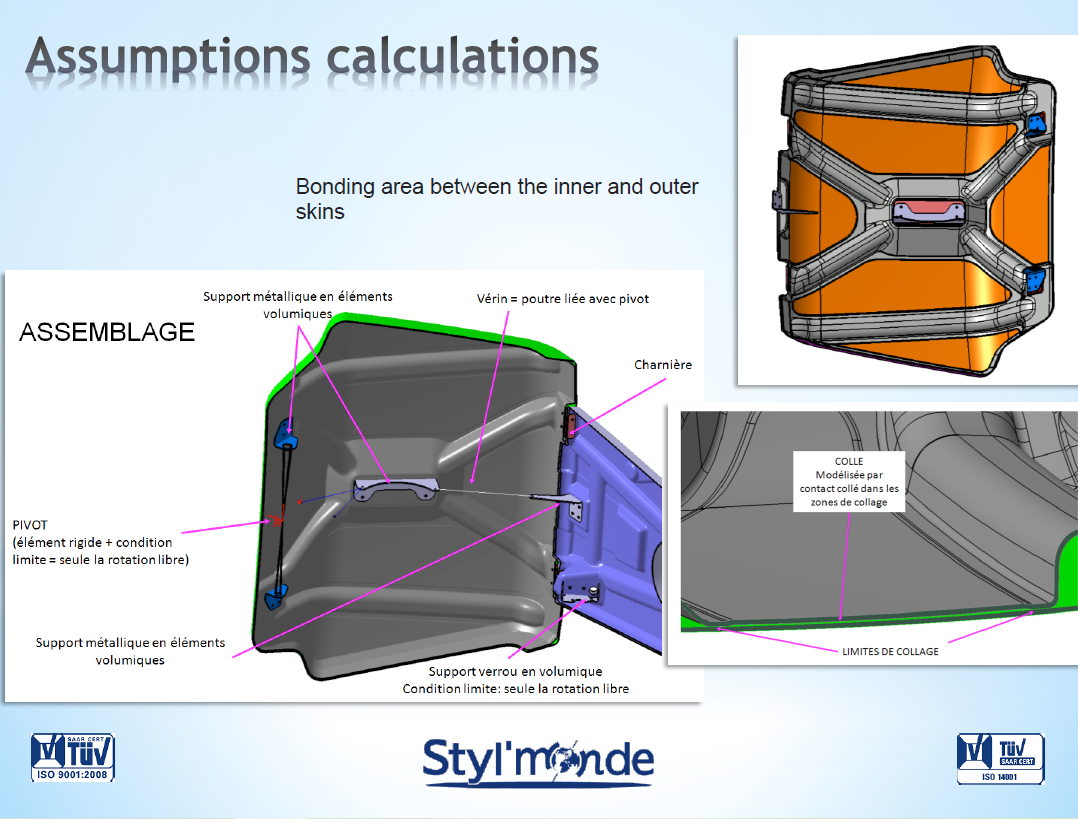

After the twin-sheet forming, a precise gluing process is often employed to permanently bond the two formed sheets, especially around edges or specific internal points where additional strength or sealing is required. This ensures a robust, sealed unit capable of withstanding the rigors of agricultural use. The combination of twin-sheet forming and gluing allows for:

• Creation of complex, hollow parts with internal channels or ribs.
• Superior strength-to-weight ratio compared to single-sheet parts.
• Integration of mounting points, inserts, and other features.
• Excellent thermal and acoustic insulation properties.

Benefits of Thermoformed Baler Panels

Utilizing thermoforming for baler machine parts offers numerous advantages for manufacturers and end-users:

• Durability & Impact Resistance: Plastics like ABS and HDPE provide excellent protection against impacts, abrasions, and environmental stressors.
• Weight Reduction: Significantly lighter than metal alternatives, contributing to fuel efficiency and reduced wear on the overall machinery.
• Corrosion & Weather Resistance: Inherently resistant to rust, moisture, and many agricultural chemicals, ensuring a longer lifespan.
• Design Flexibility: Allows for complex geometries, integrated features (e.g., vents, mounting points), and aesthetic finishes. This is particularly beneficial for large format thermoforming.
• Cost-Effectiveness: Lower tooling costs compared to injection molding, making it suitable for medium-volume production runs and prototypes.
• UV Stability: Materials can be formulated to resist degradation from prolonged sun exposure.
• Reduced Noise & Vibration: Plastic components can help dampen operational noise and vibration.

Technical Specifications for Baler Machine Panels

When considering thermoformed solutions for agricultural equipment, key specifications include:

• Material Thickness: Typically ranges from 0.125" to 0.500" (3mm to 12.7mm) depending on structural requirements and part size.
• Part Dimensions: Capable of producing very large components, often exceeding 10 feet in length, suitable for various heavy equipment applications.
• Surface Finish: Available in a range of textures, from smooth to highly textured, and can be color-matched to brand specifications.
• Tolerances: Standard thermoforming tolerances are generally +/- 0.030" to 0.060" (0.75mm to 1.5mm), with tighter tolerances achievable for critical features.
• Integrated Features: Ability to incorporate undercuts, ribs, bosses, and molded-in graphics.
• Assembly: Designed for seamless integration with other machine components, often including pre-drilled holes or molded-in inserts for fasteners.

Related Agricultural Applications

The versatility of thermoforming extends beyond baler panels to a wide array of agricultural equipment shrouds and components:

• Tractor hoods and fenders
• Combine harvester panels
• Planter and sprayer covers
• Seed hoppers and tanks
• ATV/UTV body panels for farm use
• Dairy equipment enclosures
• Irrigation system components

These applications all benefit from the durability, lightweight nature, and design flexibility offered by custom thermoforming.

Frequently Asked Questions (FAQ) about Thermoformed Baler Panels

What is twin-sheet thermoforming, and why is it used for baler panels?

Twin-sheet thermoforming is a process where two sheets of plastic are simultaneously heated, formed over molds, and then fused together while hot. It's used for baler panels because it creates strong, lightweight, hollow parts with two finished surfaces and the ability to integrate internal structures, offering superior rigidity and insulation compared to single-sheet parts.

What are the primary benefits of using plastic for agricultural machinery components?

Plastic components offer significant advantages such as reduced weight (improving fuel efficiency), excellent corrosion and weather resistance, high impact strength, design flexibility for complex shapes, and often lower tooling costs compared to metal fabrication.

Can thermoformed baler panels withstand harsh outdoor conditions?

Yes, materials like HDPE and UV-stabilized ABS are specifically chosen for their ability to withstand harsh outdoor conditions, including extreme temperatures, moisture, UV radiation, and exposure to agricultural chemicals. They are designed to be highly durable and weather resistant.

Is custom thermoforming available for specific baler models like CLAAS?

Absolutely. Custom thermoforming is ideal for creating parts tailored to specific machinery, including various CLAAS baler models. This allows for precise fitment, brand-specific aesthetics, and optimized functionality without the high tooling costs associated with other plastic manufacturing methods.
