Thermoformed Car Mats & Trunk Liners: Durable Auto Flooring Solutions

Overview: The Power of Thermoforming in Automotive Interiors

In the demanding world of automotive manufacturing, durability, precision, and cost-effectiveness are paramount. When it comes to interior components like car mats and trunk liners, thermoforming stands out as a superior manufacturing process. This versatile technique allows for the creation of robust, custom-fit, and aesthetically pleasing solutions that protect vehicle interiors from wear, tear, and spills.

From passenger vehicles to heavy-duty trucks, thermoformed plastics offer an ideal balance of strength, flexibility, and lightweight properties. Unlike traditional carpet mats, thermoformed options provide a seamless, easy-to-clean surface that can withstand harsh conditions, making them a popular choice for modern vehicles. This guide delves into the specifics of how thermoforming revolutionizes the production of high-quality automotive mats and other interior components.

Application Details: Custom Protection for Every Vehicle

Thermoformed car mats and trunk liners are not just accessories; they are essential protective components designed to preserve the longevity and appearance of a vehicle's interior. These products are engineered to fit the precise contours of a car's floor pan and trunk space, offering comprehensive coverage against dirt, mud, snow, water, and chemicals.

• Custom Car Mats: Tailored to specific vehicle models, these mats feature raised edges and channels to trap debris and liquids, preventing them from reaching the underlying carpet. They offer a superior fit compared to universal mats.
• Trunk Liners: Providing full coverage for the cargo area, trunk liners protect against spills from groceries, sports equipment, or tools. Their robust construction ensures they can handle heavy loads and resist punctures or tears.
• Automotive Interior Panels: Beyond mats, thermoforming is also used for various other automotive interior components, including door panels, seat backs, and console trays, showcasing its adaptability.

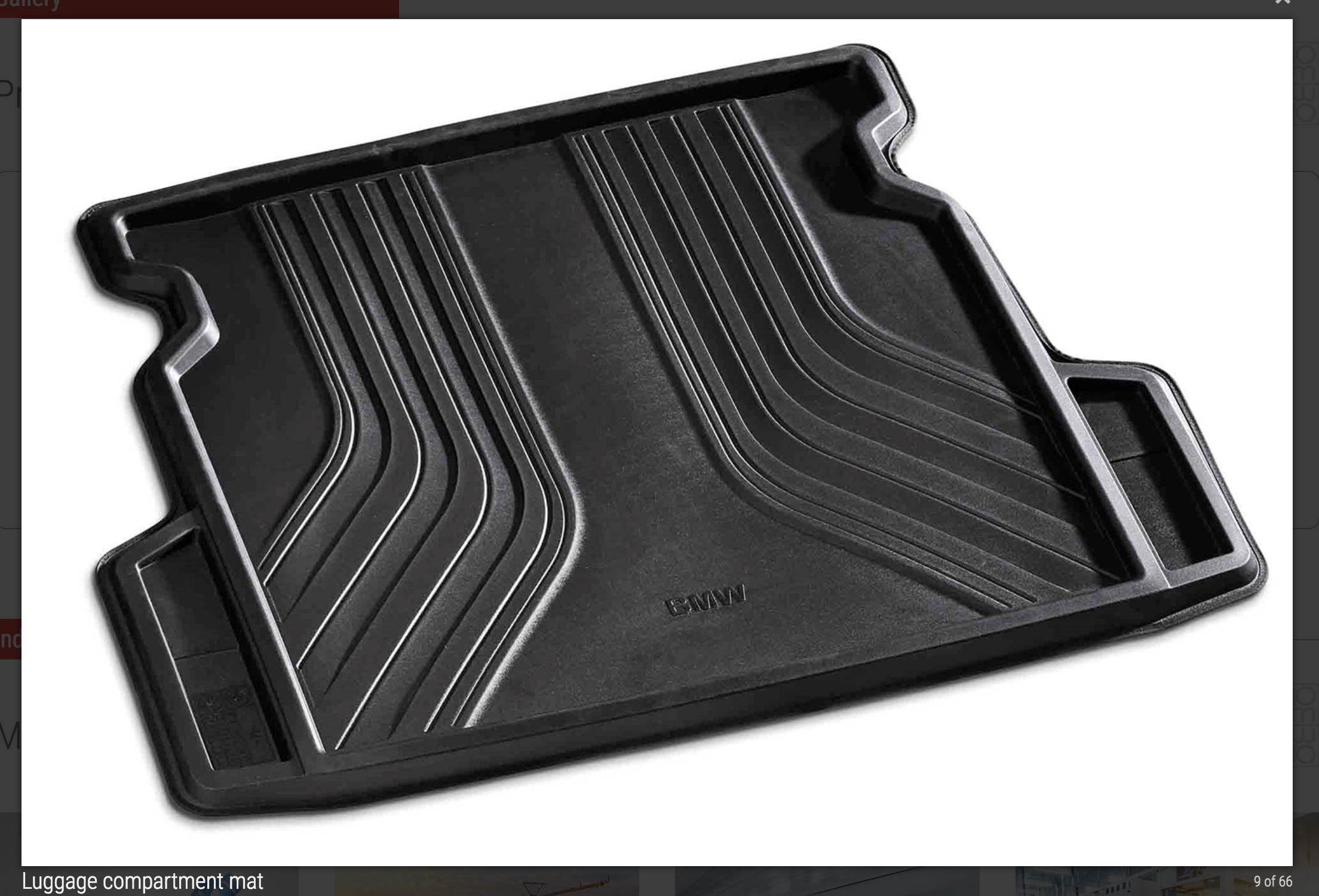

The ability to achieve complex geometries and deep draws makes deep draw thermoforming particularly well-suited for creating the intricate shapes required for these applications. The image below (Figure 1) illustrates a typical 3D thermoformed car mat, highlighting its precise fit and protective design.

Materials Used: Selecting the Right Plastic for Durability

The choice of material is crucial for the performance and longevity of plastic mats and liners. Thermoforming offers flexibility in material selection, allowing manufacturers to choose plastics with specific properties tailored to automotive demands. Key materials include:

• HDPE (High-Density Polyethylene): Known for its excellent chemical resistance, impact strength, and rigidity. HDPE floor mats are durable and resistant to many automotive fluids.
• TPO (Thermoplastic Olefin): A blend of polypropylene and rubber, TPO offers a balance of flexibility, impact resistance, and good aesthetic qualities. It's often chosen for its soft-touch feel and UV stability, making it ideal for visible interior components.
• Polypropylene (PP): Lightweight, cost-effective, and resistant to fatigue. Polypropylene is a common choice for various automotive applications due to its good mechanical properties and recyclability.

These materials are selected for their ability to withstand extreme temperatures, resist abrasion, and maintain their structural integrity over years of use.

Process Description: How Thermoforming Creates Precision Mats

The manufacturing of thermoformed car mats and trunk liners primarily utilizes vacuum forming, a specific type of thermoforming. The process involves several key steps:

1. Sheet Heating: A plastic sheet (e.g., HDPE, TPO, or polypropylene) is clamped into a frame and heated to its softening point, becoming pliable.
2. Mold Placement: The softened plastic sheet is then draped over or into a custom mold, which defines the final shape of the mat or liner.
3. Vacuum Application: A vacuum is applied through small holes in the mold, drawing the softened plastic tightly against the mold's surface. This ensures precise replication of the mold's intricate details, including raised edges and textured surfaces. This step is critical for achieving the custom fit required for automotive components.
4. Cooling: Once formed, the plastic is allowed to cool and solidify in the mold.
5. Trimming: The cooled part is then removed from the mold, and any excess material (flash) is trimmed away, often using CNC routing for high precision.

Advanced thermoforming machines, such as Machinecraft's ATF Series, are designed to handle the complexities of deep draw thermoforming, enabling the production of mats with significant depth and intricate 3D contours required for a perfect fit in vehicle interiors.

Benefits of Thermoformed Automotive Mats

Opting for thermoformed car mats and trunk liners offers numerous advantages for both manufacturers and end-users:

• Exceptional Durability: Resistant to wear, tear, impacts, and chemicals, ensuring a long lifespan.
• Custom Fit & Aesthetics: Precisely molded to vehicle contours, providing a factory-installed look and superior protection.
• Easy Maintenance: Non-porous surfaces are simple to clean, requiring just a wipe down or rinse.
• Lightweight: Contributes minimally to vehicle weight, potentially aiding fuel efficiency.
• Cost-Effective Production: Thermoforming is an efficient process for medium to high-volume production, offering good tooling costs compared to injection molding for large parts.
• Enhanced Safety: Many designs incorporate anti-slip surfaces and secure fastening points to prevent movement during driving.
• Environmental Considerations: Many thermoformable plastics are recyclable, aligning with sustainability goals in the automotive industry.

Technical Specifications: Key Considerations

When designing or specifying thermoformed automotive components, several technical aspects are crucial:

• Material Thickness: Typically ranges from 1.5mm to 6mm, depending on desired rigidity and application.
• Draw Ratio: The depth of the draw relative to the sheet size, critical for deep-contoured mats.
• Surface Finish: Can be smooth, textured (e.g., anti-slip patterns), or incorporate specific grain patterns.
• Dimensional Tolerance: Tight tolerances (e.g., ±0.5mm to ±1.5mm) are essential for a perfect fit within the vehicle.
• UV Stability: Especially for visible interior parts, materials must resist fading and degradation from sunlight.
• Chemical Resistance: Ability to withstand exposure to oil, grease, cleaning agents, and other automotive fluids.
• Temperature Range: Performance across a wide range of operating temperatures (e.g., -40°C to 80°C).

Related Applications: Expanding Thermoforming in Automotive

The versatility of thermoforming extends far beyond just car mats and trunk liners within the automotive industry. Other significant applications include:

• Fender Liners: Protecting wheel wells from debris and corrosion.
• Underbody Shields: Enhancing aerodynamics and protecting chassis components.
• Engine Covers: Aesthetic and protective covers for engine bays.
• Cargo Management Systems: Inserts and organizers for trunk and cargo areas.
• HVAC Ducts: Complex air delivery systems within the vehicle.

These diverse applications underscore thermoforming's role as a foundational technology for modern vehicle manufacturing, delivering both functional and aesthetic benefits.

Frequently Asked Questions About Thermoformed Car Mats

What are thermoformed car mats?

Thermoformed car mats are custom-fit floor mats and trunk liners made from plastic sheets (like HDPE, TPO, or polypropylene) that are heated and then vacuum-formed over a mold to create precise, durable, and protective shapes for vehicle interiors.

What are the main benefits of thermoformed trunk liners?

Thermoformed trunk liners offer superior protection against spills, dirt, and wear compared to carpet liners. They are custom-fit, easy to clean, highly durable, and resistant to chemicals, preserving the vehicle's cargo area.

What materials are used for thermoformed automotive mats?

Common materials include HDPE (High-Density Polyethylene) for rigidity and chemical resistance, TPO (Thermoplastic Olefin) for flexibility and aesthetic appeal, and Polypropylene (PP) for its lightweight and cost-effectiveness.

Is thermoforming suitable for custom car mats?

Yes, thermoforming, especially vacuum forming and deep draw thermoforming, is ideal for creating custom car mats. It allows for precise replication of complex vehicle floor contours, ensuring a perfect, snug fit for specific make and model vehicles.

How does thermoforming compare to injection molding for automotive interior components?

Thermoforming generally has lower tooling costs and faster prototyping times than injection molding, making it more economical for medium-volume production or very large parts like trunk liners. While injection molding offers higher precision for very small, intricate parts, thermoforming excels at large, complex shapes with good dimensional stability required for mats and liners.
